System Diagram
Component Connector End Views

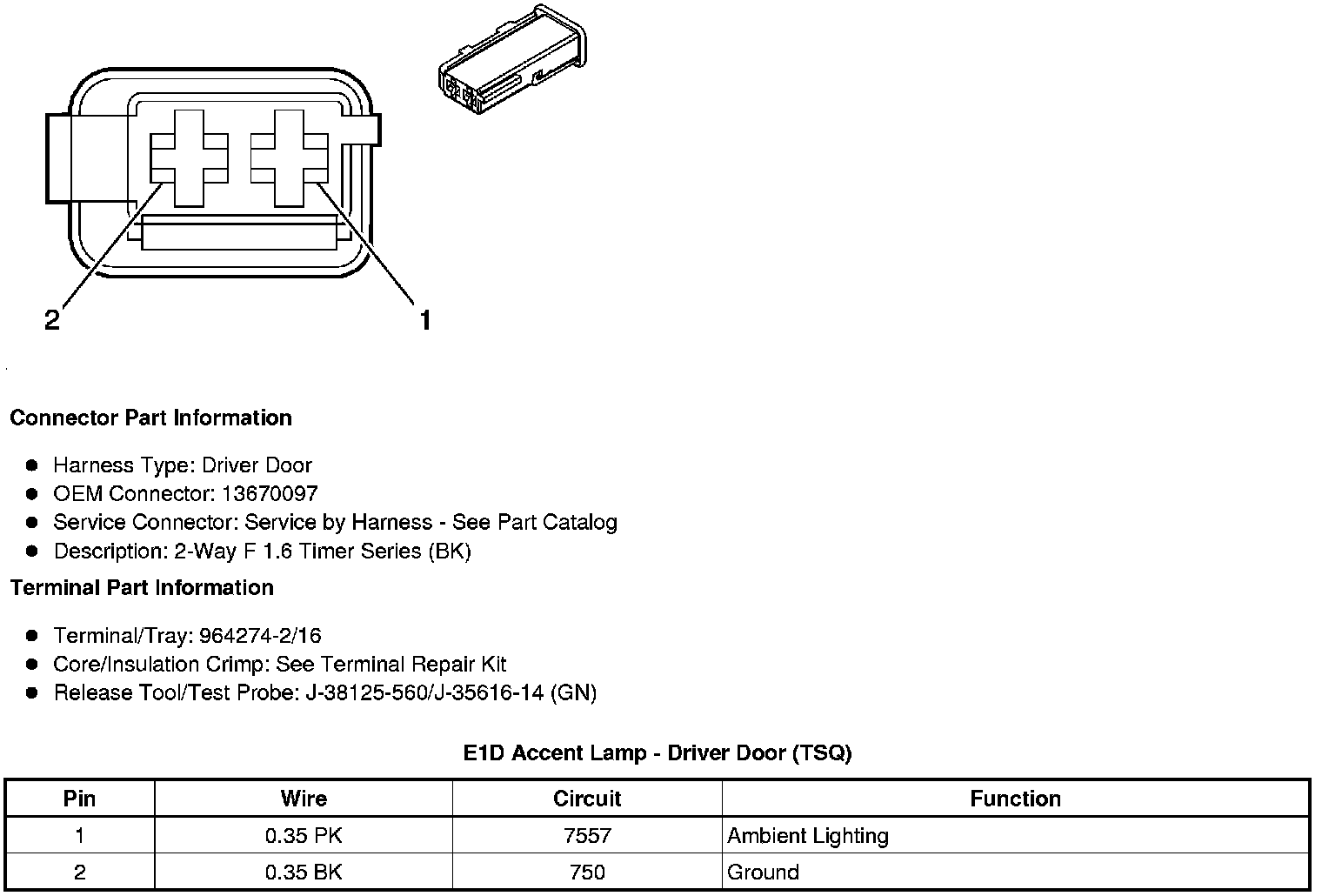

E1D Accent Lamp - Driver Door (TSQ)

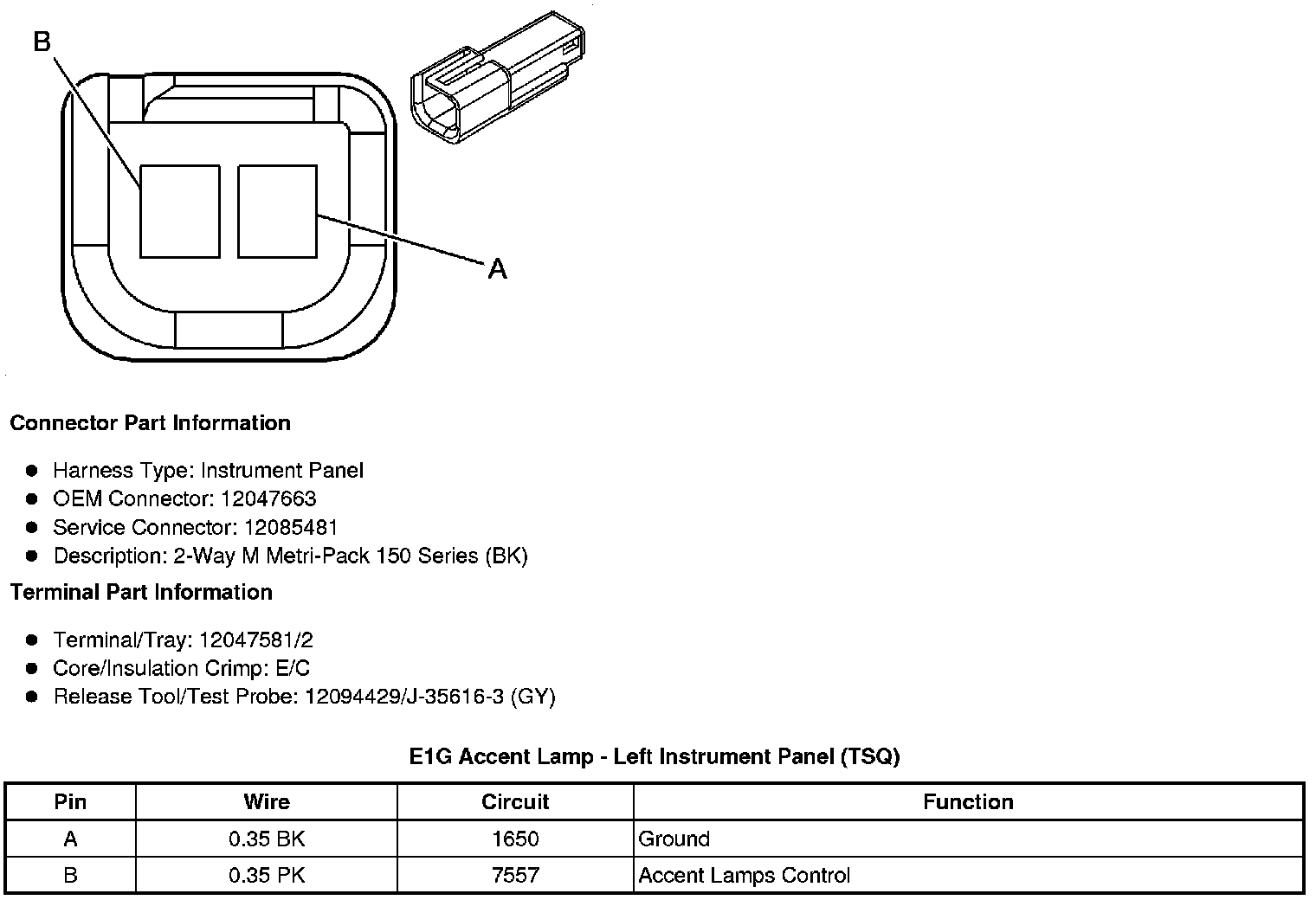

E1G Accent Lamp - Left Instrument Panel (TSQ)
E1H Accent Lamp - Right Instrument Panel (TSQ)
E1J Accent Lamp - Left Lower Instrument Panel (TSQ)
E1K Accent Lamp - Right Lower Instrument Panel (EAL)

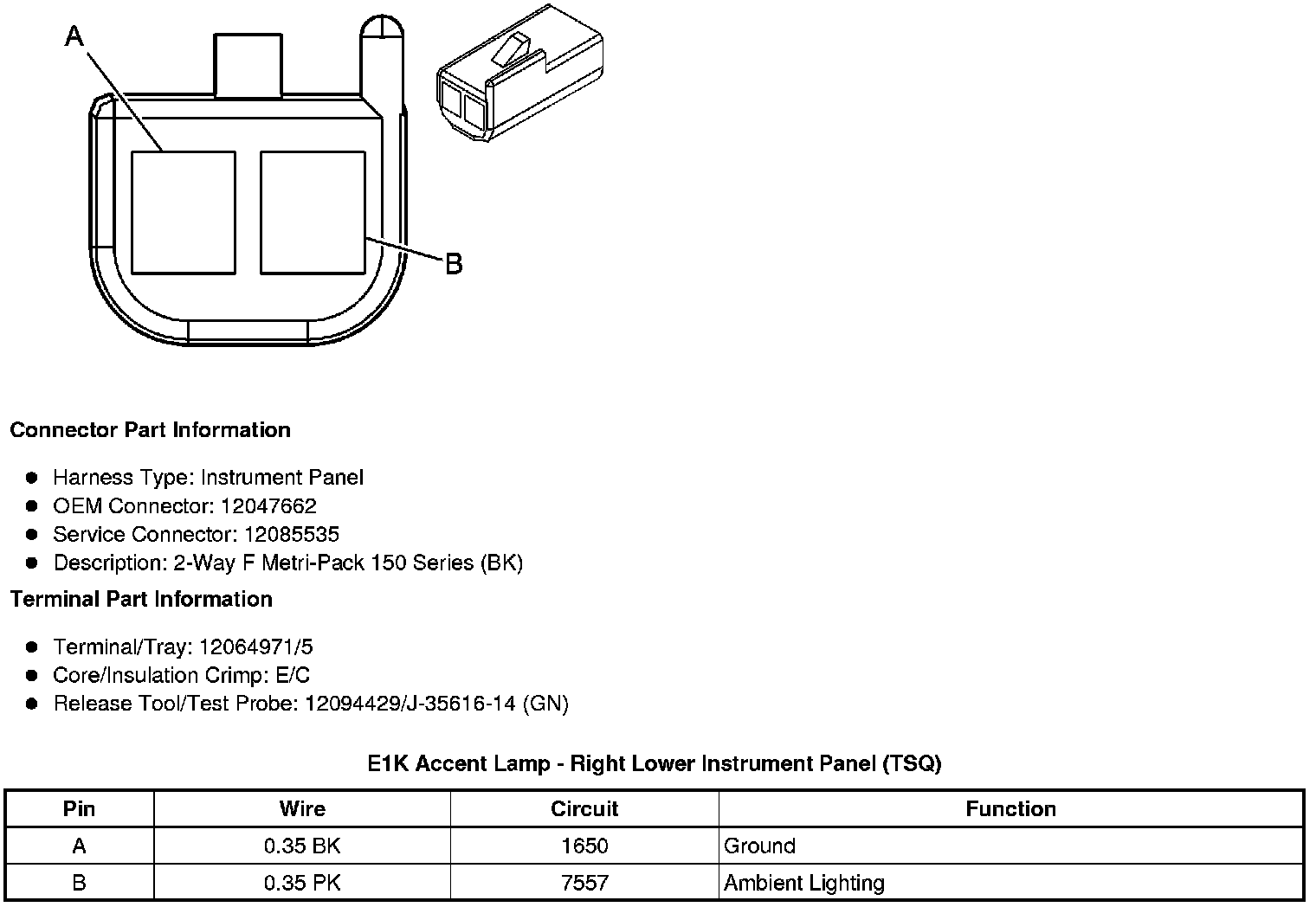

E1K Accent Lamp - Right Lower Instrument Panel (TSQ)

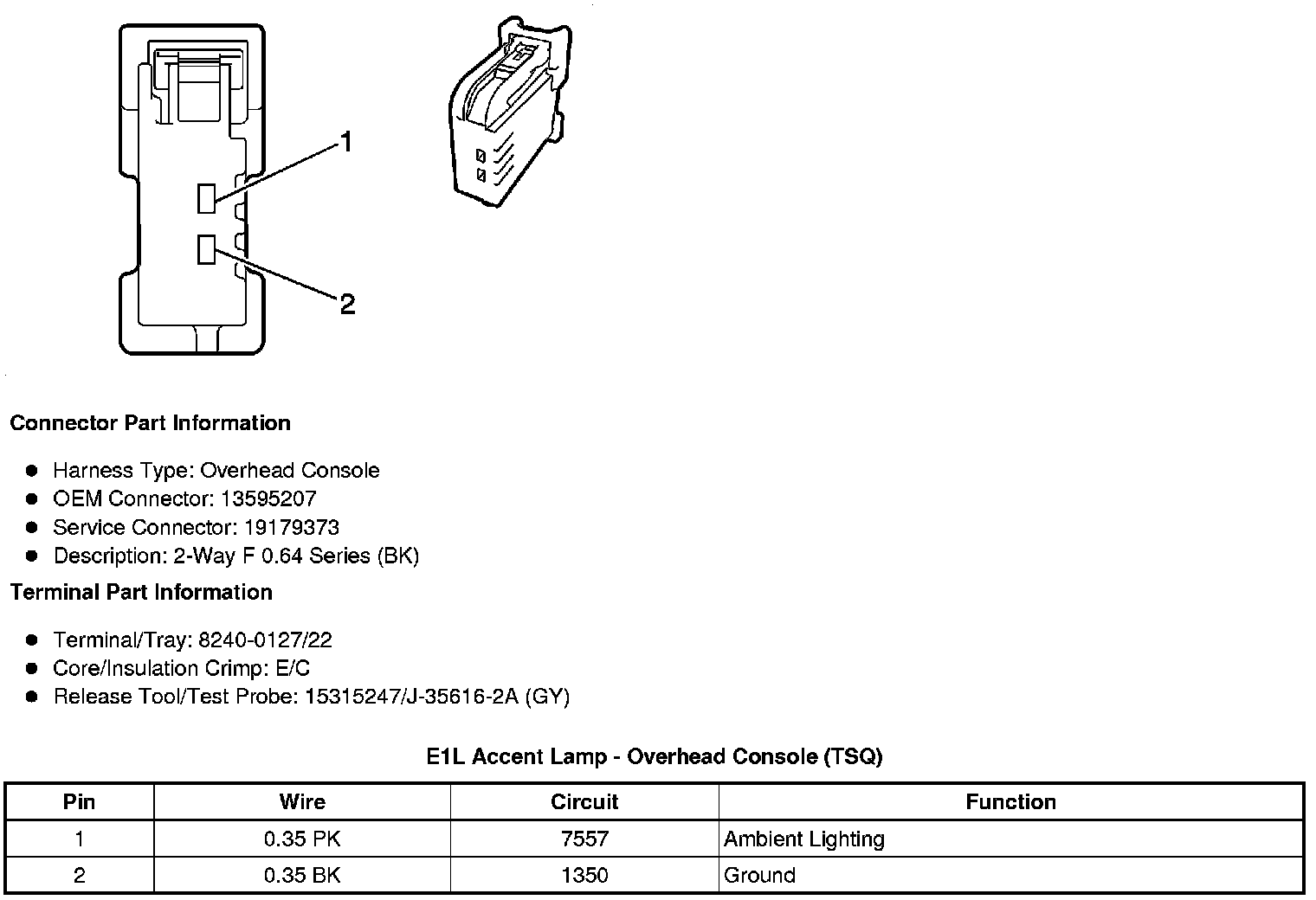

E1L Accent Lamp - Overhead Console (TSQ)
E1LR Accent Lamp - Left Rear Door (TSQ)
E1P Accent Lamp - Passenger Door (TSQ)

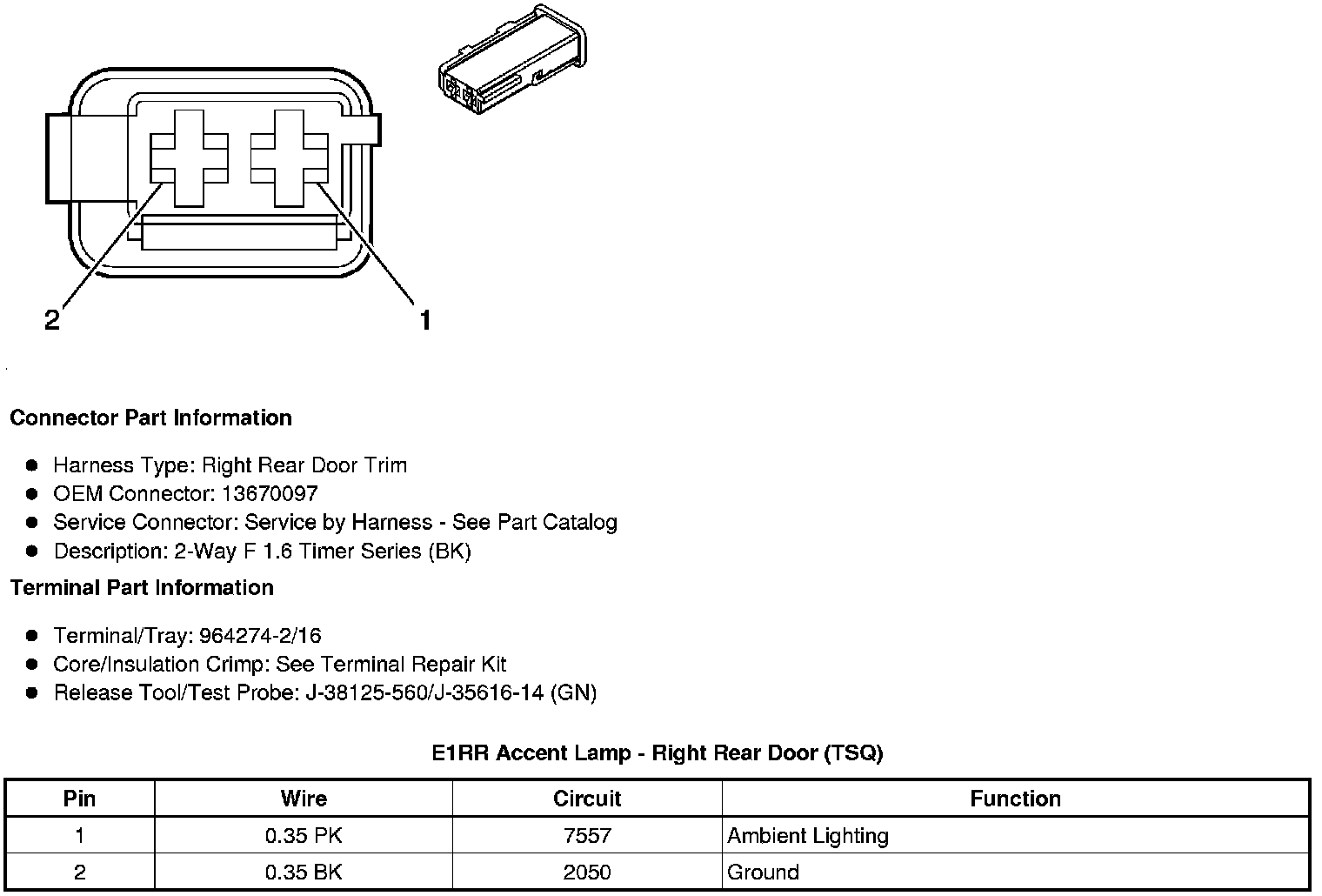

E1RR Accent Lamp - Right Rear Door (TSQ)

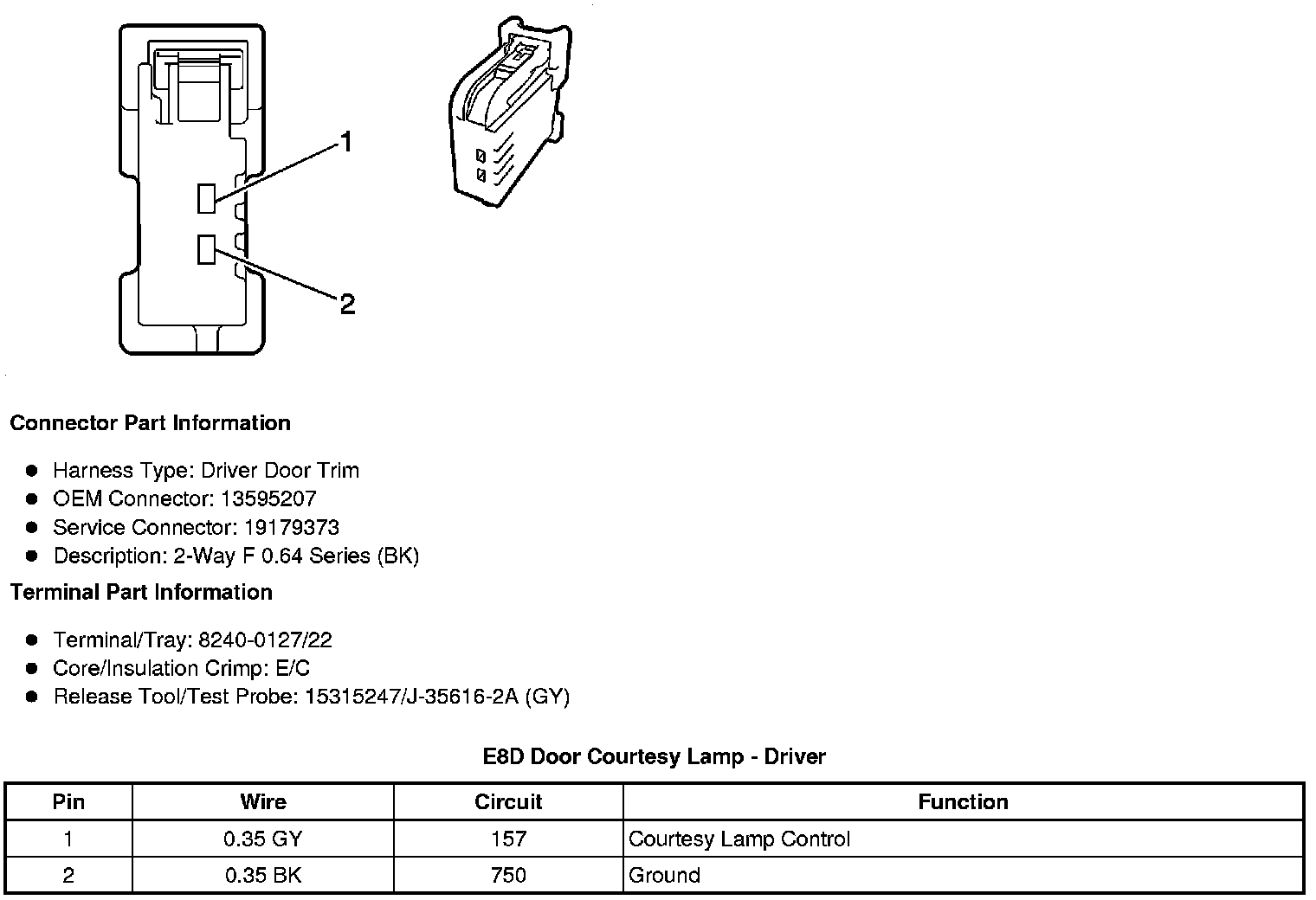

E8D Door Courtesy Lamp - Driver

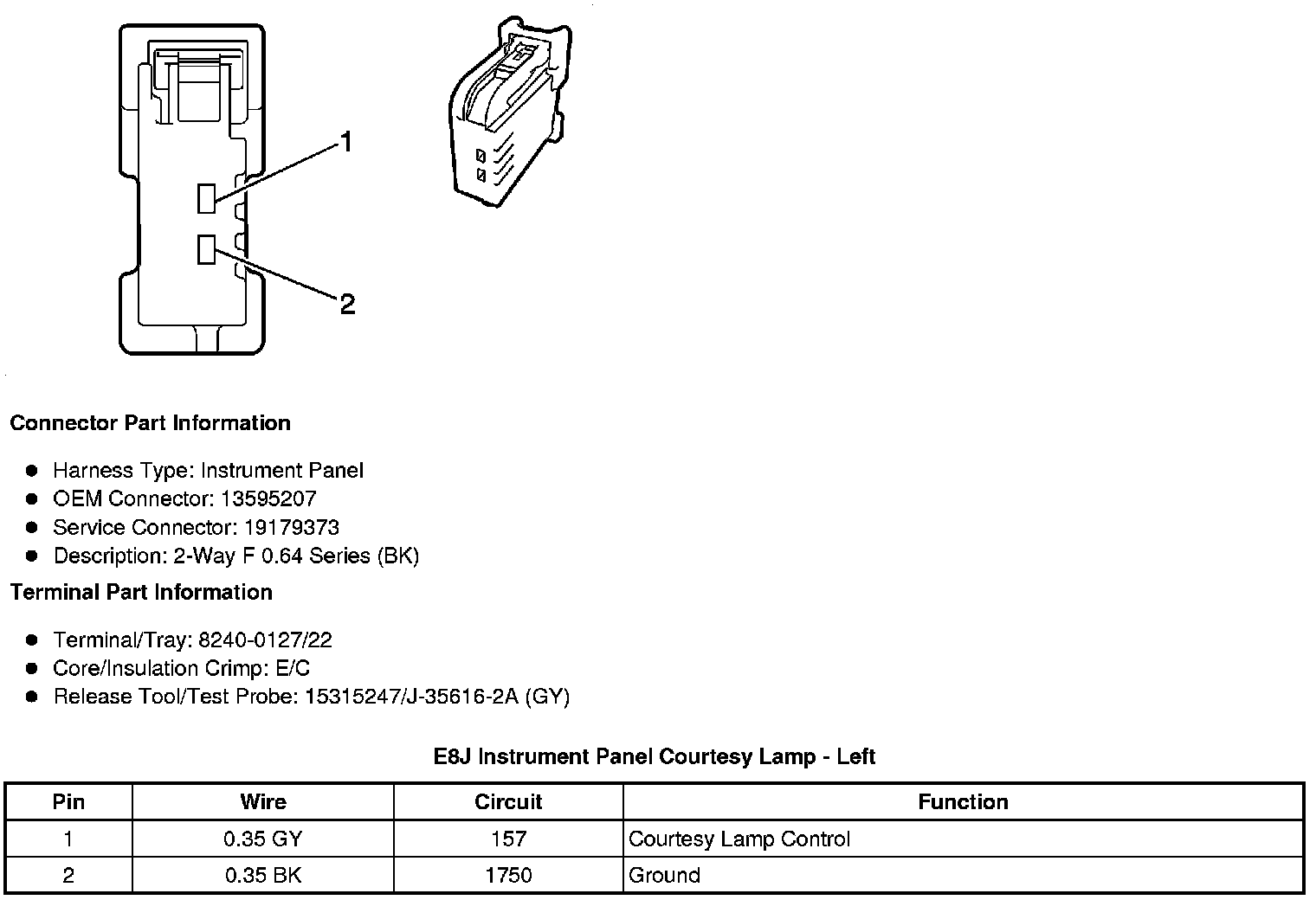

E8J Instrument Panel Courtesy Lamp - Left

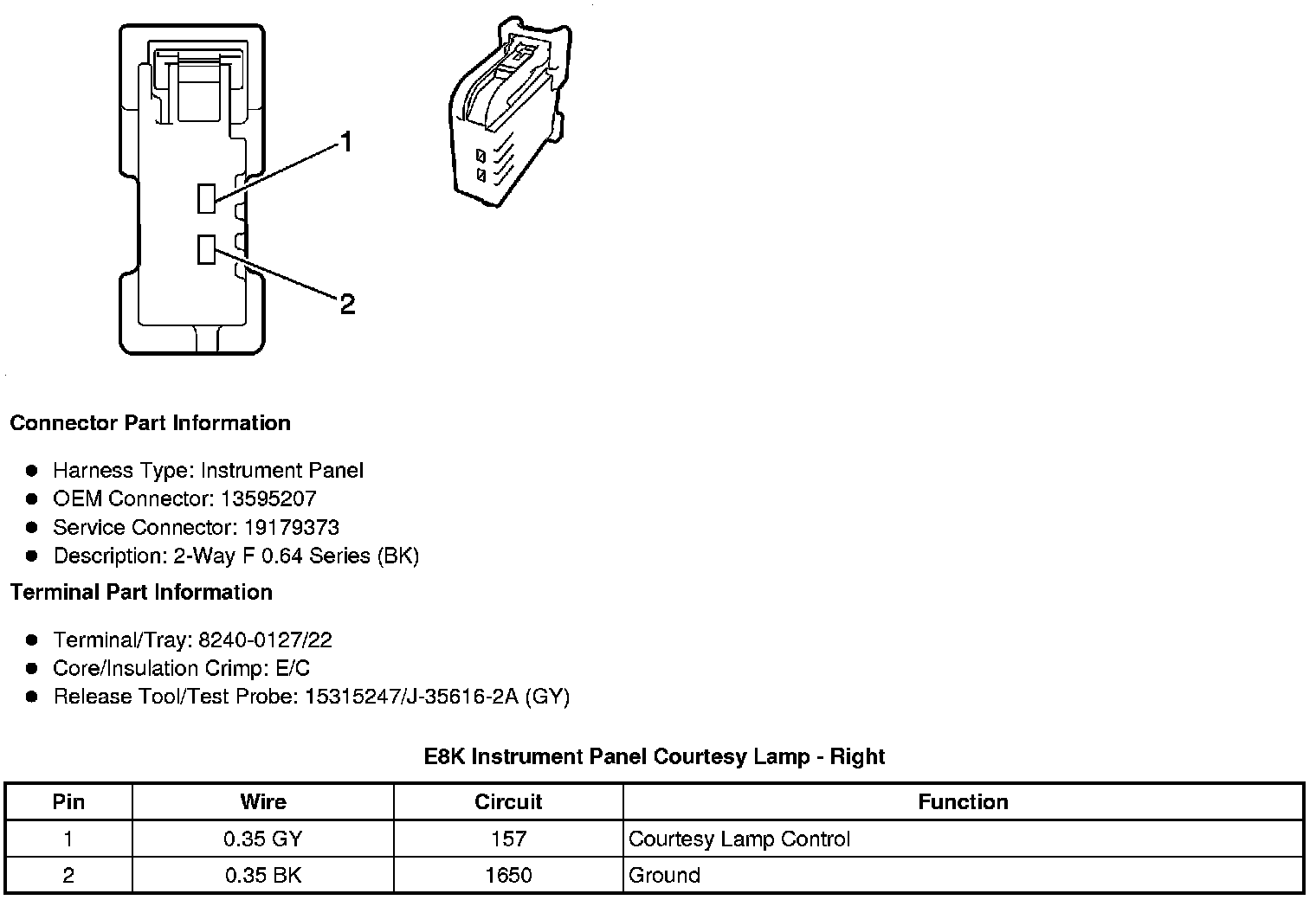

E8K Instrument Panel Courtesy Lamp - Right
E8L Liftgate Courtesy Lamp
E8LR Door Courtesy Lamp - Left Rear
E8P Door Courtesy Lamp - Passenger

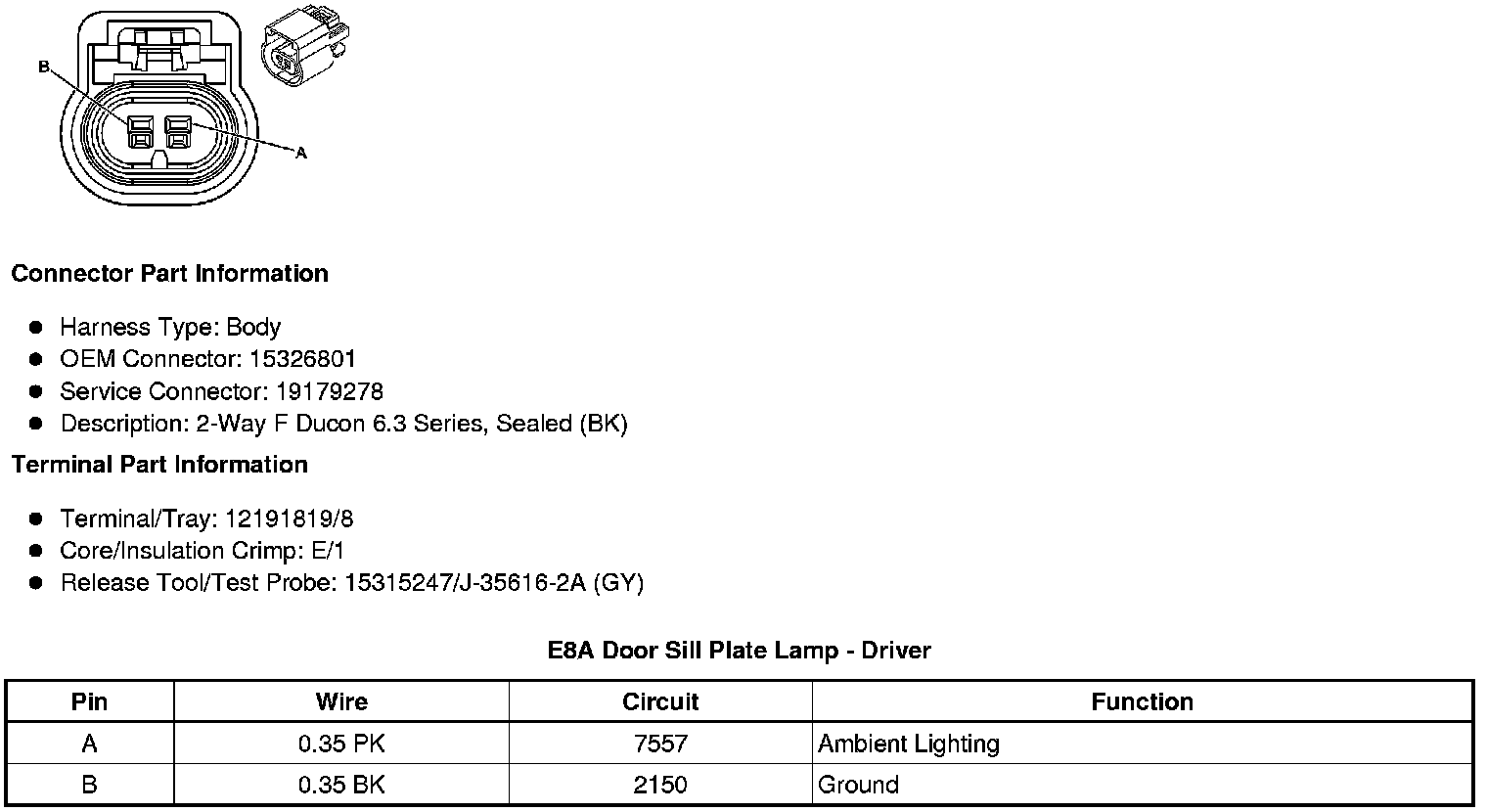

E8A Door Sill Plate Lamp - Driver

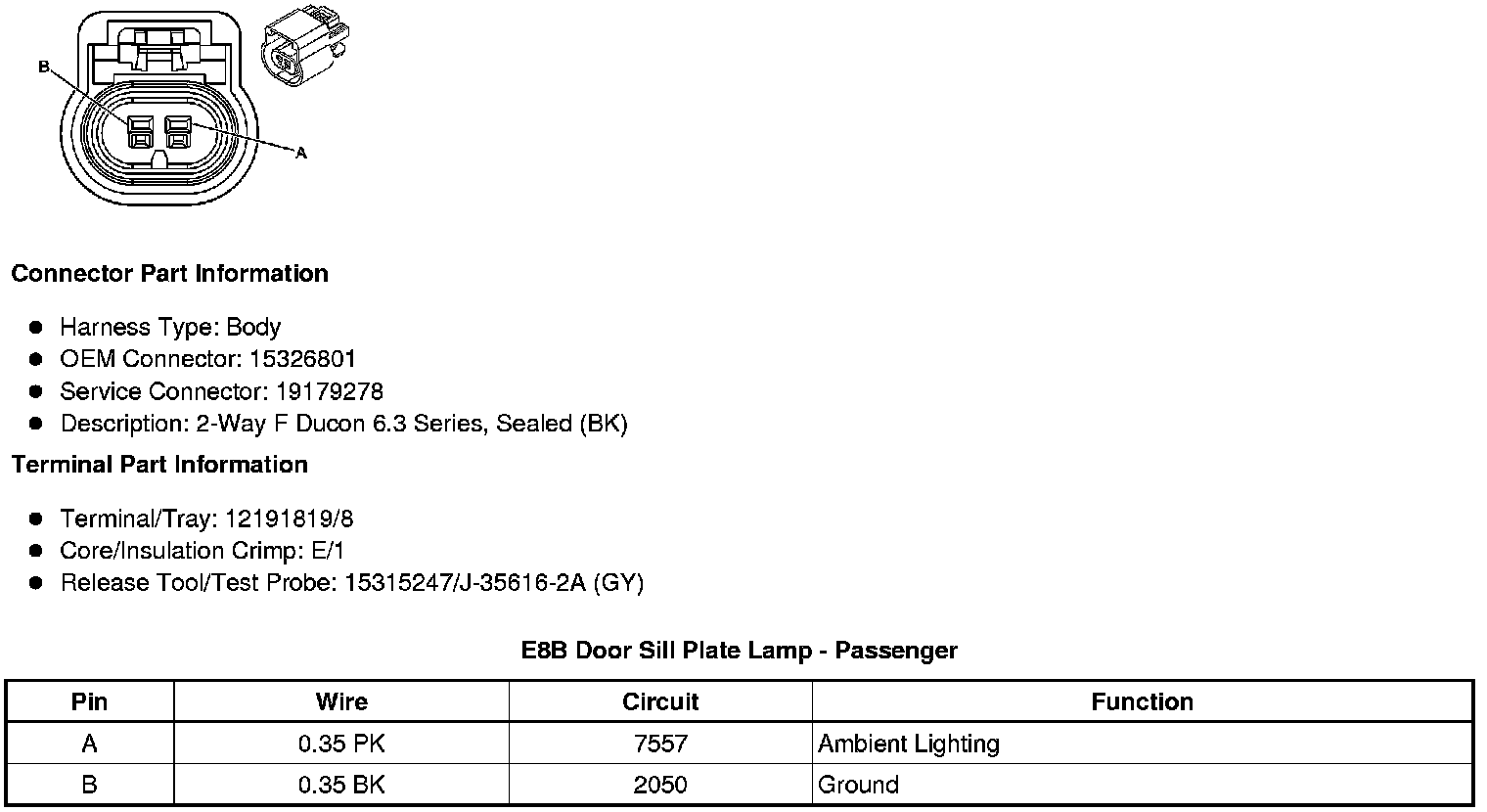

E8B Door Sill Plate Lamp - Passenger
