Driver/Vehicle Information Display
Component Connector End Views

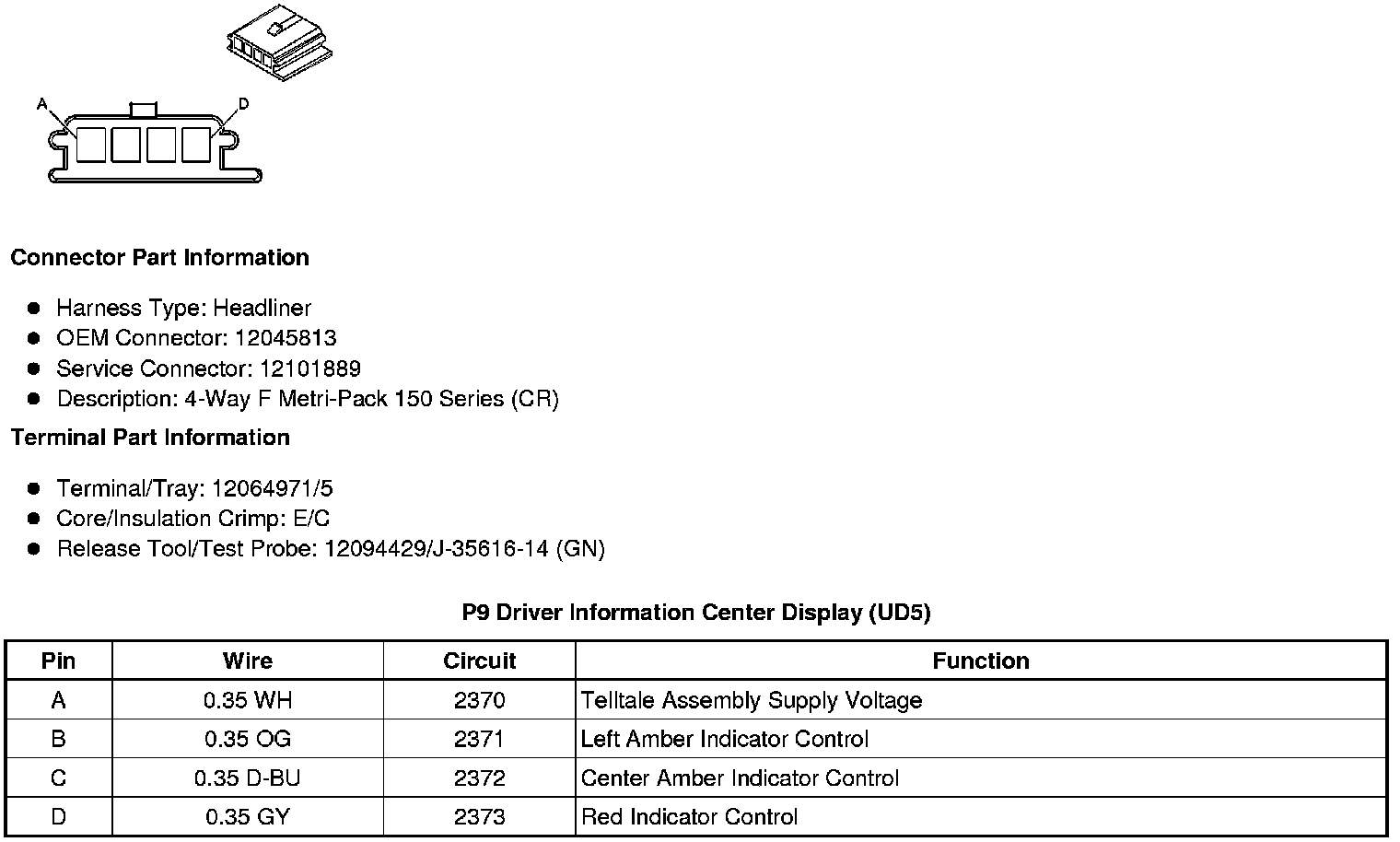

P9 Driver Information Center Display (UD5)

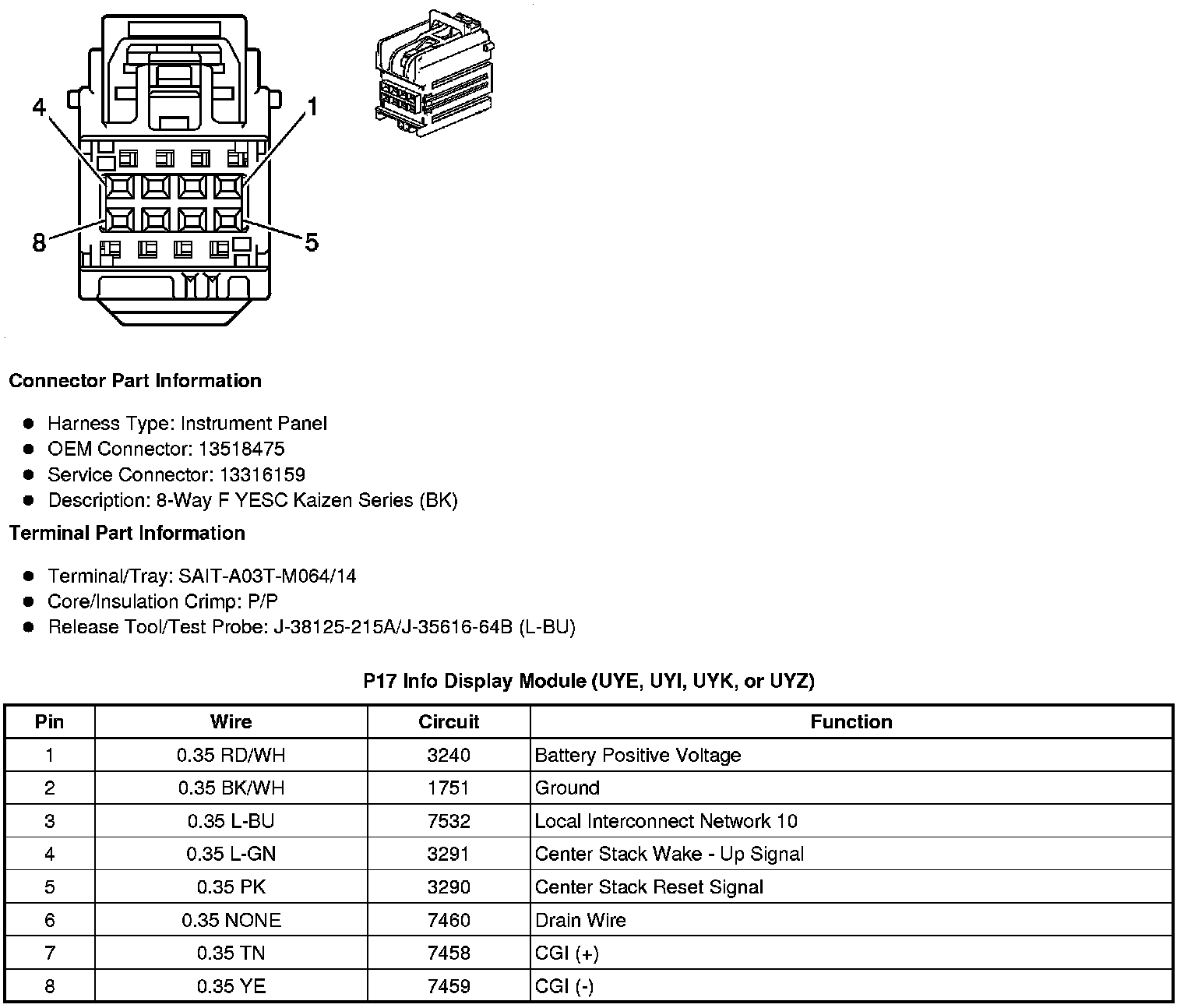

P17 Info Display Module (UYE, UYI, UYK, or UYZ)

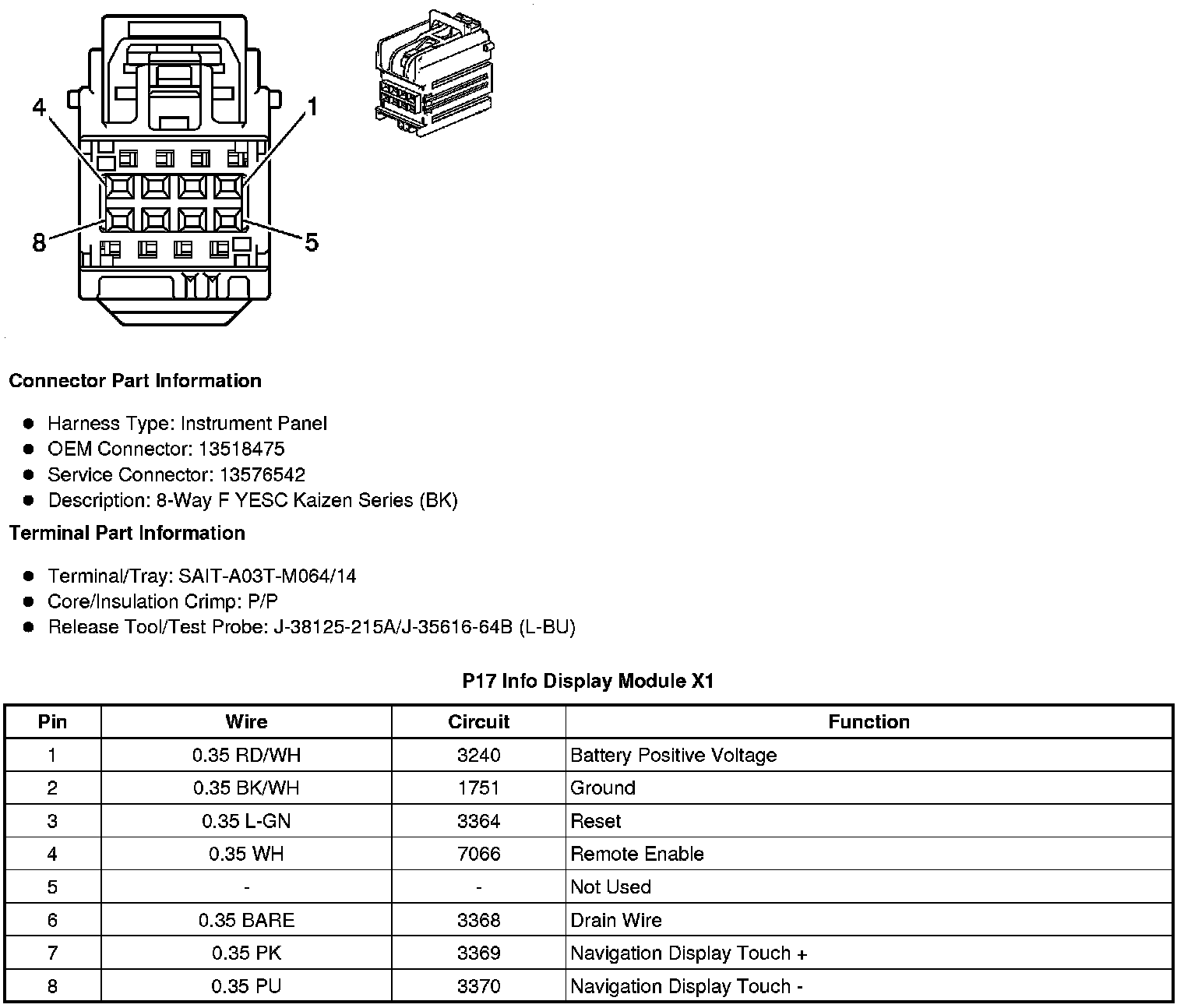

P17 Info Display Module X1

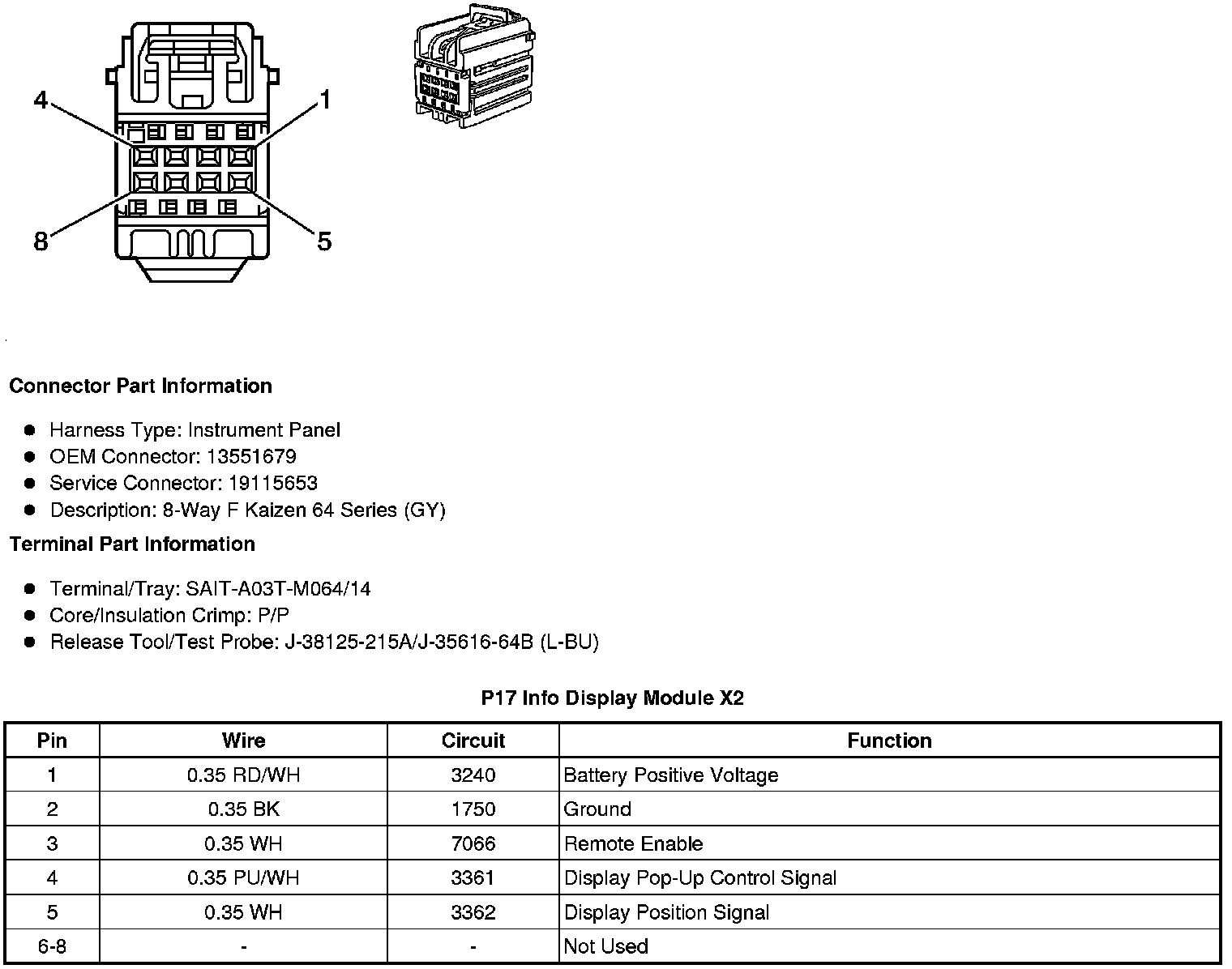

P17 Info Display Module X2
Component Connector End Views
P9 Driver Information Center Display (UD5)
P17 Info Display Module (UYE, UYI, UYK, or UYZ)
P17 Info Display Module X1
P17 Info Display Module X2
