Headlamp Alignment Sensor
Headlamp Alignment Sensor
Component Connector End Views

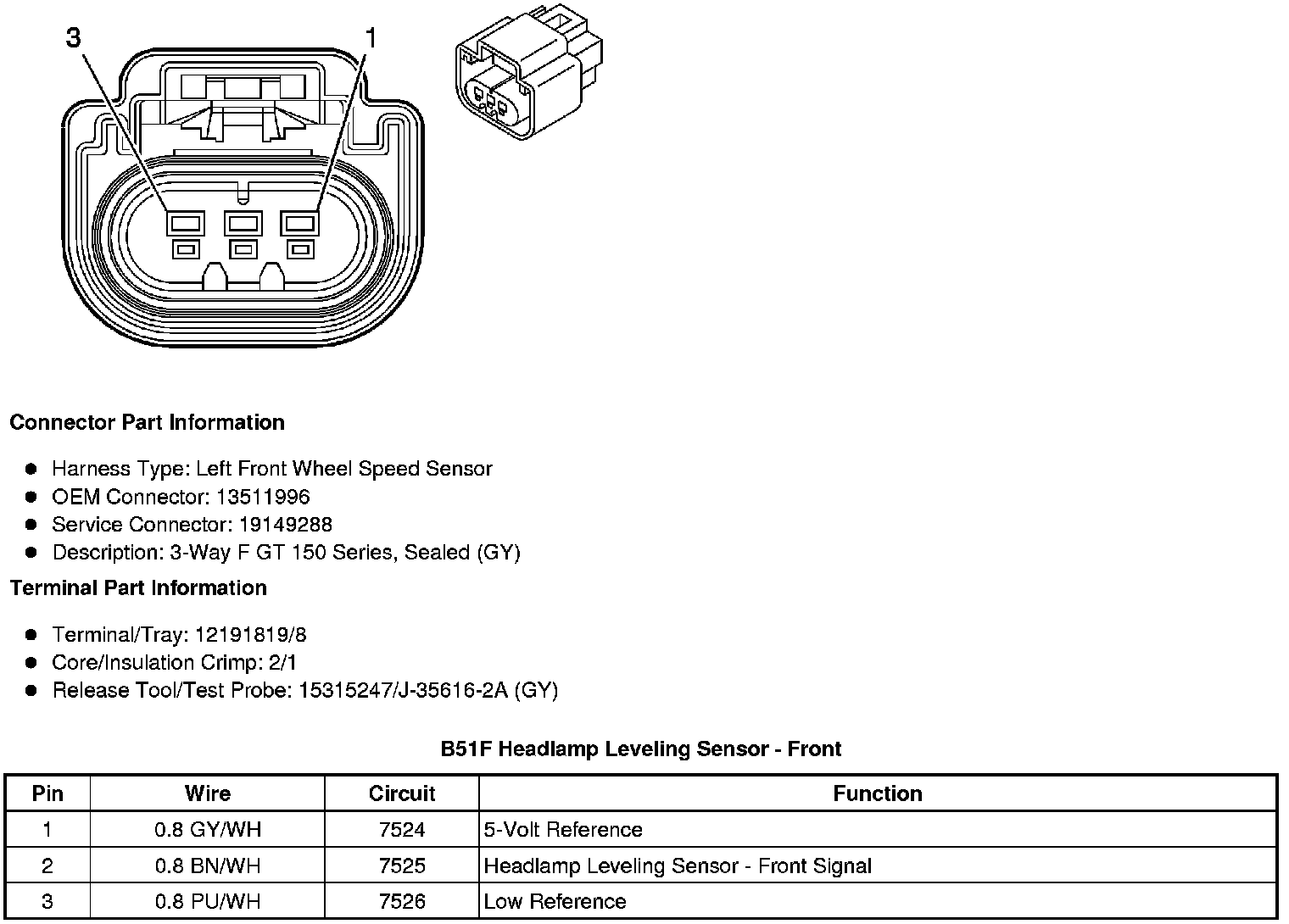

B51F Headlamp Leveling Sensor - Front

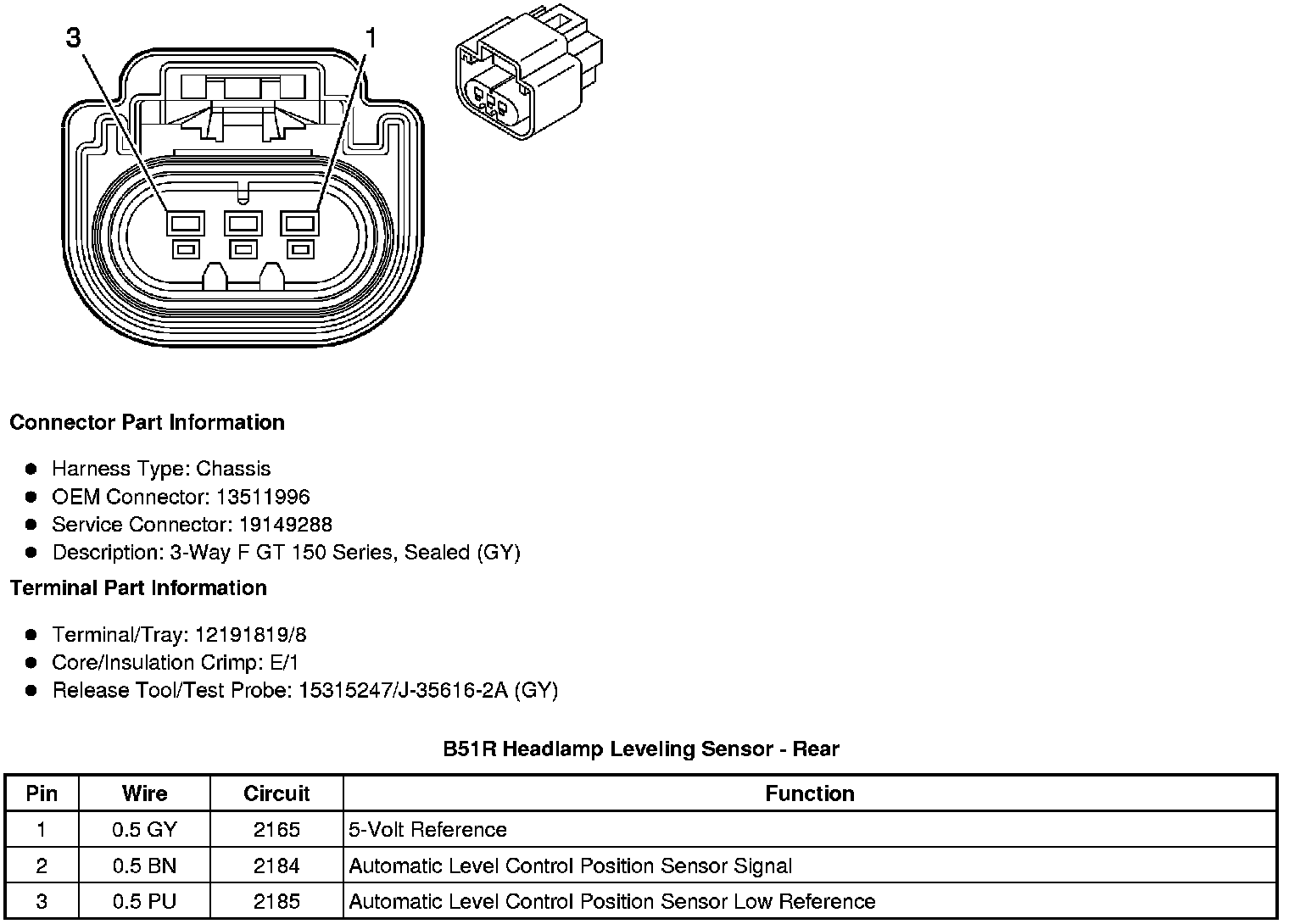

B51R Headlamp Leveling Sensor - Rear
