Home >> Cadillac >> 2010 >> SRX AWD V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> Connector End Views By Number >> X100 - X199 >> X116

X116

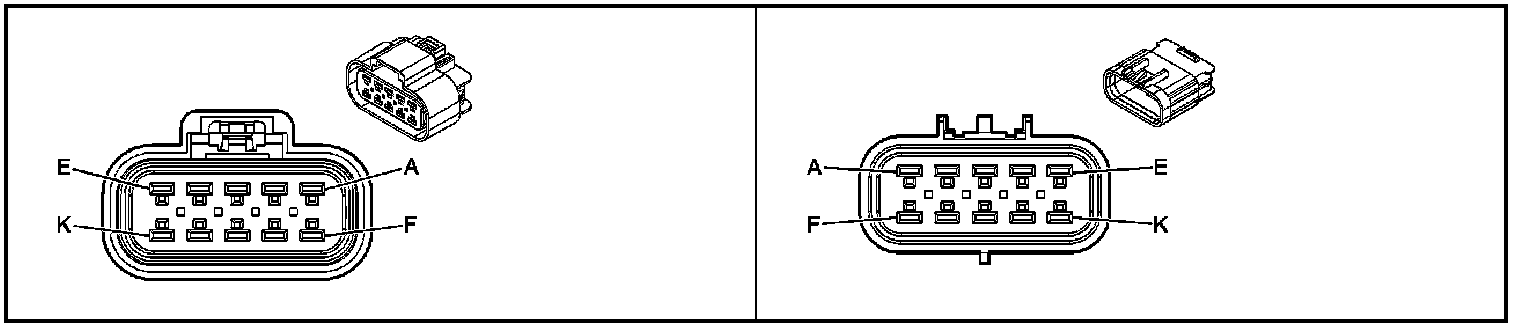

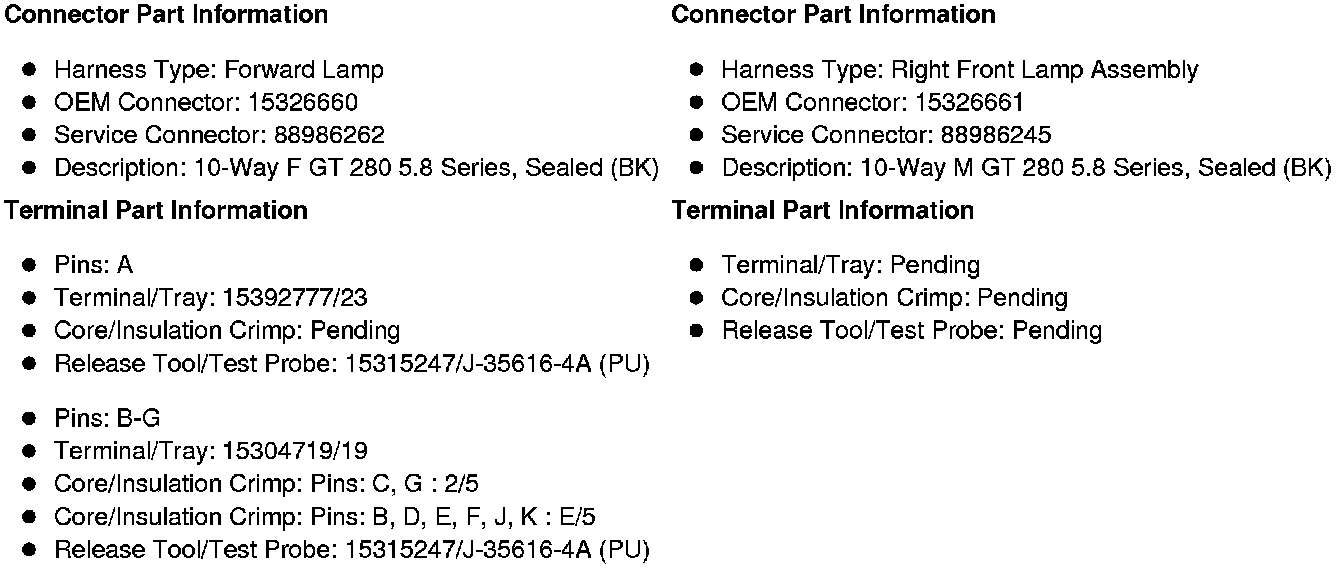

Inline Harness Connector End Views

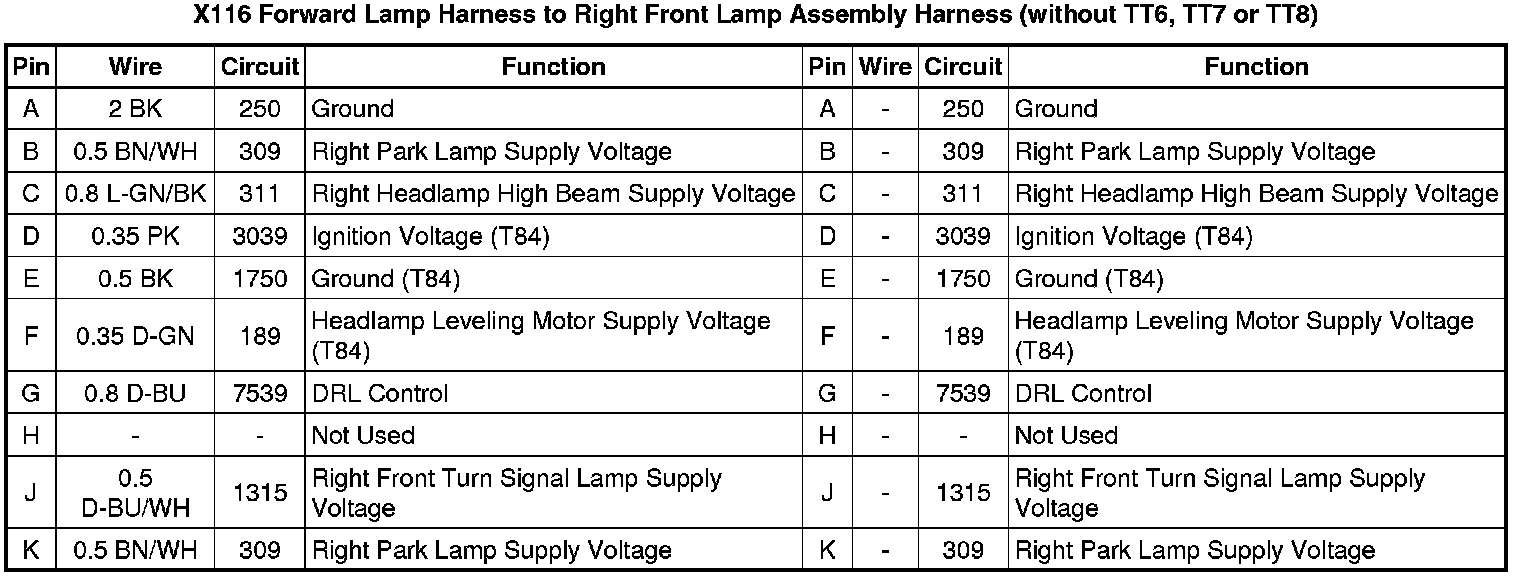

X116 Forward Lamp Harness to Right Front Lamp Assembly Harness (without TT6, TT7 or TT8)
