Seat Fan




Heated/Cooled Seat Schematics

Power, Ground, Serial data, and Controls





Heated Seats Front (KA1)





Heated Seats Rear KA6





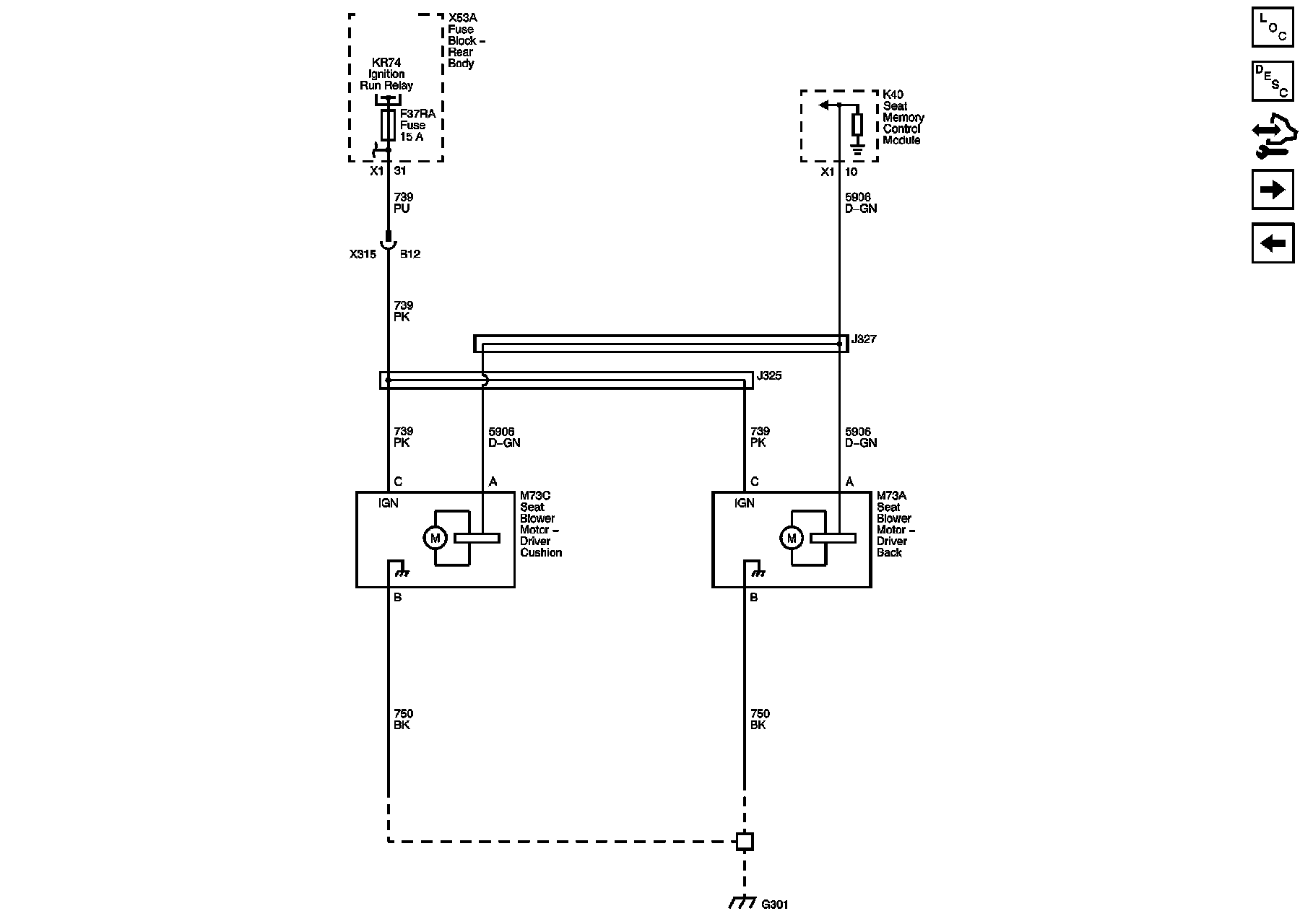

Seat Ventilation Driver KU1





Seat Ventilation Passenger KU3
