Electrical Diagrams




Engine Cooling Schematics

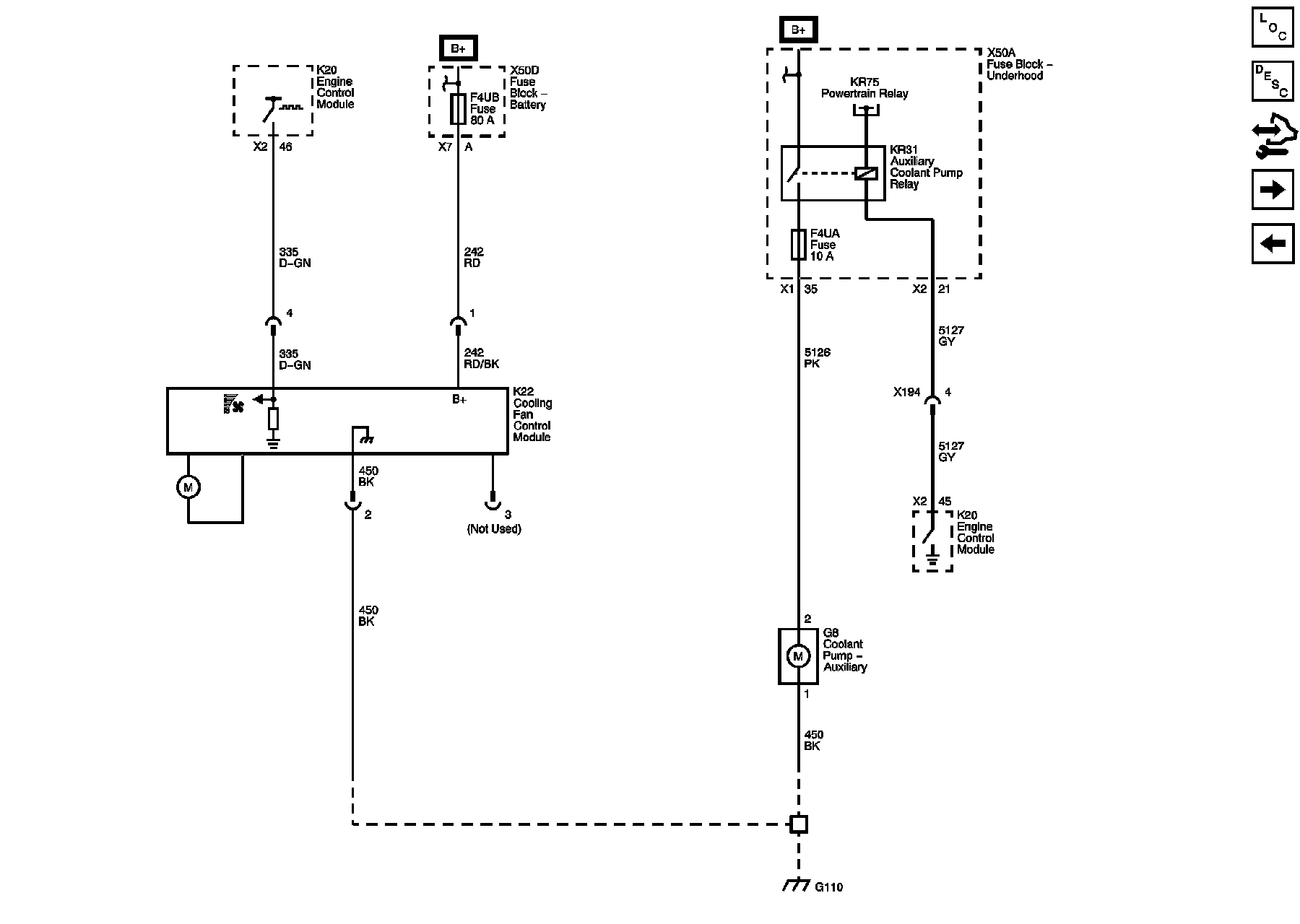

Cooling Fan (LF1)





Cooling Fan (LAU)

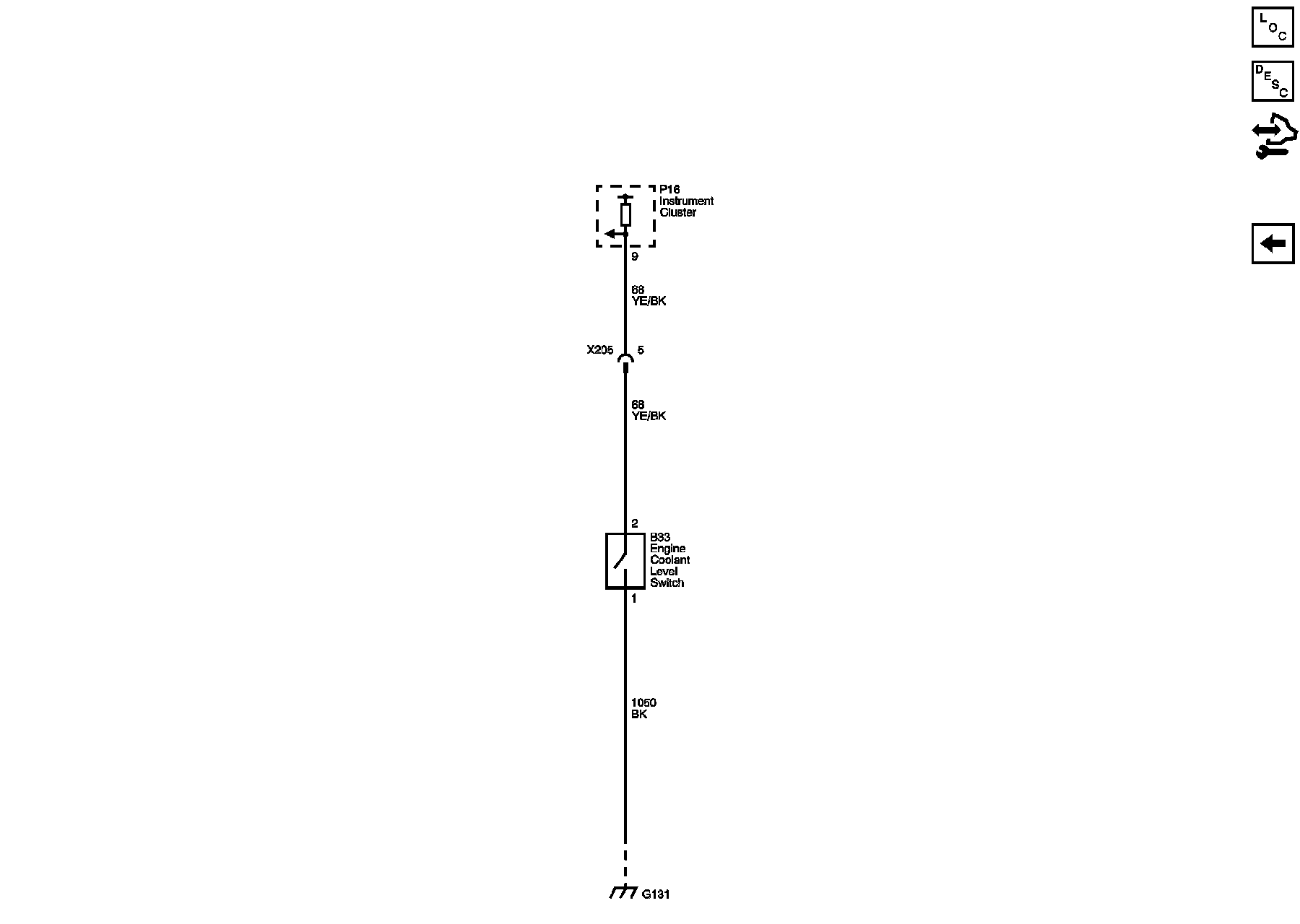

Engine Coolant Level Switch
