9. Automatic Transmission Flex Plate Removal

Automatic Transmission Flex Plate Removal

Special Tools

EN 46106 - Flywheel Holding Tool

For equivalent regional tools, refer to Special Tools (Special Tools).




1. Install the EN 46106 - holder through the starter mounting hole.

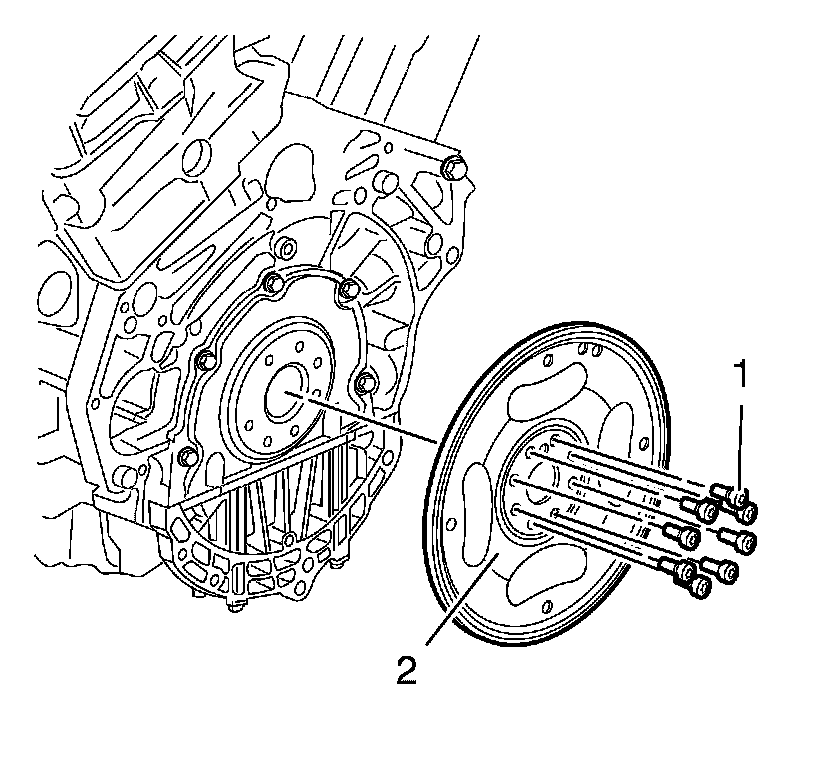

2. Remove the 8 automatic transmission flex plate bolts (1).
3. Remove the automatic transmission flex plate (2).




4. Remove the EN 46106 - holder.
