Engine Compartment Harness Routing




Harness Routing Views

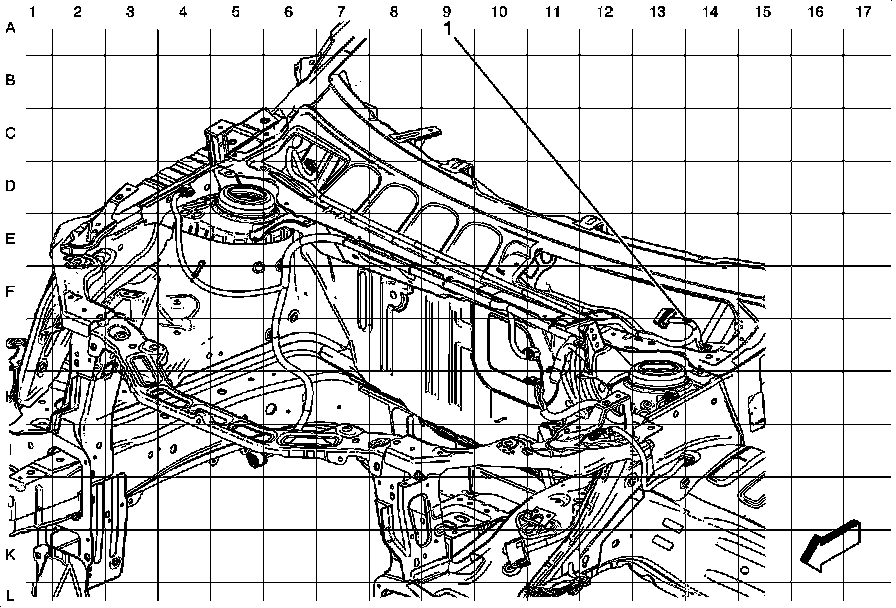

Engine Compartment Harness Routing - Left Rear




1 - J124

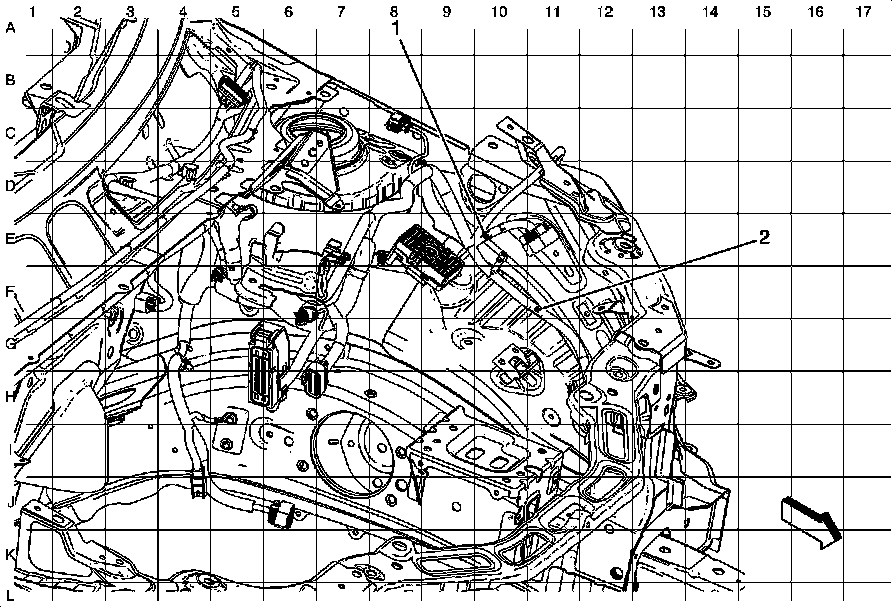

Engine Compartment Harness Routing - Left Front




1 - J137 (LAU)
2 - J138
