Air Temperature Sensor ( Ambient / Intake ): Diagrams




Component Connector End Views

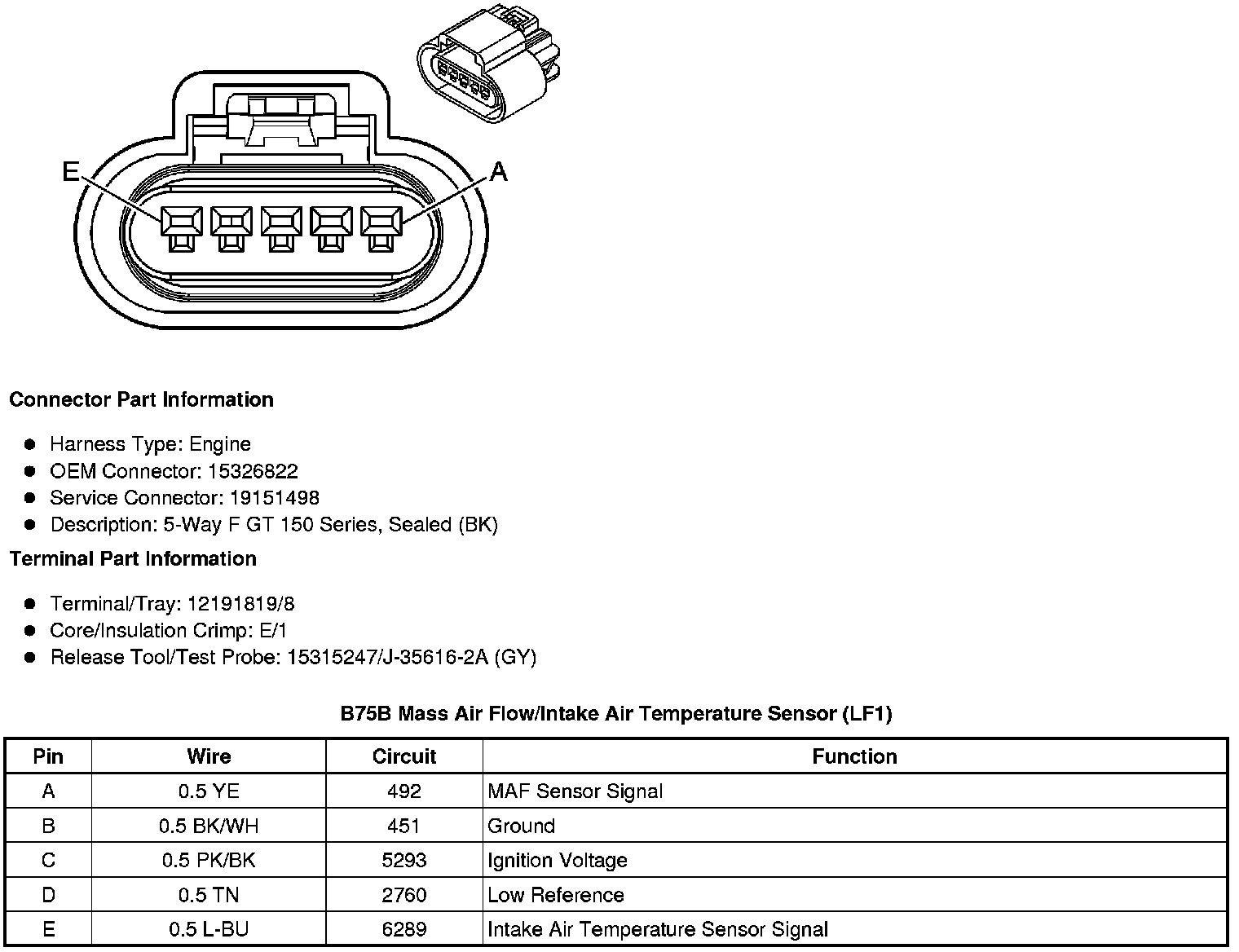

B75B Mass Air Flow/Intake Air Temperature Sensor (LF1)

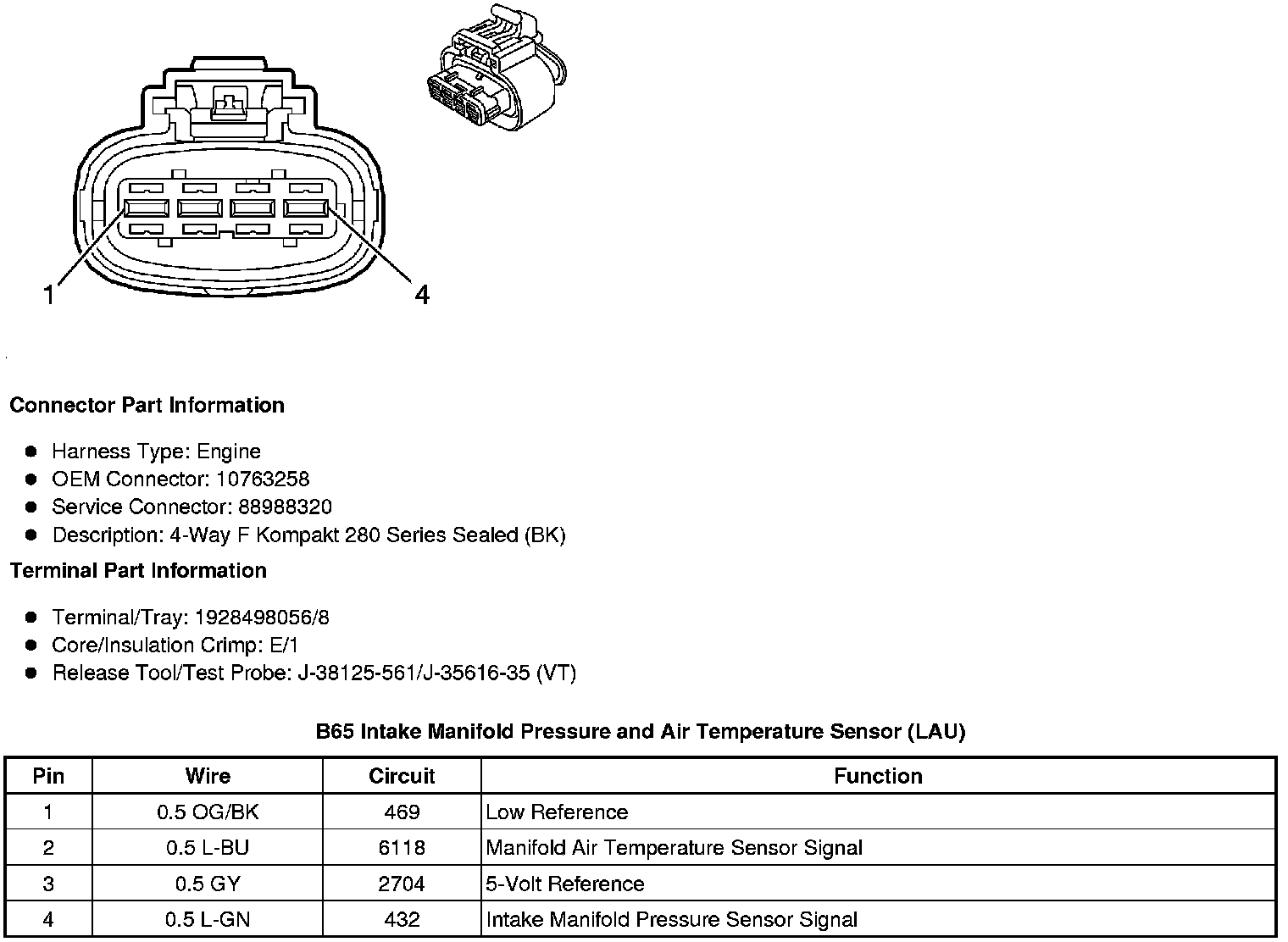

B65 Intake Manifold Pressure and Air Temperature Sensor (LAU)
