Cylinder Head Assembly

If the warpage is less than 0.05 mm (0.002 in), the cylinder head deck surface does not require resurfacing.

If the warpage is between 0.05-0.20 mm (0.002-0.008 in) or any imperfections or scratches that could inhibit proper cylinder head gasket sealing are present, the cylinder head deck surface requires resurfacing.

If resurfacing is required the maximum amount that can be removed is 0.25 mm (0.010 in).
If the cylinder head deck surface requires more than 0.25 mm (0.010 in) material removal the head must be replaced.

Camshaft Intermediate Drive Sprocket Bolt - Idler Sprocket 58 Nm (43 lb ft)
Camshaft Position Actuator bolt 58 Nm (43 lb ft)

Left Sequence:

DO NOT reuse the old cylinder head bolts.

Cylinder Head Bolt - M8
First Pass 15 Nm (11 lb ft)
Final Pass 75 Degrees

Cylinder Head Bolt - M11
First Pass 30 Nm (22 lb ft)
Final Pass 150 Degrees

Left (DI):

Camshaft Cap Bolt 10 Nm (89 lb in)

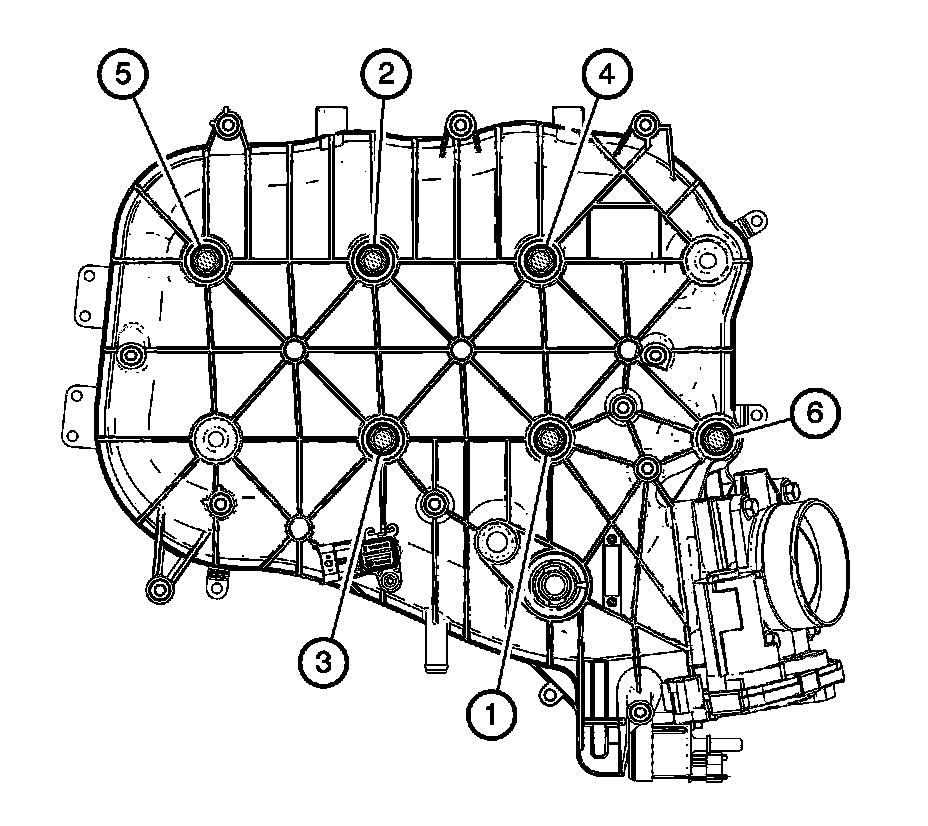

Intake Tightening Sequence (LF1 or LFW):

Intake Manifold
Upper-to-Cylinder Head Bolt - Long 25 Nm (18 lb ft)
Upper-to-Cylinder Head Bolt - Short 25 Nm (18 lb ft)
Upper-to-Lower Intake Manifold Bolt 25 Nm (18 lb ft)

Exhaust Manifold
Bolt 20 Nm (15 lb ft)
Studs 6 Nm (53 lb in)
