Power Window Motor: Locations

Door Component Views

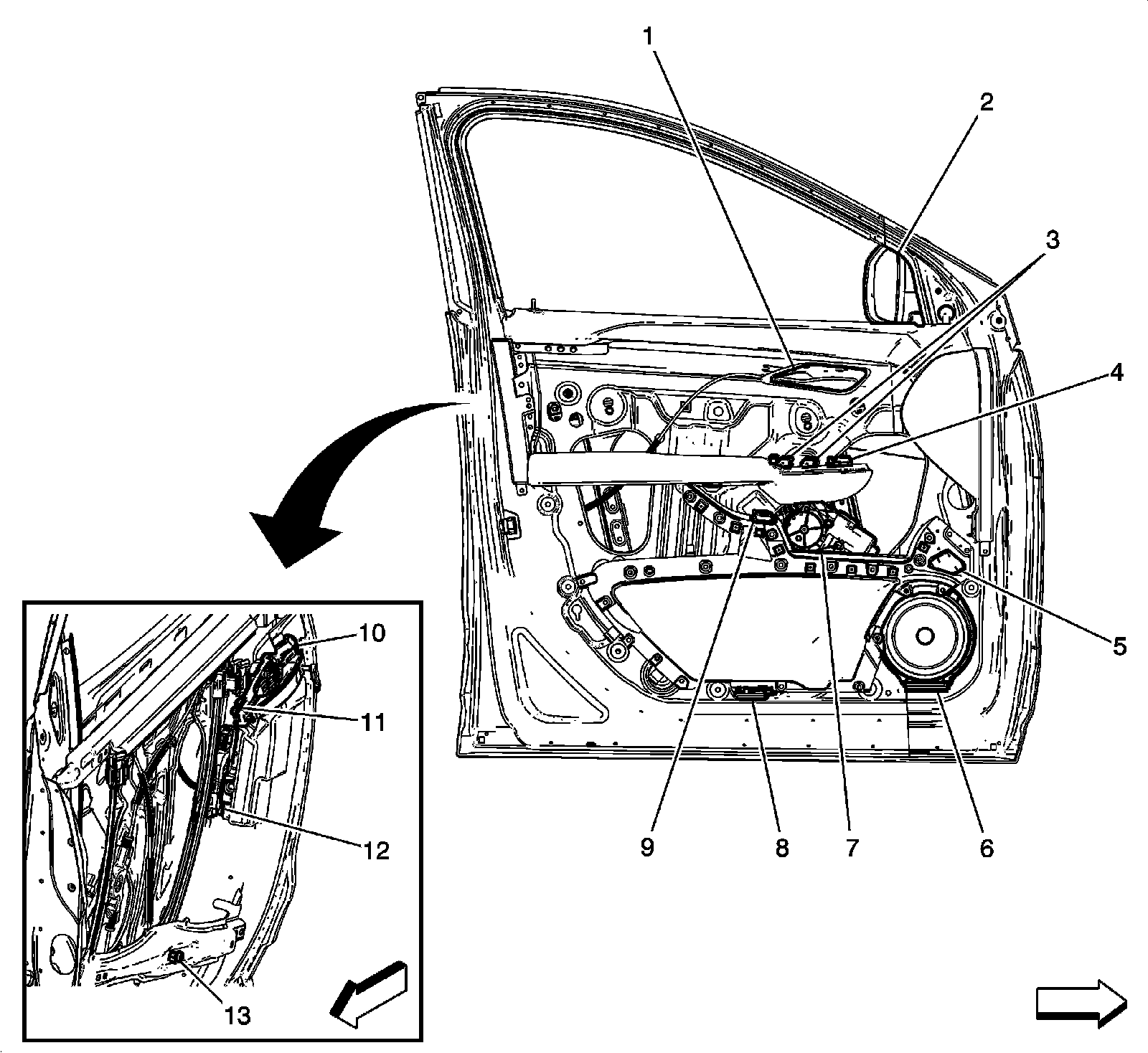

Driver Door Components (1 of 2)




1 - E1D Accent Lamp - Driver Door (TSQ)
2 - A9A Outside Rearview Mirror - Driver
3 - S79D Window Switch - Driver
4 - S52 Outside Rearview Mirror Switch
5 - K96L Mirror Control Module - Left (AAB)
6 - P19G Speaker - Left Front
7 - M74D Window Motor - Driver
8 - E8D Door Courtesy Lamp - Driver
9 - S45B Liftgate Control Switch - Interior
10 - B27A Door Handle Switch - Driver Exterior (ATH)
11 - T10C Keyless Entry Antenna - Left Front Door Handle (ATH)
12 - A23D Door Latch Assembly - Driver
13 - B63LF Side Impact Sensor - Front Left

Passenger Door Components (1 of 2)




1 - A9B Outside Rearview Mirror - Passenger
2 - E1P Accent Lamp - Passenger Door (TSQ)
3 - B27B Door Handle Switch - Passenger Exterior (ATH)
4 - T10D Keyless Entry Antenna - Right Front Door Handle (ATH)
5 - B63RF Side Impact Sensor - Right Front
6 - A23P Door Latch Assembly - Passenger
7 - E8P Door Courtesy Lamp - Passenger
8 - P19U Speaker - Right Front
9 - M74P Window Motor - Passenger
10 - S79P Window Switch - Passenger
