Transfer Case 2/4 Wheel Drive Actuator Position Sensor (NQH or NP0)

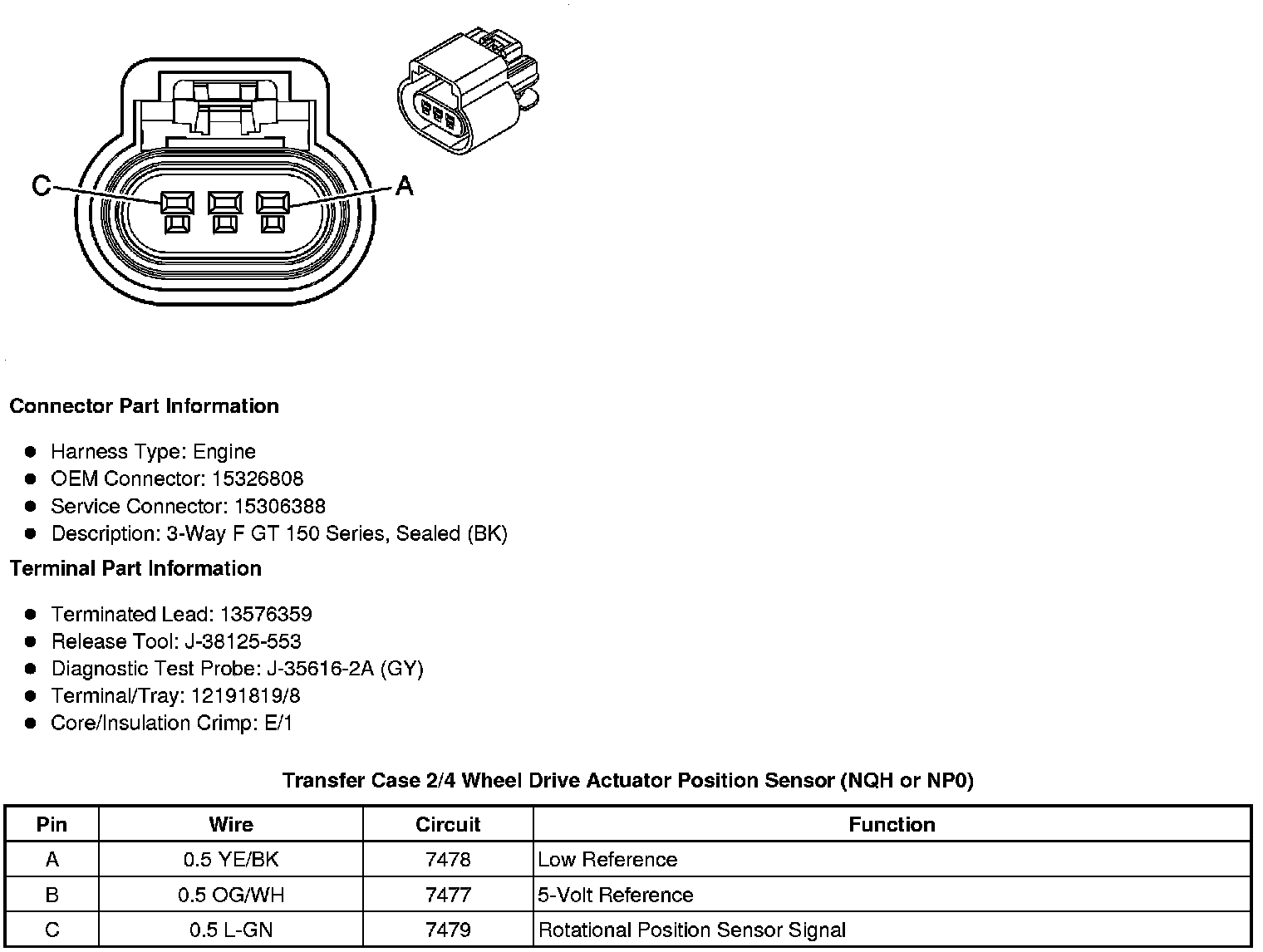

Component Connector End Views

Transfer Case 2/4 Wheel Drive Actuator Position Sensor (NQH or NP0)
