X223 Accessory Power Harness to Body Harness (5W4 or PPV)

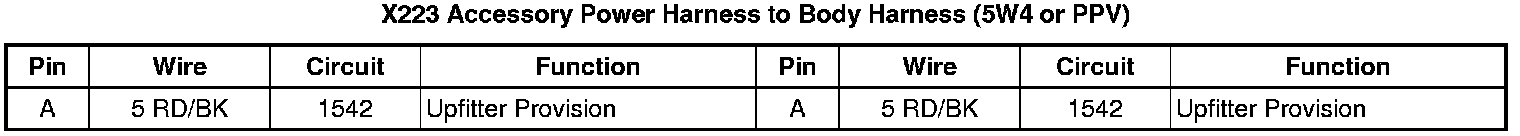

X223 Accessory Power Harness to Body Harness (5W4 or PPV)

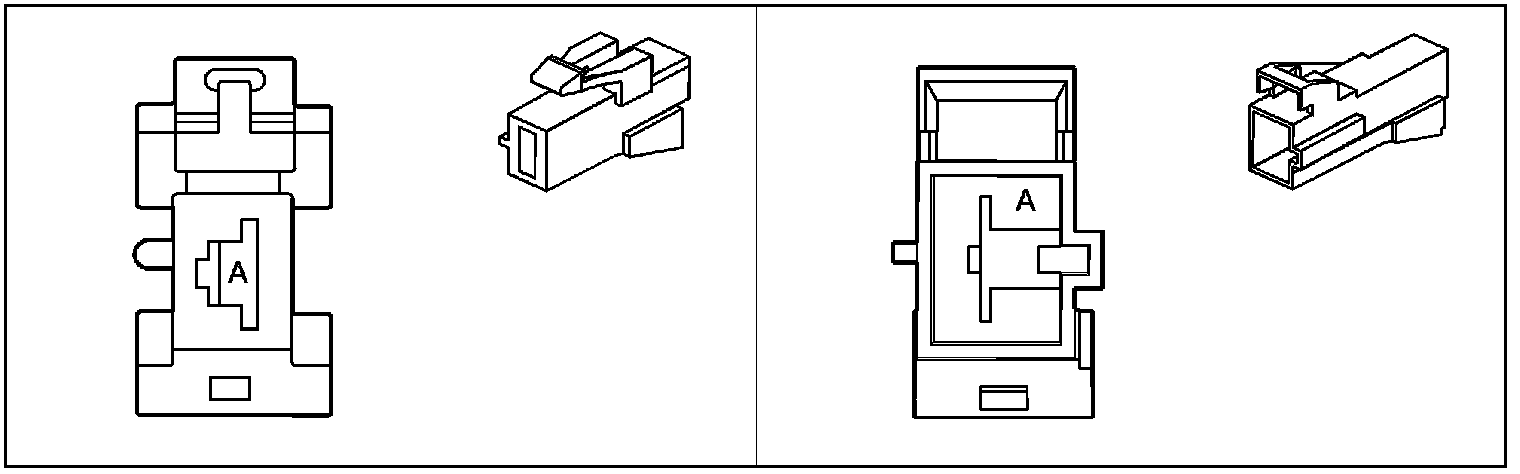

Inline Harness Connector End Views

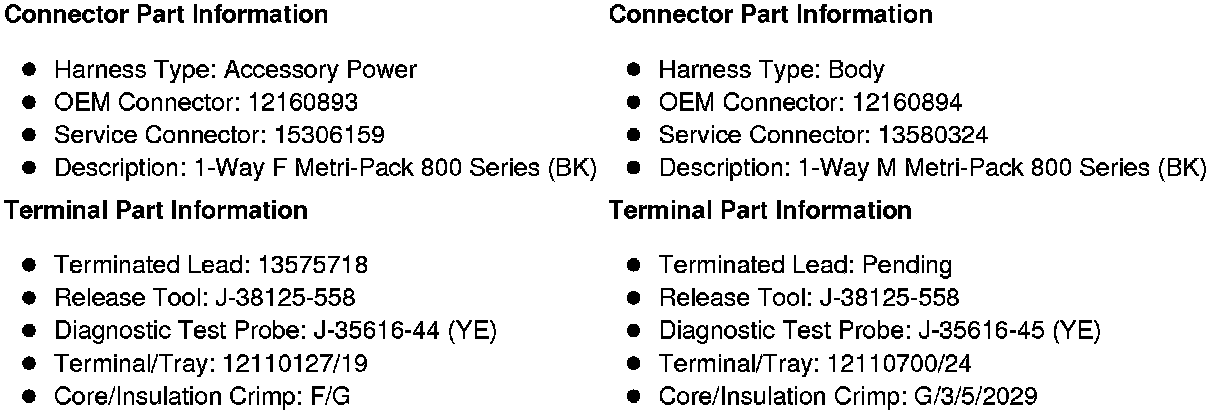

X223 Accessory Power Harness to Body Harness (5W4 or PPV)
