Rear Window Defogger Grid X2 (without E52 or TB7)
Rear Window Defogger Grid X2 (without E52 or TB7)
Component Connector End Views

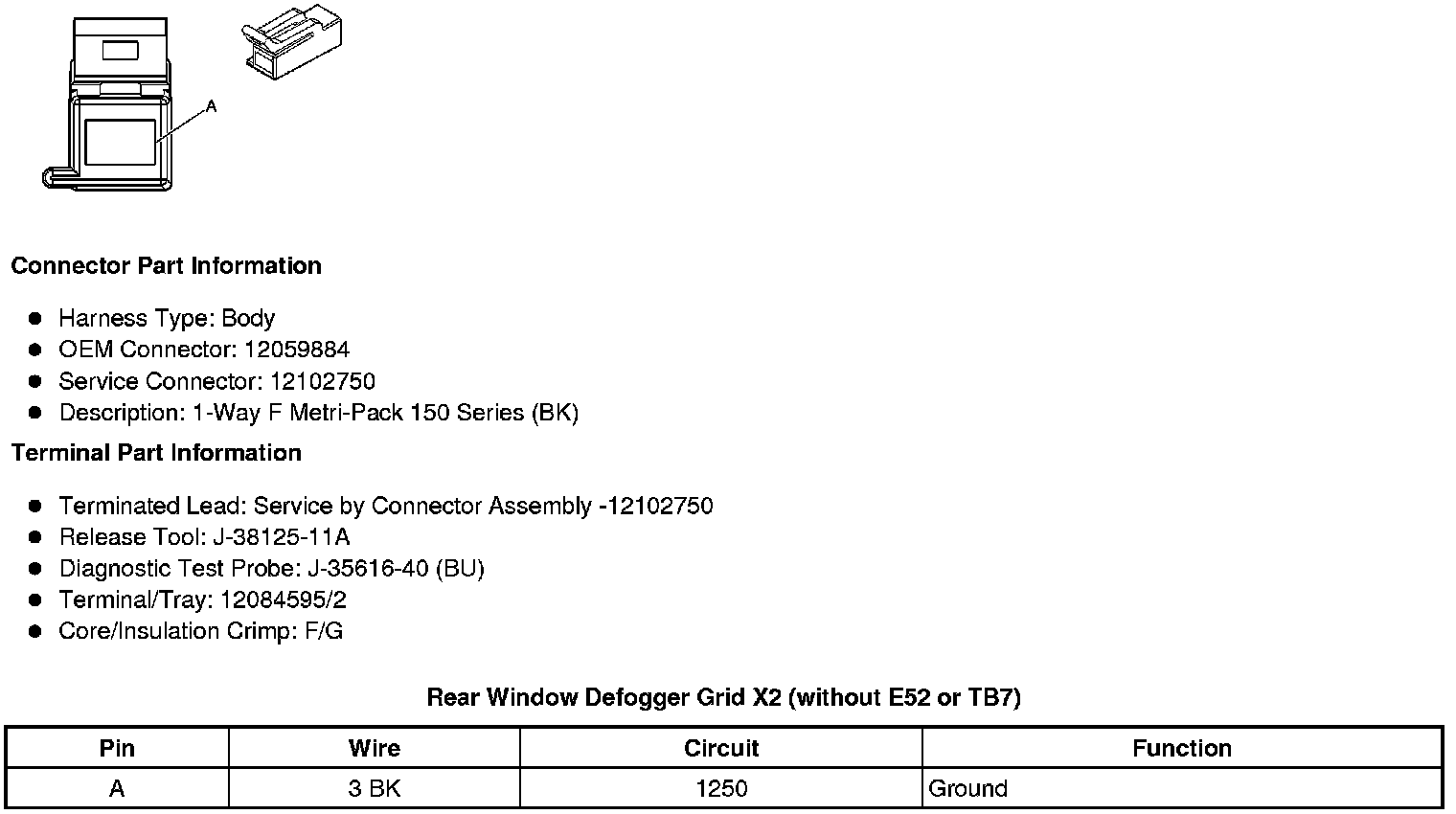

Rear Window Defogger Grid X2 (without E52 or TB7)
