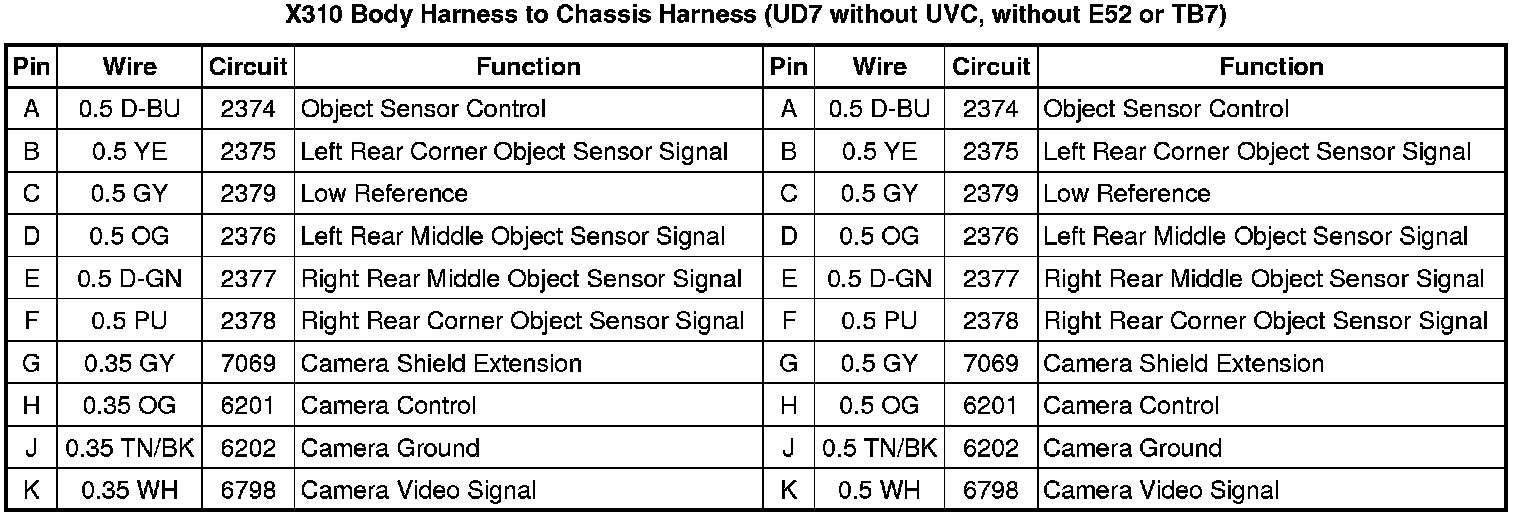

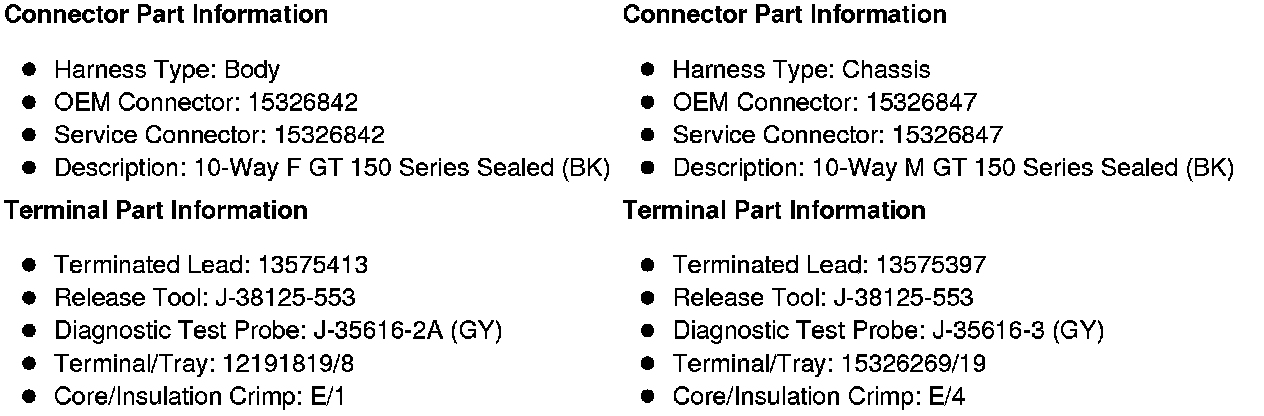

X310 Body Harness to Chassis Harness (UD7 without UVC, without E52 or TB7)

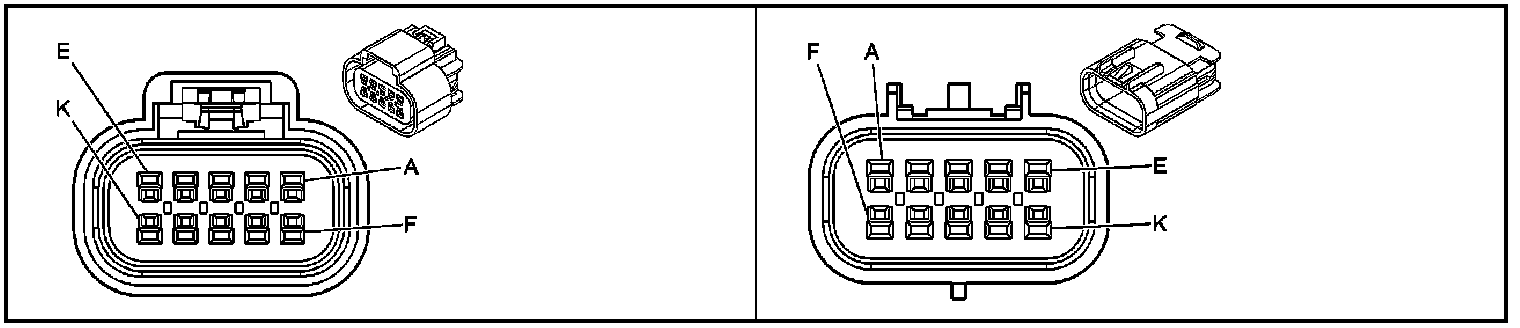

Inline Harness Connector End Views

X310 Body Harness to Chassis Harness (UD7 without UVC, without E52 or TB7)
