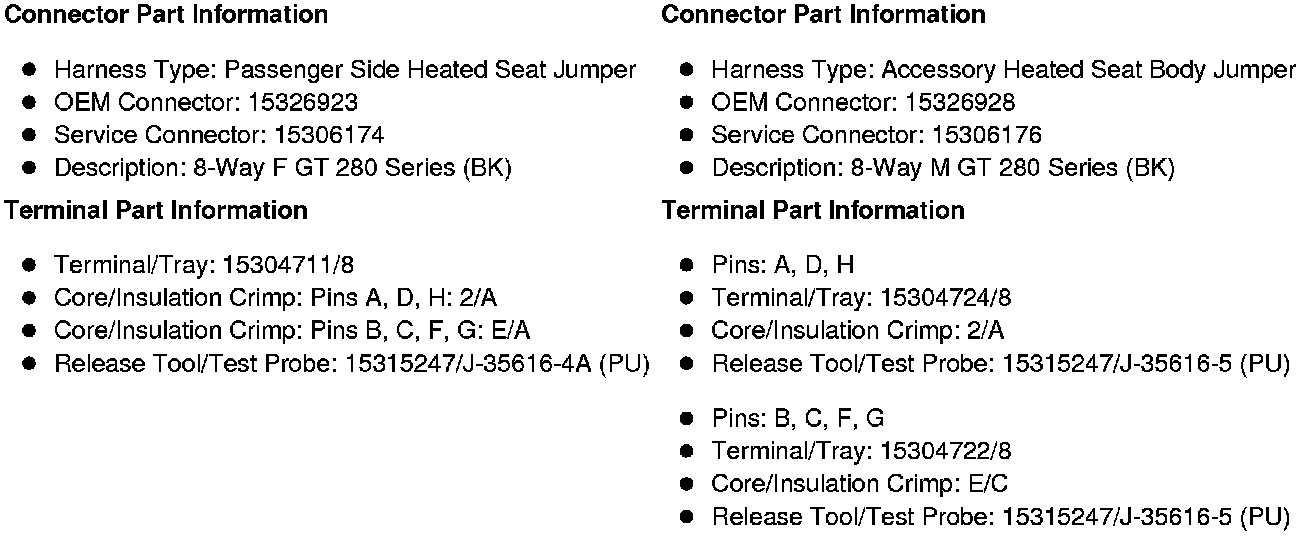

X332 Passenger Side Heated Seat Jumper to Accessory Heated Seat Body Jumper (SPO Accessory - Heated Seats)

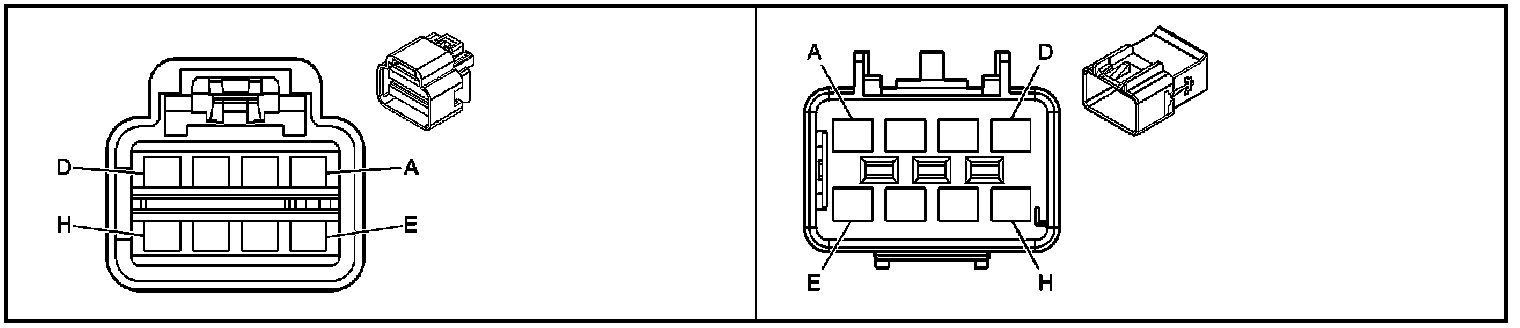

Inline Harness Connector End Views

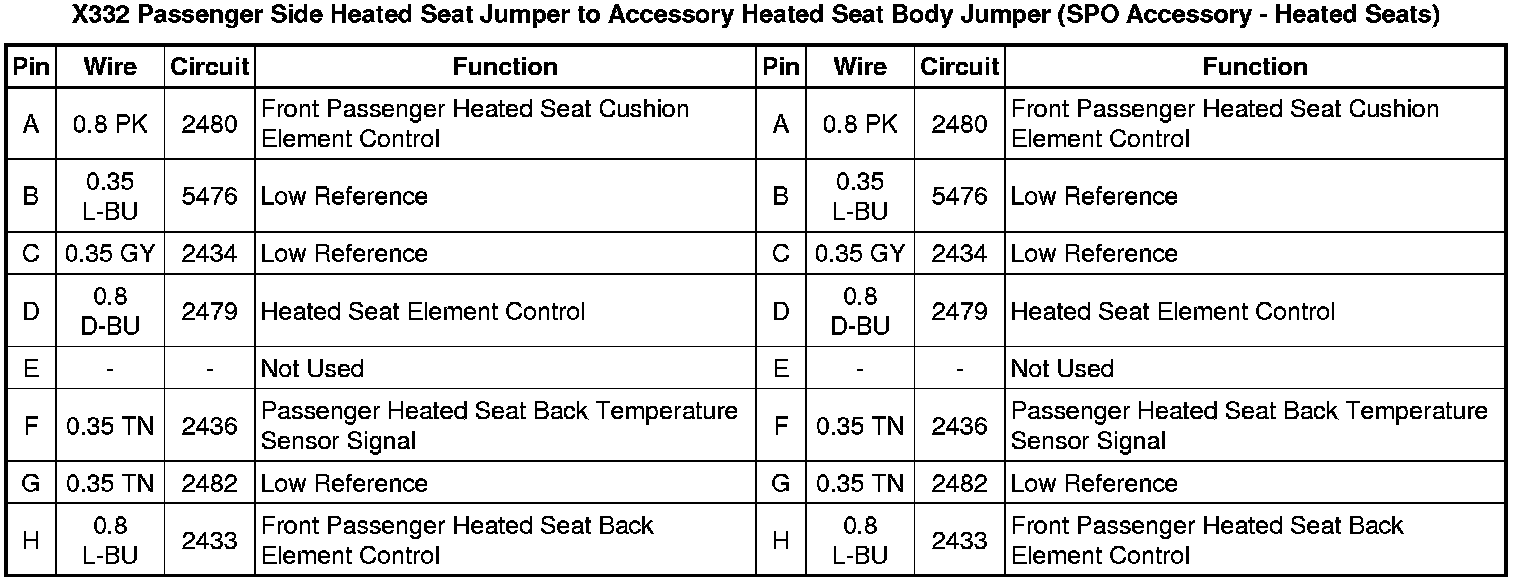

X332 Passenger Side Heated Seat Jumper to Accessory Heated Seat Body Jumper (SPO Accessory - Heated Seats)
