6L45/6L50/6L80/6L90 - Automatic Transmission
>>

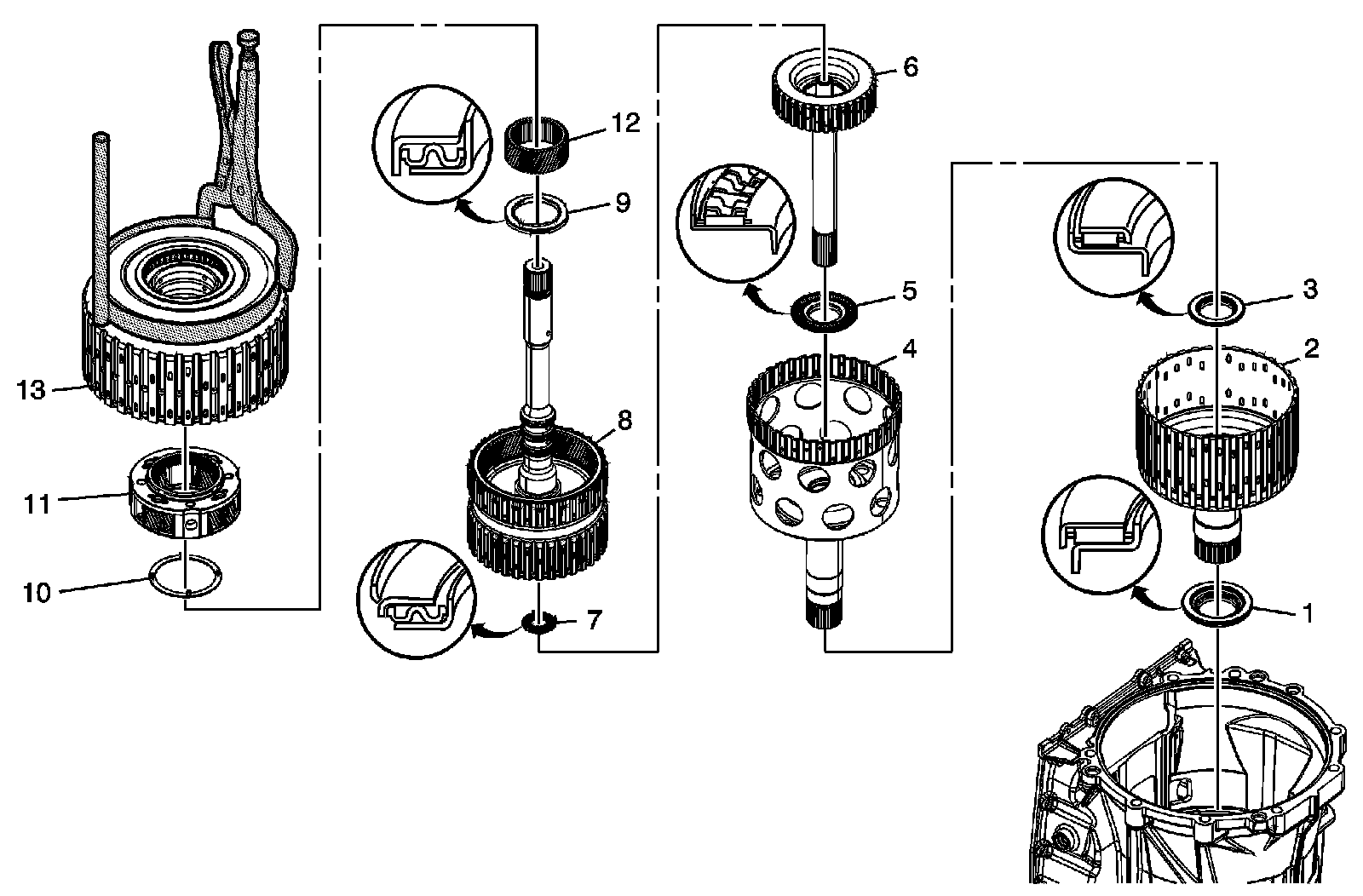

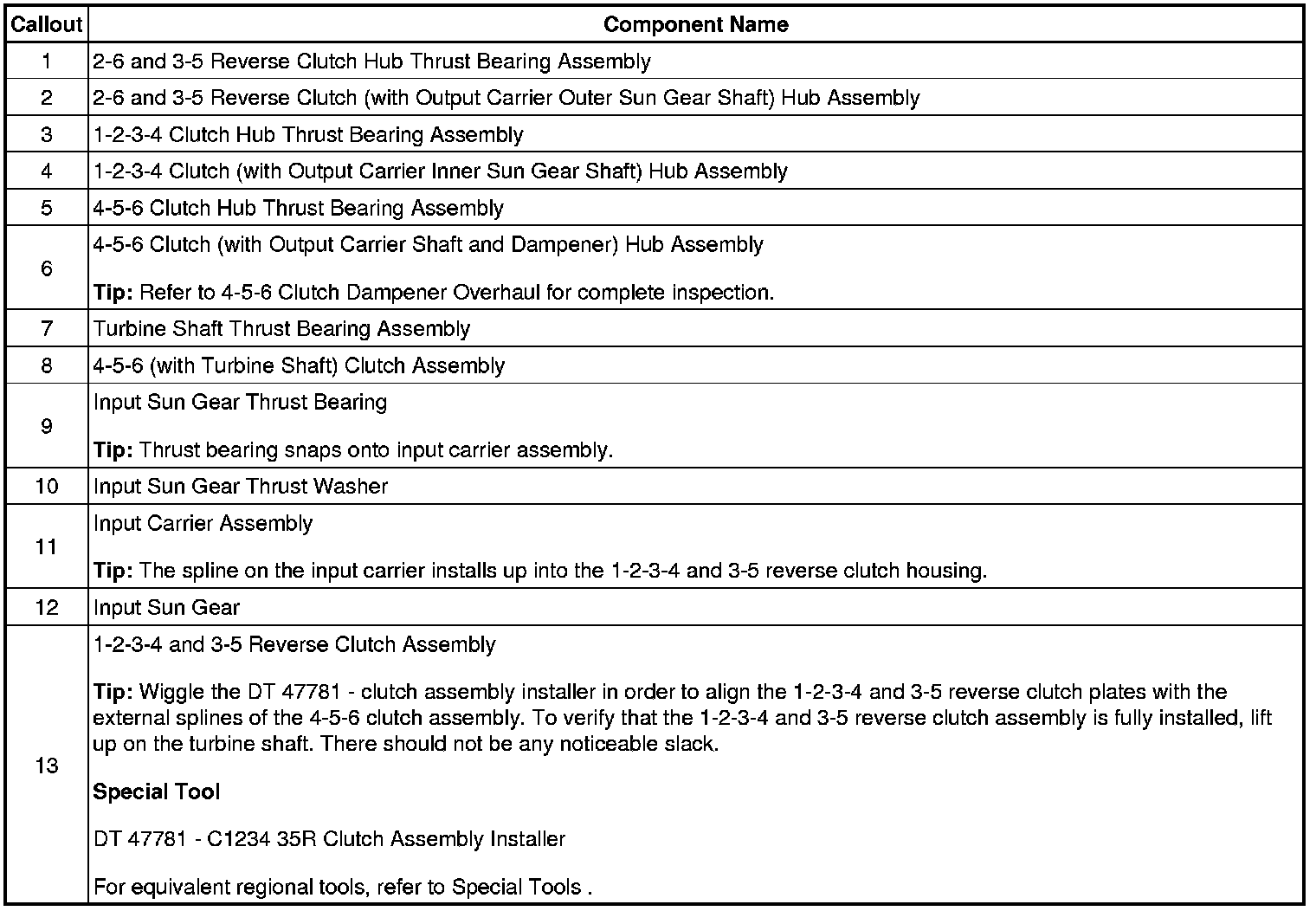

42. 1-2-3-4 and 3-5 Reverse Clutch Assembly and 4-5-6 Clutch Assembly Installation
42. 1-2-3-4 and 3-5 Reverse Clutch Assembly and 4-5-6 Clutch Assembly Installation
1-2-3-4 and 3-5 Reverse Clutch Assembly and 4-5-6 Clutch Assembly Installation
