Seat Lumbar Support Motor - Driver (AL2) M53D
Seat Lumbar Support Motor - Driver (AL2) M53D

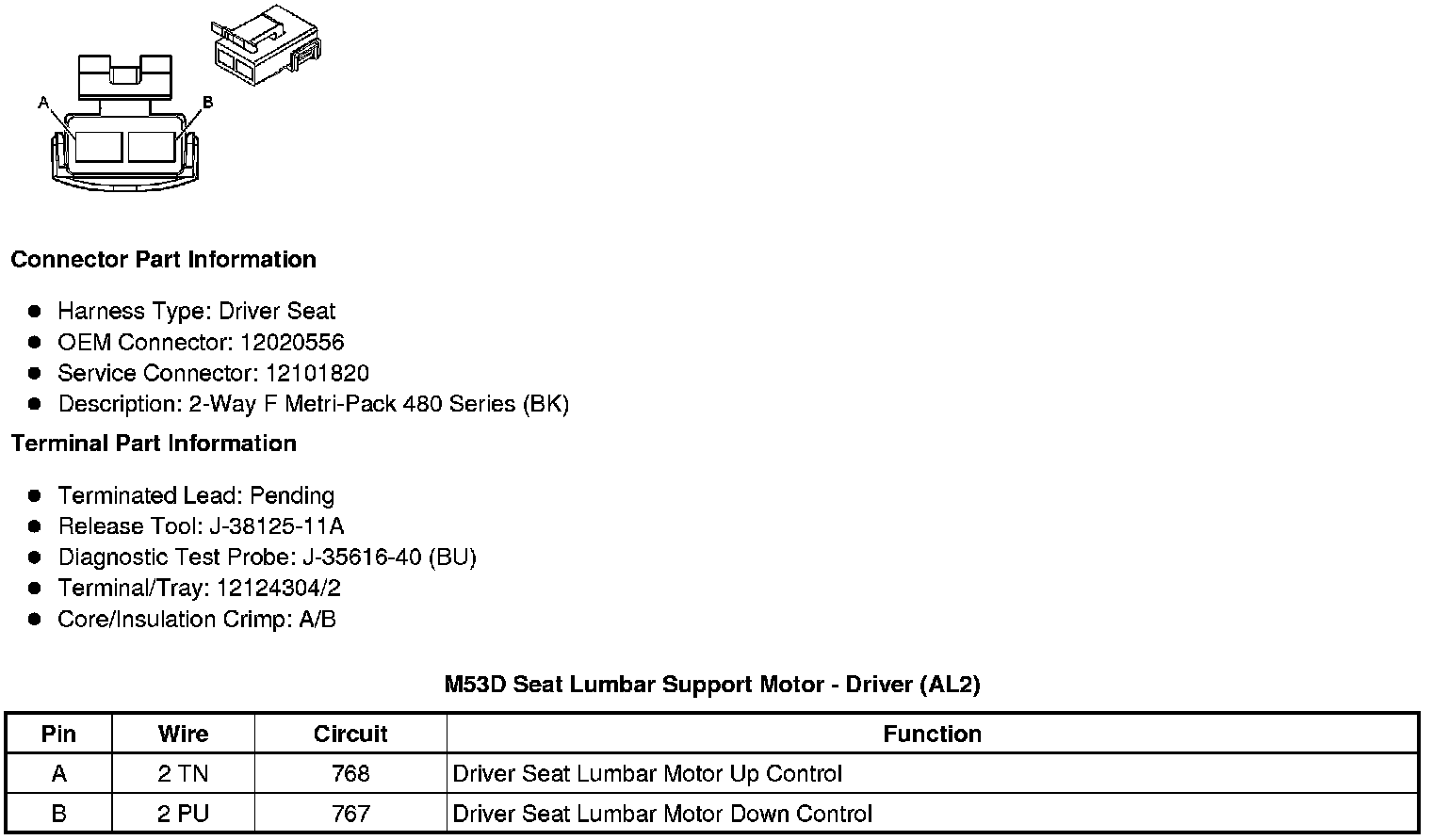

Component Connector End Views
M53D Seat Lumbar Support Motor - Driver (AL2)
