Camshaft Position Sensor

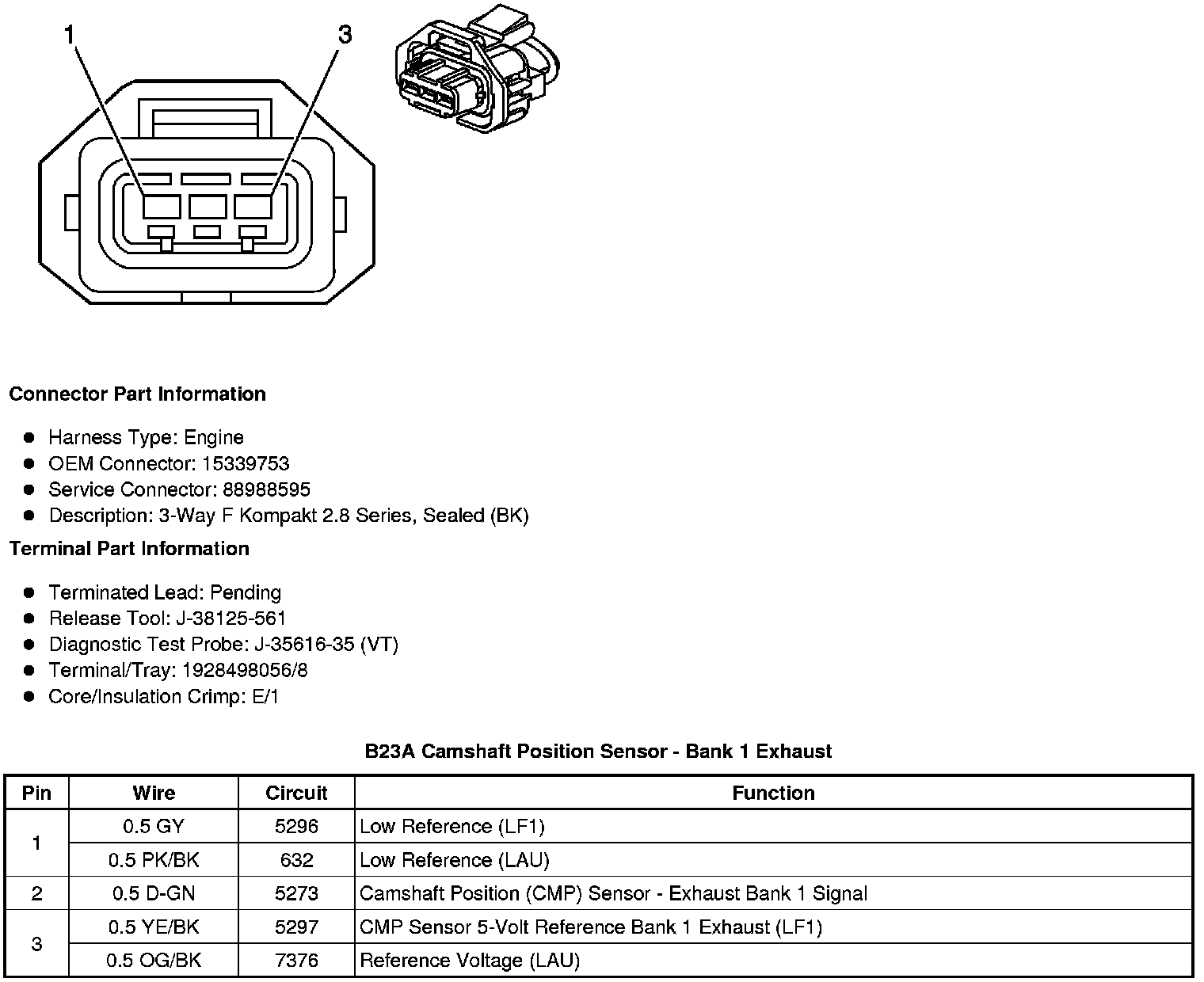

Component Connector End Views

B23A Camshaft Position Sensor - Bank 1 Exhaust

B23B Camshaft Position Sensor - Bank 1 Intake

B23C Camshaft Position Sensor - Bank 2 Exhaust

B23D Camshaft Position Sensor - Bank 2 Intake
