Front Object Sensor - Left Outer (UD5) B78A
Front Object Sensor - Left Outer (UD5) B78A
Component Connector End Views

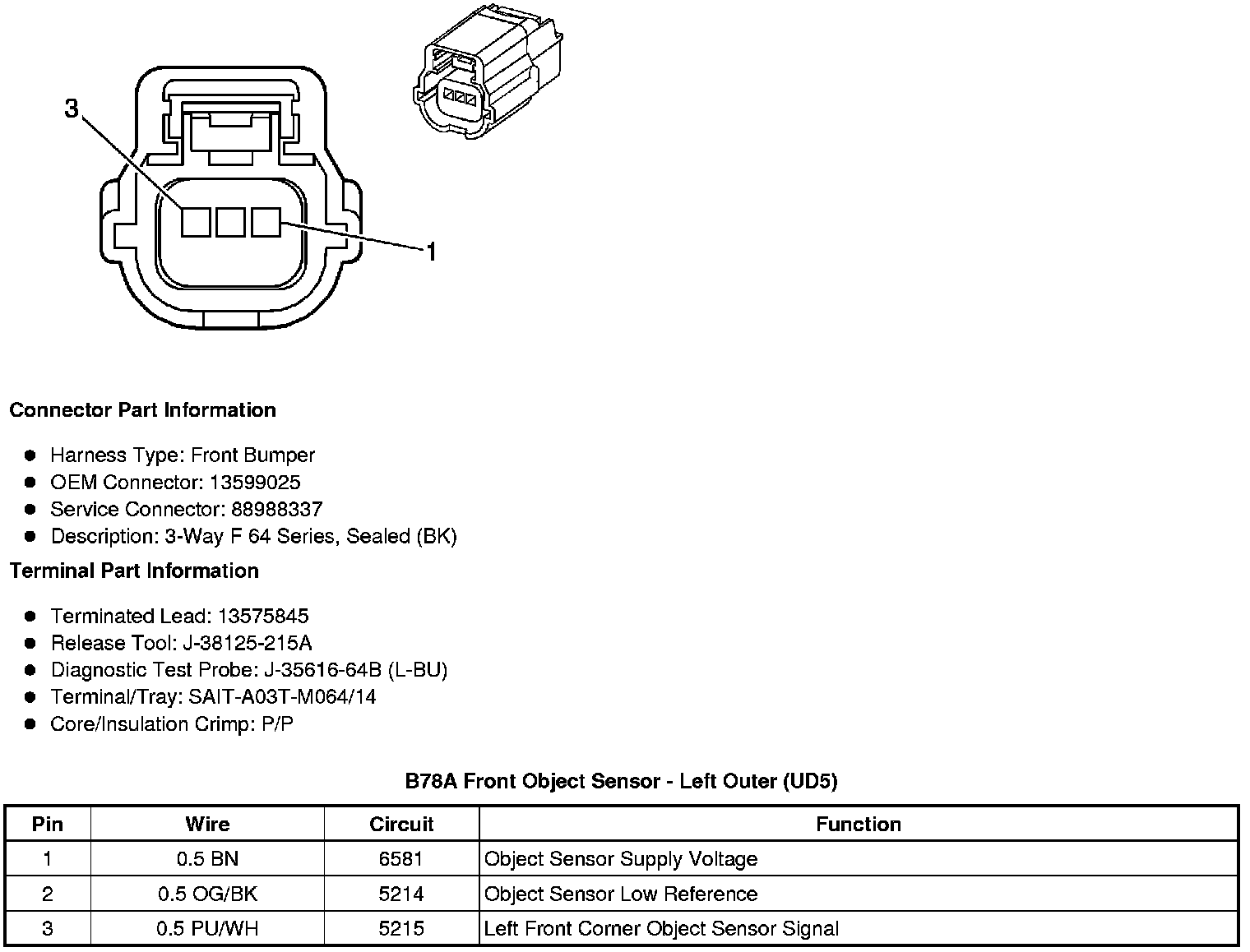

B78A Front Object Sensor - Left Outer (UD5)
