Video System Schematics




Video System Schematics

Headrest Displays Power and Ground





Driver Headrest Display Signals without ULD, with UYZ





Driver Headrest Display Signals without ULD or UYZ

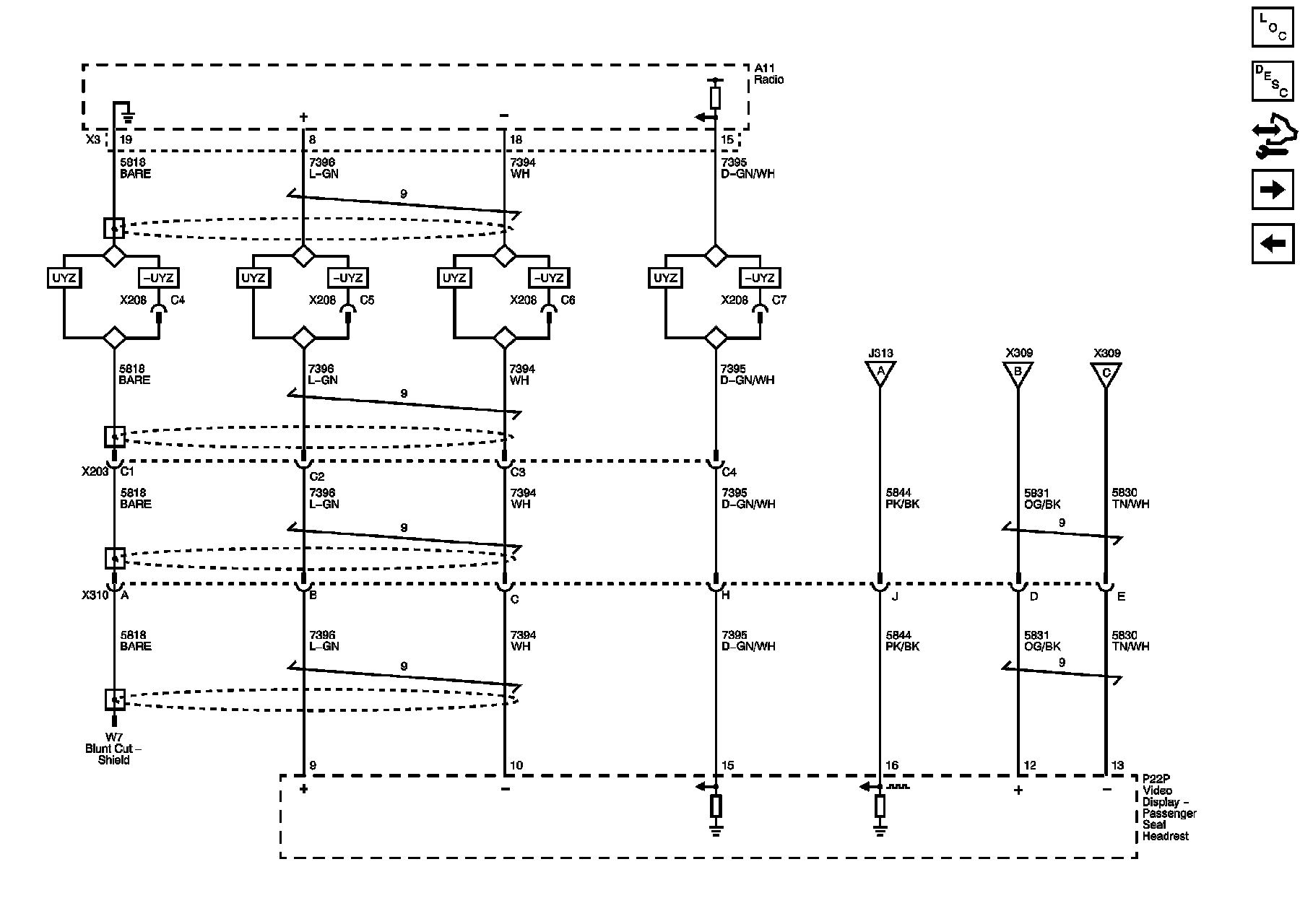

Passenger Headrest Display Signals





Video Inputs UWG
