Power Seat Motor Position Sensor
>>
Seat Horizontal Motor Position Sensor - Driver (A45)
Seat Horizontal Motor Position Sensor - Driver (A45)

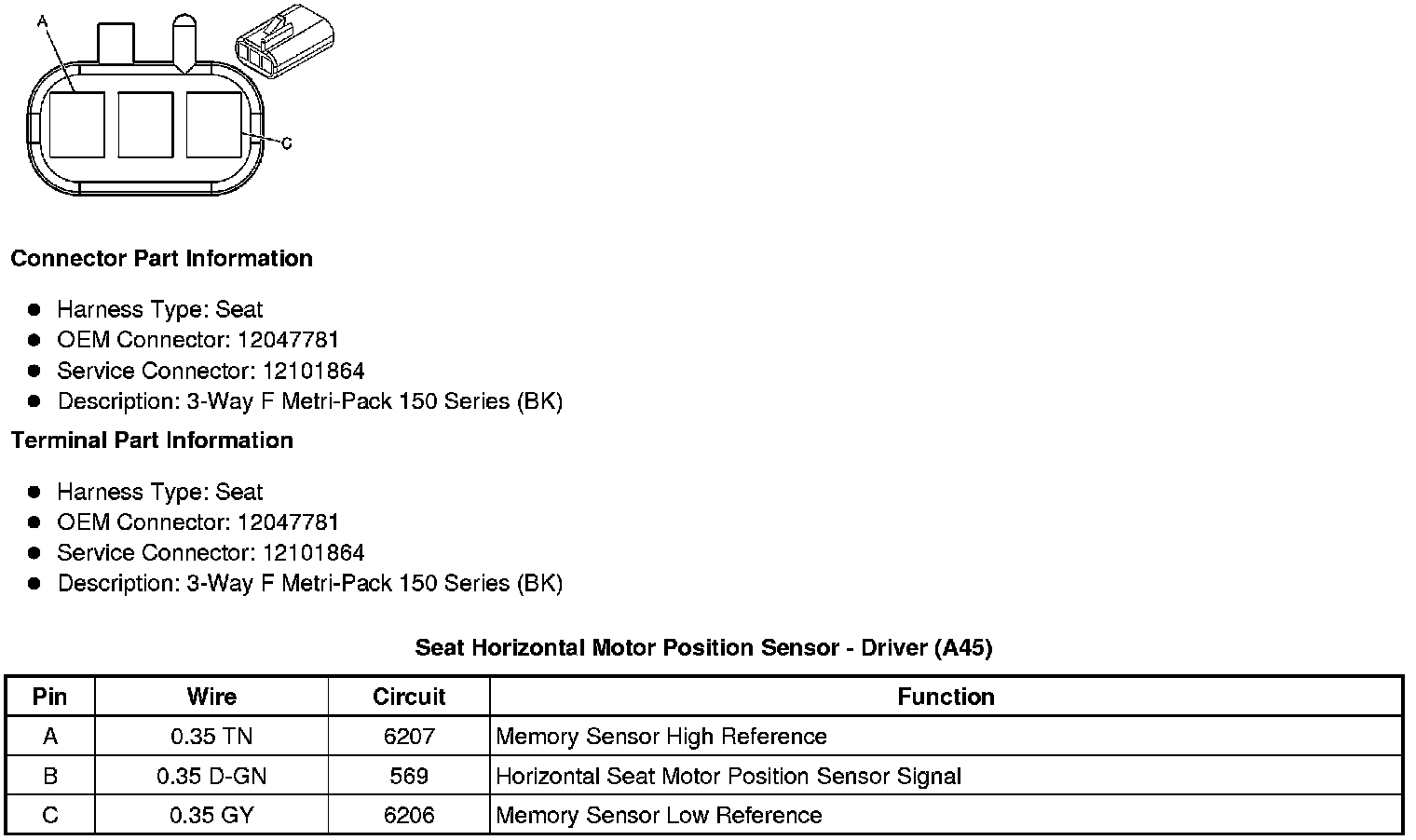

Component Connector End Views
Seat Horizontal Motor Position Sensor - Driver (A45)
