Flex Plate: Service and Repair




Engine Flywheel Replacement

Removal Procedure




1. Remove the transmission. Refer to Transmission Replacement (FWD) Transmission Replacement (FWD)Transmission Replacement (AWD) Transmission Replacement (AWD).

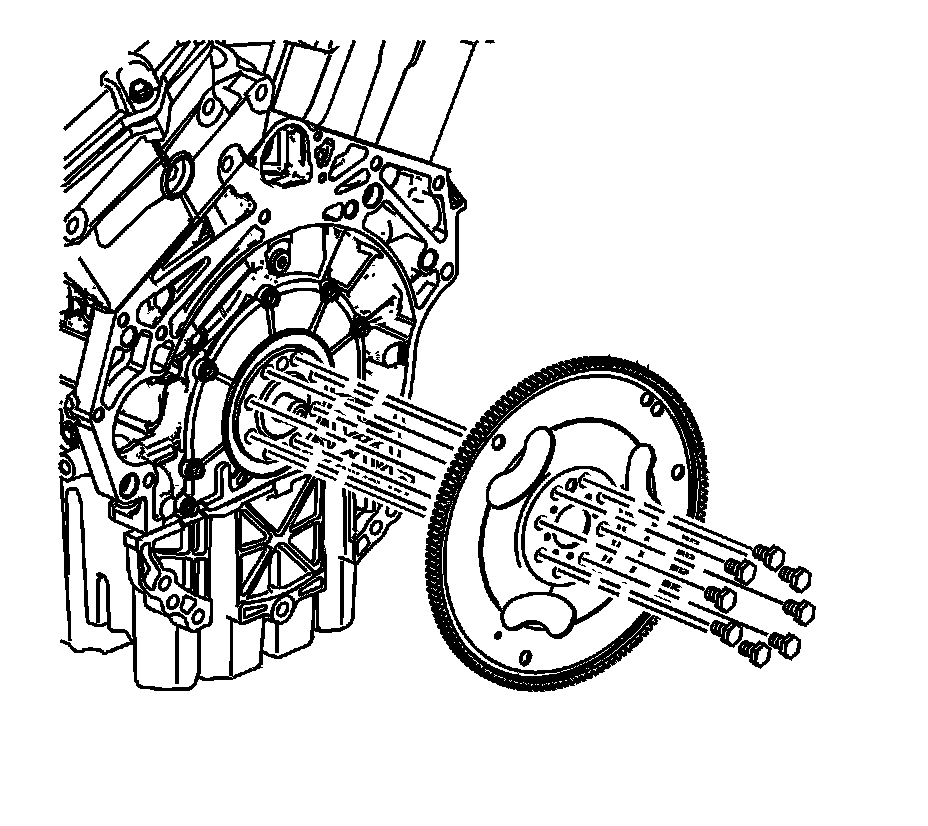

2. Remove the flywheel. Refer to Engine Flywheel Removal 8. Engine Flywheel Removal
3. Clean and inspect the flywheel. Refer to Engine Flywheel Cleaning and Inspection 53. Engine Flywheel Cleaning and Inspection. If the flywheel teeth are damaged, inspect the starter for proper operation. Replace the starter if you find excessive wear or damage to the starter drive.

Installation Procedure




1. Install the flywheel. Refer to Engine Flywheel Installation 130. Engine Flywheel Installation
2. Install the transmission. Refer to Transmission Replacement (FWD) Transmission Replacement (FWD)Transmission Replacement (AWD) Transmission Replacement (AWD).
