Front Fender Liner: Service and Repair

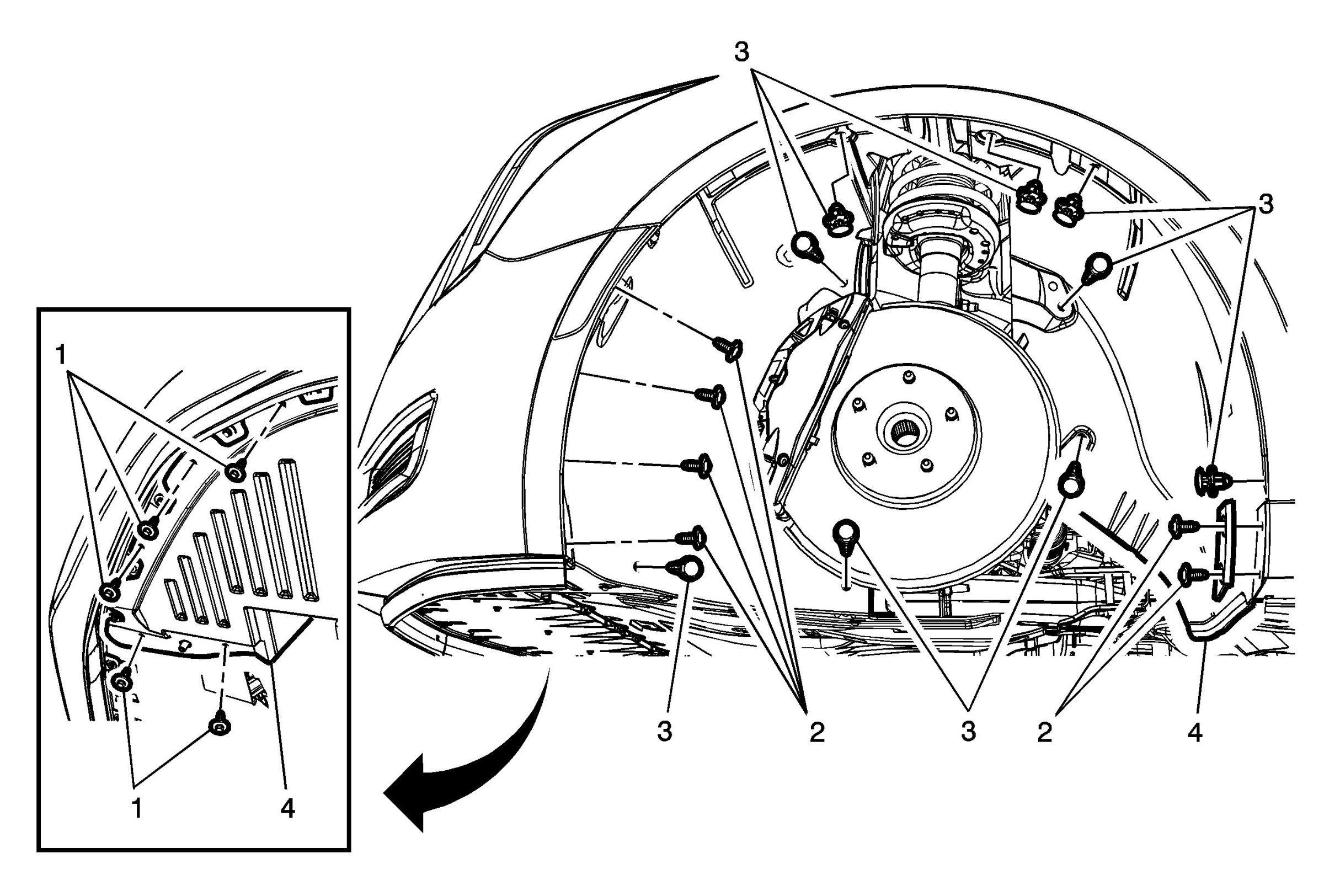

Front Wheelhouse Front Liner Replacement

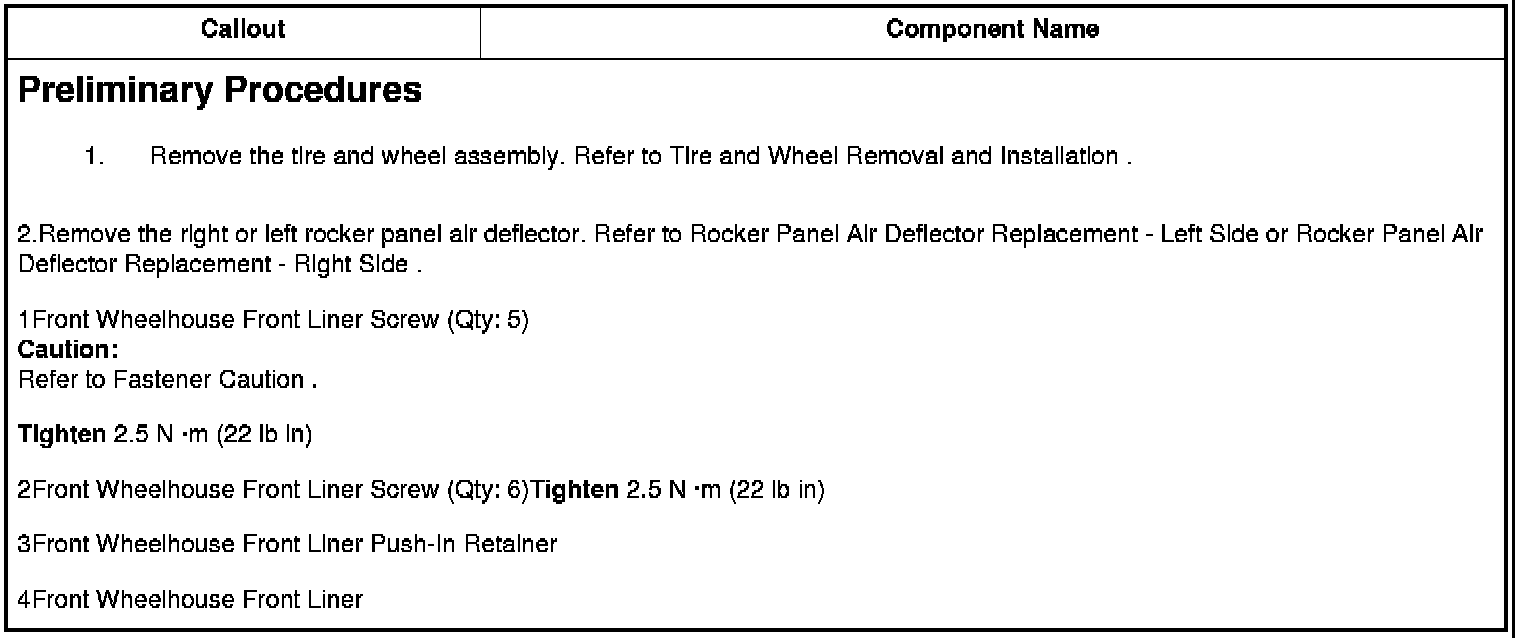

2.Remove the right or left rocker panel air deflector. Refer to Rocker Panel Air Deflector Replacement - Left Side or Rocker Panel Air Deflector Replacement - Right Side .

1Front Wheelhouse Front Liner Screw (Qty: 5)
Caution:Refer to Fastener Caution .
Tighten 2.5 N �m (22 lb in)

2Front Wheelhouse Front Liner Screw (Qty: 5)Tighten 2.5 N �m (22 lb in)

3Front Wheelhouse Front Liner Push-In Retainer (Qty: 9)

4Front Wheelhouse Front Liner
