Instrument Panel, Gauges and Warning Indicators: Service and Repair

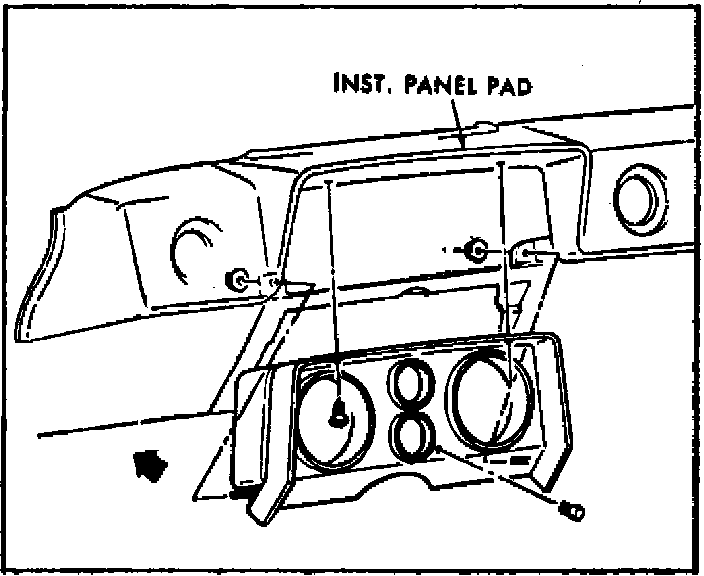

Fig. 13 Instrument cluster:

1. Disconnect battery ground cable.
2. Remove clock stem knob.
3. Remove cluster bezel and lens retaining screws, then the bezel and lens, Fig. 13.
4. Remove instrument cluster to instrument panel retaining nuts and pull cluster toward vehicle rear.
5. Disconnect all electrical connectors and speedometer cable from cluster, then remove cluster.
6. Reverse procedure to install.
