Lateral Stabilizer Rod: Service and Repair

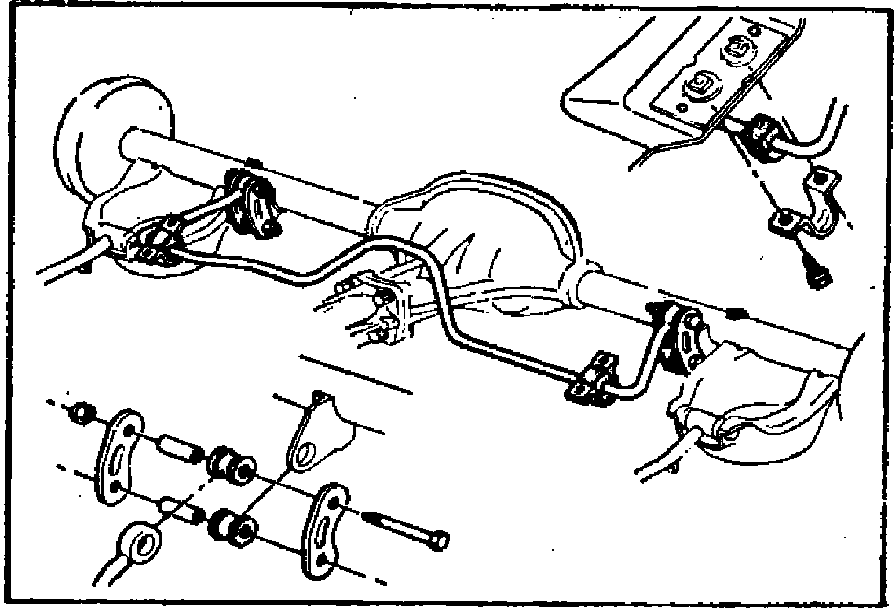

Fig. 2 Stabilizer bar installation:

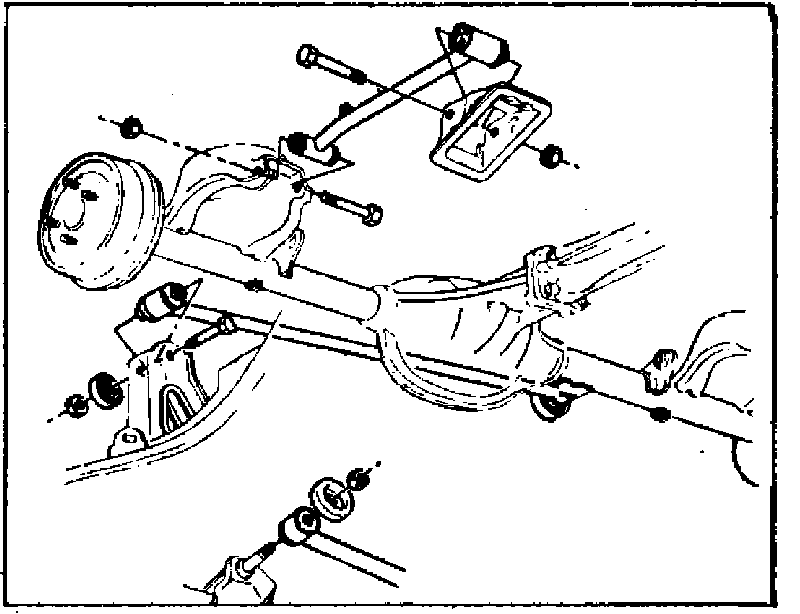

Fig. 3 Track rod and lower control arm:

1. Raise vehicle and support rear axle with a suitable jack.
2. Disconnect stabilizer bar, if equipped, Fig. 2.
3. Remove control arm front and rear attaching bolts and control arm, Fig. 3.
4. Remove attaching bolts and track rod.
5. Reverse procedure to install. Vehicle must be at curb height when tightening pivot bolts.
