Clutch: Adjustments

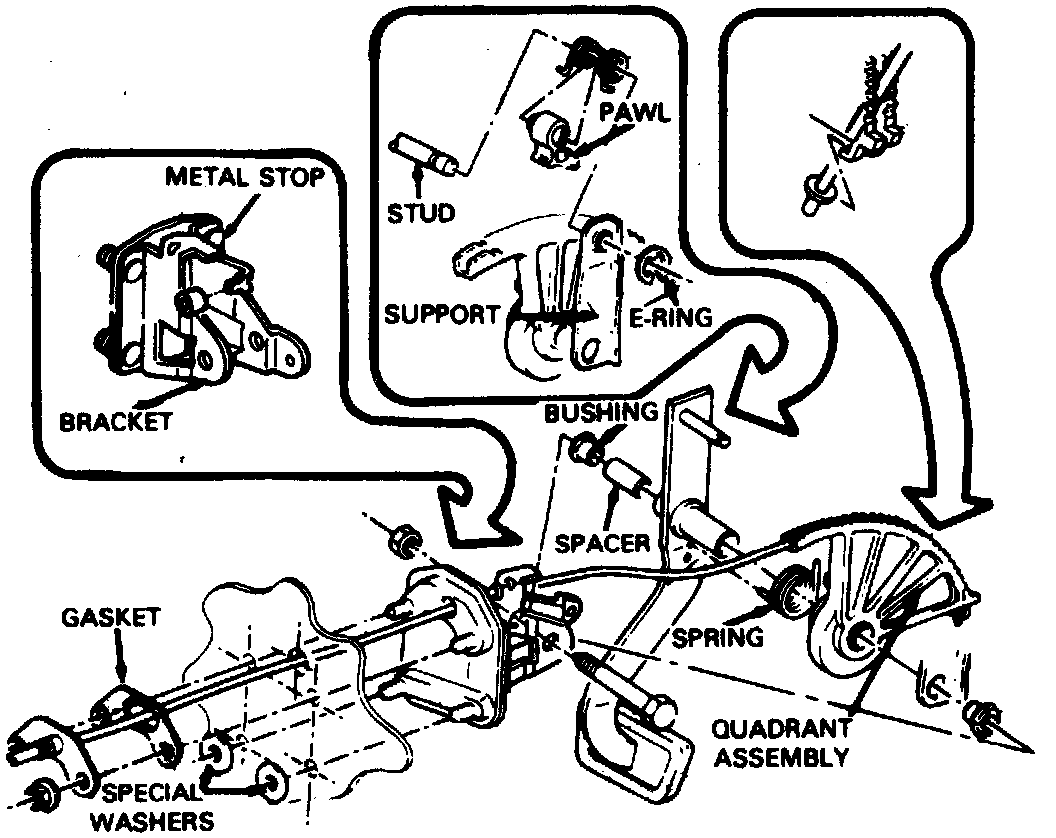

The clutch is automatically adjusted by a self-adjusting mechanism, see accompanying figure, mounted to the clutch pedal and bracket assembly. The cable is a fixed length cable and cannot be shortened or lengthened, however, the position of the cable can be changed by adjusting the position of the quadrant in relation to the clutch pedal. The self-adjusting mechanism monitors clutch cable tension and adjusts the quadrant position, changing the effective cable length.
