Planetary Gear

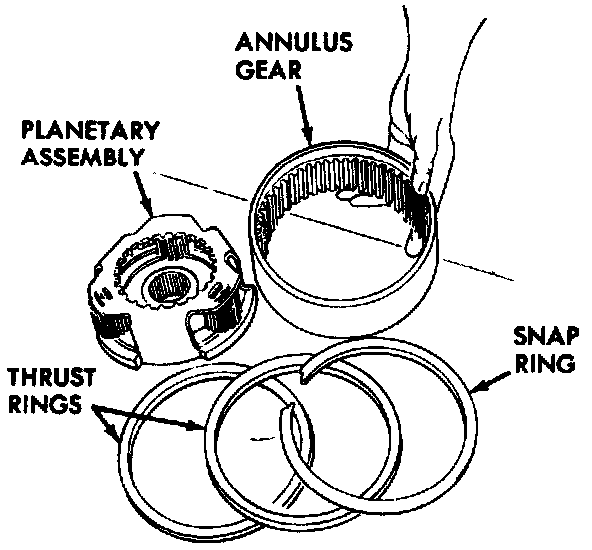

Disassembly1. Remove snap ring, then remove and discard outer thrust ring.
2. Separate planetary assembly from annulus gear, then remove and discard inner thrust ring.
Assembly1. Install a new inner thrust ring on planetary assembly, then install planetary assembly into annulus gear.
2. Install a new outer thrust ring and the snap ring in the planetary gear.
