A/T - 700R4 Improved Detent Lever
SIL 85-43SUBJECT: 700 R4
1982-1983 PASSENGER CARS & TRUCKS

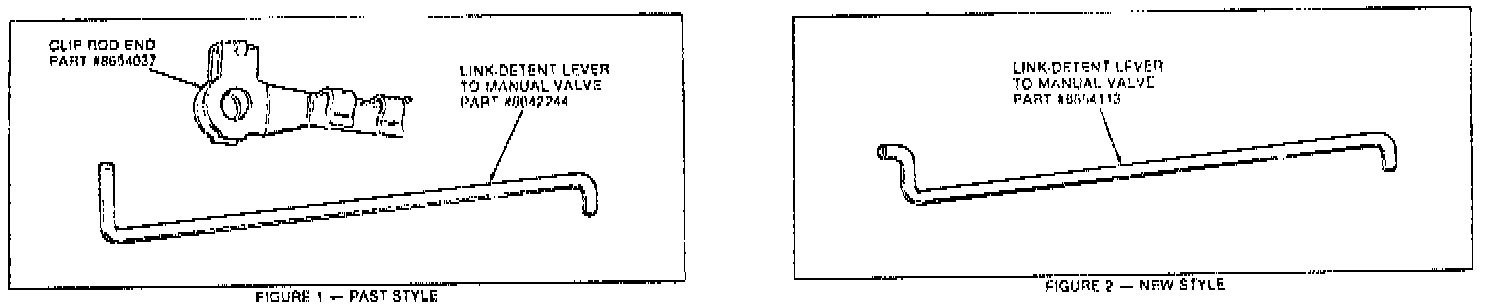

Beginning July 5, 1983 (Julian Date 186), all THM 700 R4 transmissions were built with a new detent lever to manual valve link (Figure 2). This change provides a new retention of the detent lever to manual valve link without the clip (Figure 1, past style).
When servicing any THM 700 R4 transmission that requires replacement of the past detent lever to manual valve link and rod end clip link to detent lever (Figure 1), order the new detent lever to manual valve link, (Figure 2) P/N 8654113.
