Camaro
Camaro
5 SPEED 77MM MANUAL TRANSMISSION
TORQUE SPECIFICATIONS
5 Speed 77mm Exploded View:
5 Speed 77mm Exploded view:

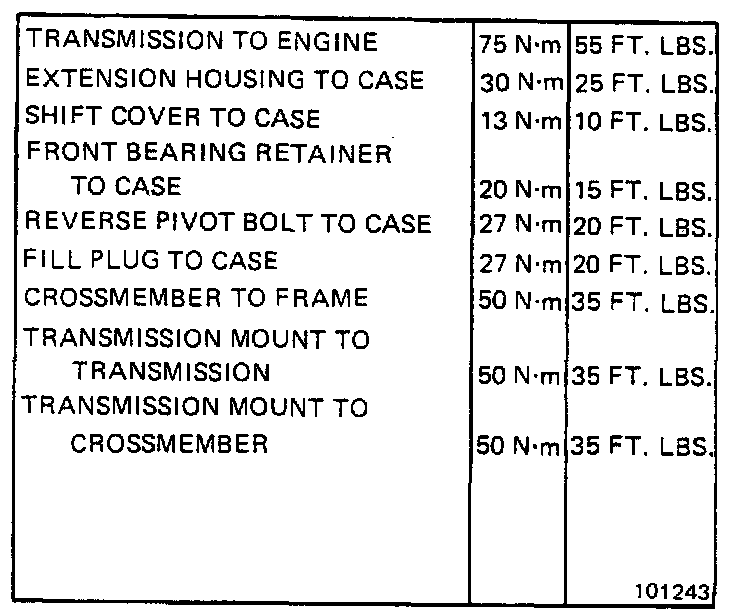

Torque Specifications Table:
