A/T - Shift Control Cable Installation Procedures
Number: 93-110-7ASection: 7A
Date: FEB. 1993
Corporate Bulletin No.: 377105
ASE No.: A2
Subject:
SHIFT CONTROL CABLE INSTALLATION PROCEDURES
Model and Year:
1984-93 CAMARO WITH 4L60 AUTOMATIC TRANSMISSION
TRANSAXLE APPLICATIONS:
1984-1993 HYDRA-MATIC 4L60
TRANSAXLE MODELS:
All
SUBJECT:
F-Car Shift Control Cable Installation Procedures
VEHICLE APPLICATIONS:
F-Car
This service bulletin is to emphasize the proper care required to remove or install the automatic transmission shift control cable per Section 7A of the applicable service manual.

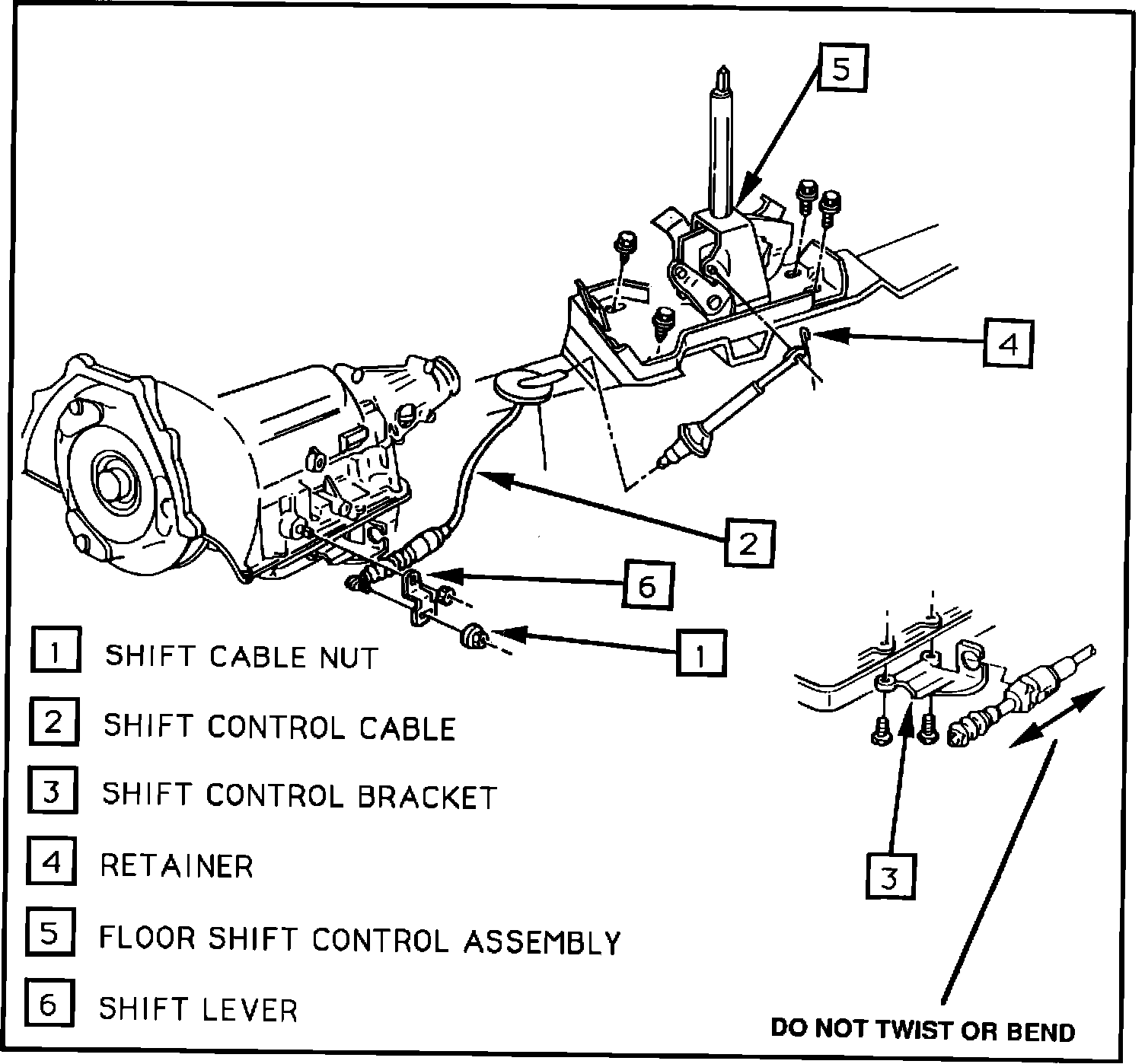

See figure.
When removing or installing the shift control cable (2) from the shift control bracket (3), do NOT bend or twist the molded end. The molded end must be inserted or pulled out straight from the shift control bracket (3).
Failure to follow the above precautions may damage the shift control cable (2).
After the installation of the shift control cable (2), inspect for any damage to the cable.
