Lower Control Arm Attachment - Car Wash Interference

Number: 84-22

Section: 3D (VI)

Date: Nov., 1983
Subject: LOWER CONTROL ARM BODY ATTACHMENT CAR WASH INTERFERENCE


Model and Year: 1984 CAMARO

LOWER CONTROL ARM:

TO: ALL CHEVROLET DEALERS

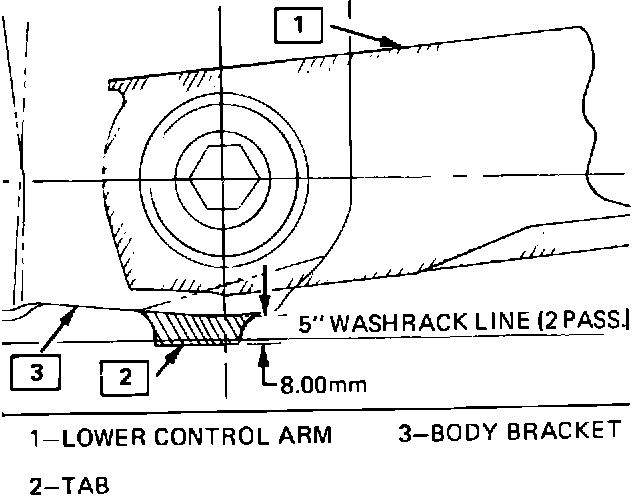

A condition has been noted on early production Camaro cars at the rear suspension lower control arm body bracket in which a tab was not trimmed off (see illustration). These tabs may cause slight contact on some washrack facilities. Should this condition occur, it is suggested the tab be filed or ground to the required level. Note that this tab occurs on all four body bracket flanges.

Anti-rust primer must be applied to the reworked edges to ensure protection against corrosion.
