Electrical Diagrams

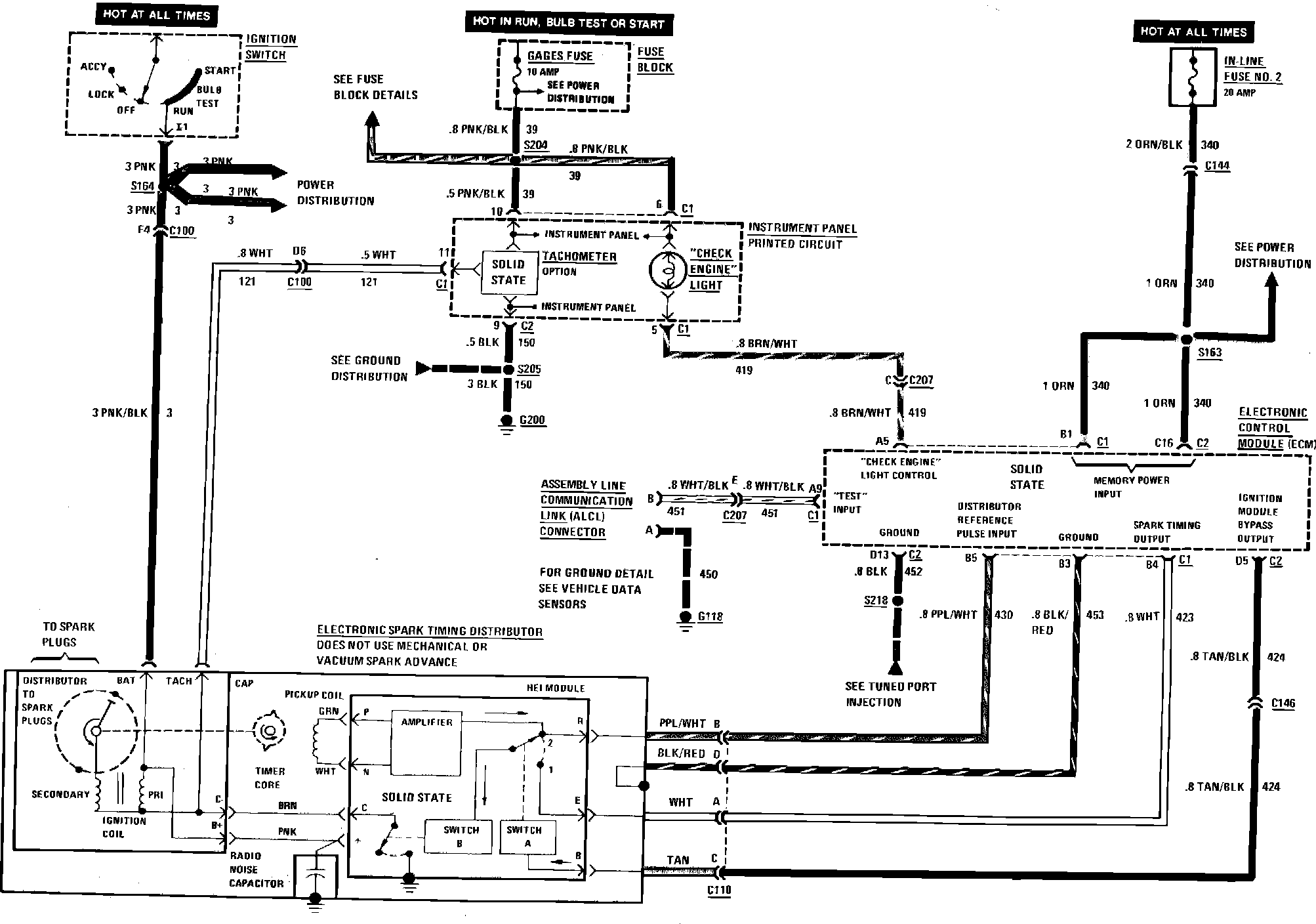

Tuned Port Fuel Injection (Check Engine Light, Ignition & Tachometer) Wiring Circuit:
