83 Camaro Diff
83 Camaro Diff
CLEARANCE AND DESIGN SPECIFICATIONS
Differential Identification:
Differential Overview:

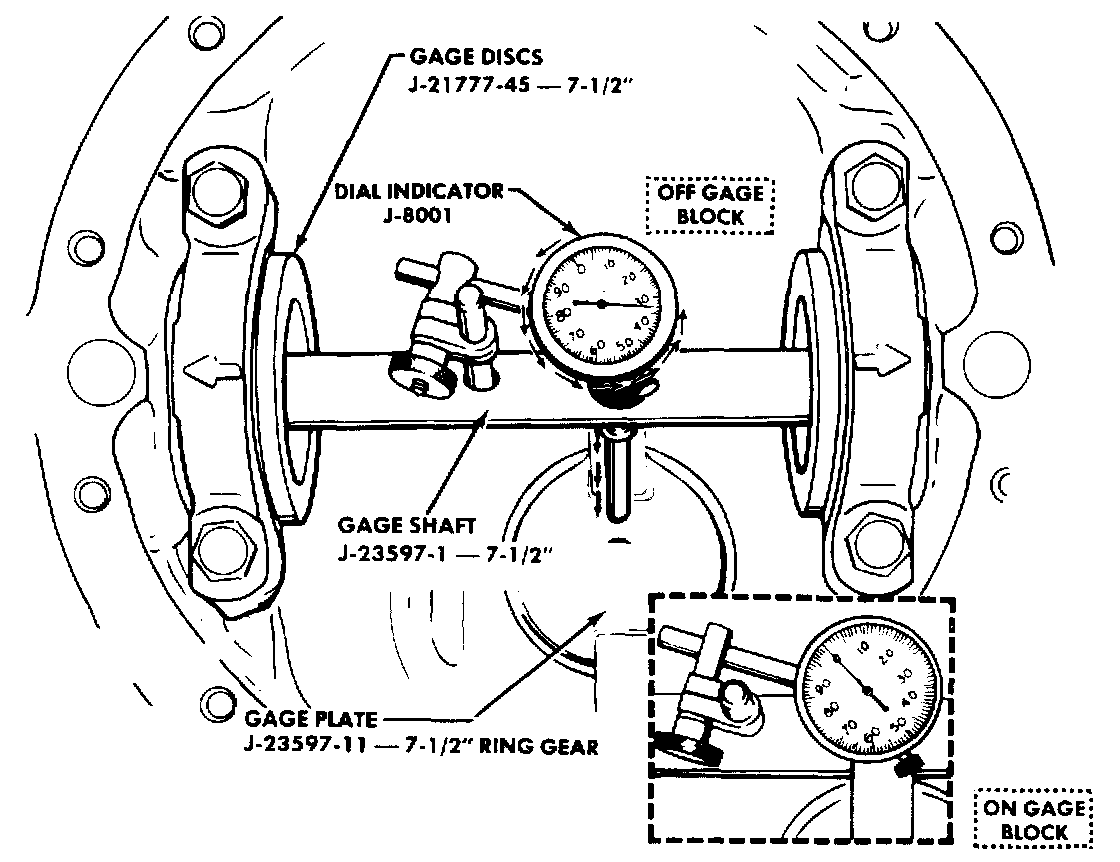

Pinion Depth Specifications:

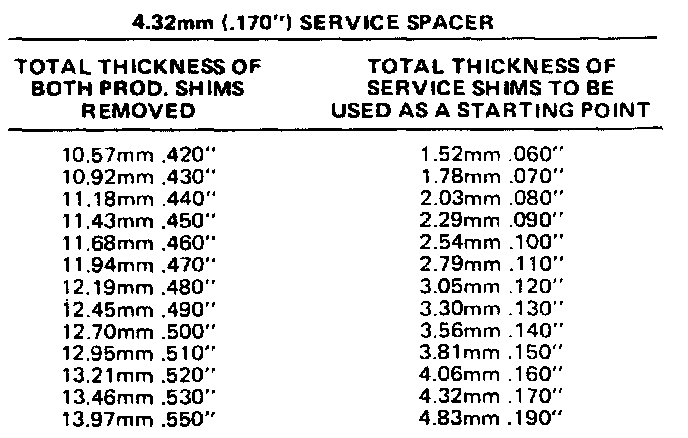

Differential Shim Chart:
