Engine Controls - Correction MAF Sensor Circuit

85-151
6E
NOV., 1985
Subject: CORRECTION TO WIRE DIAGRAM FOR

MASS AIR FLOW SENSOR CIRCUIT
Model and Year: 1985 CAMARO EQUIPPED WITH 2.8L

ENGINE AND PORT FUEL INJECTION (VIN CODE S)
TO: ALL CHEVROLET DEALERS

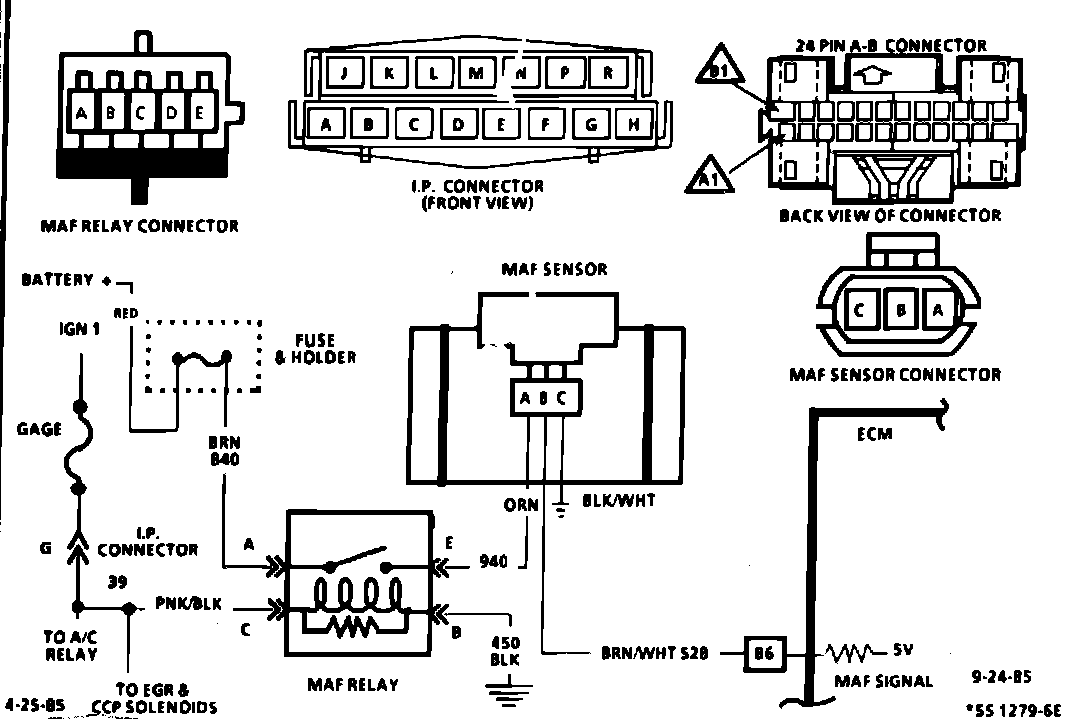

ILLUSTRATION:

The terminal identification of the Mass Air Flow relay, in the 1985 Camaro Shop Manual (ST-368-85), was printed in error. The following diagram shows the correct terminal identification. Please note this change in your copy of ST-368-85 on Page 6E3-44.
