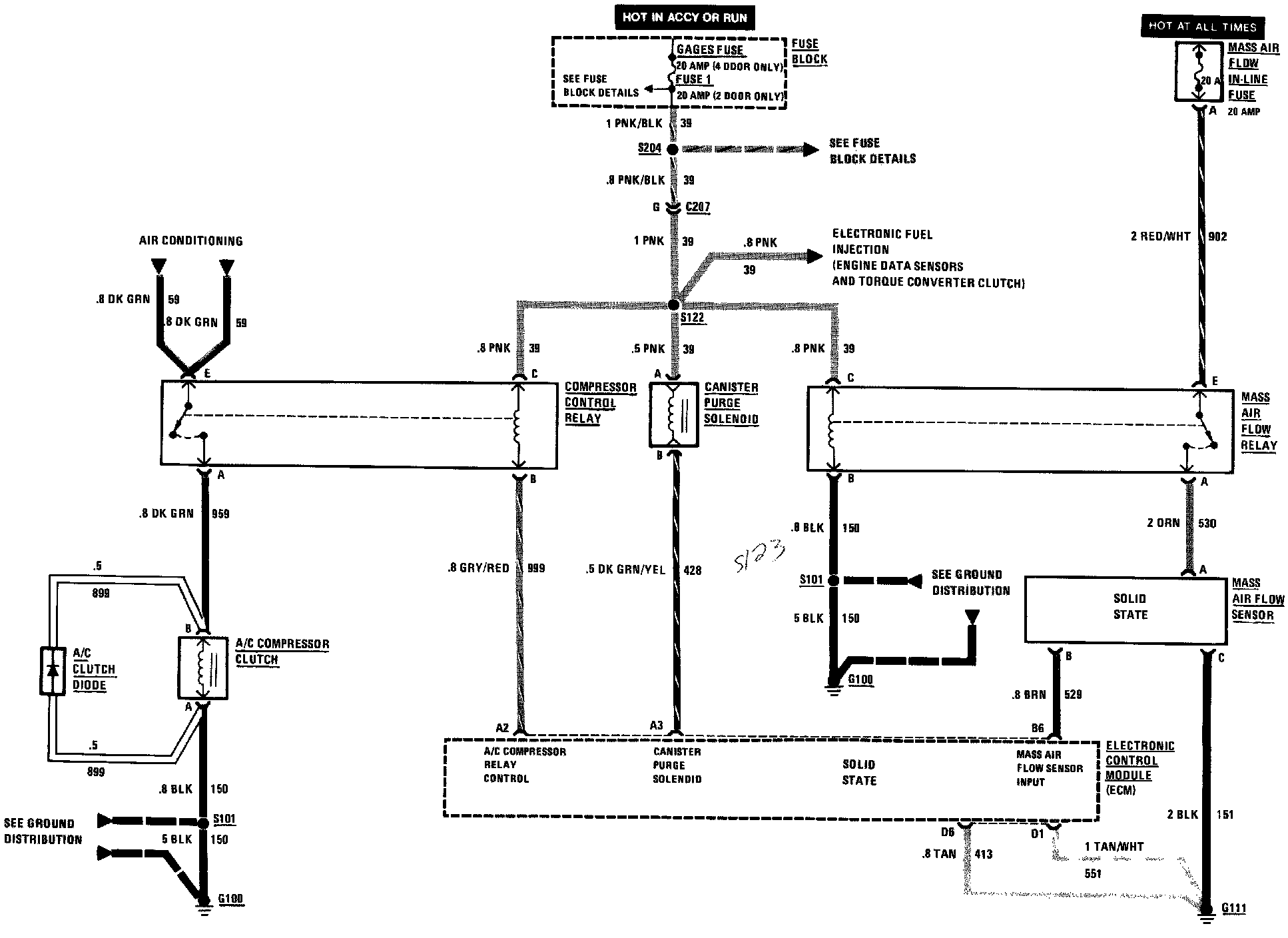

Emission Control, A/C Compressor Control & Air Flow Sensor
Emission Control, A/C Compressor Control & Air Flow Sensor
