Idle Speed/Throttle Actuator - Electronic: Locations

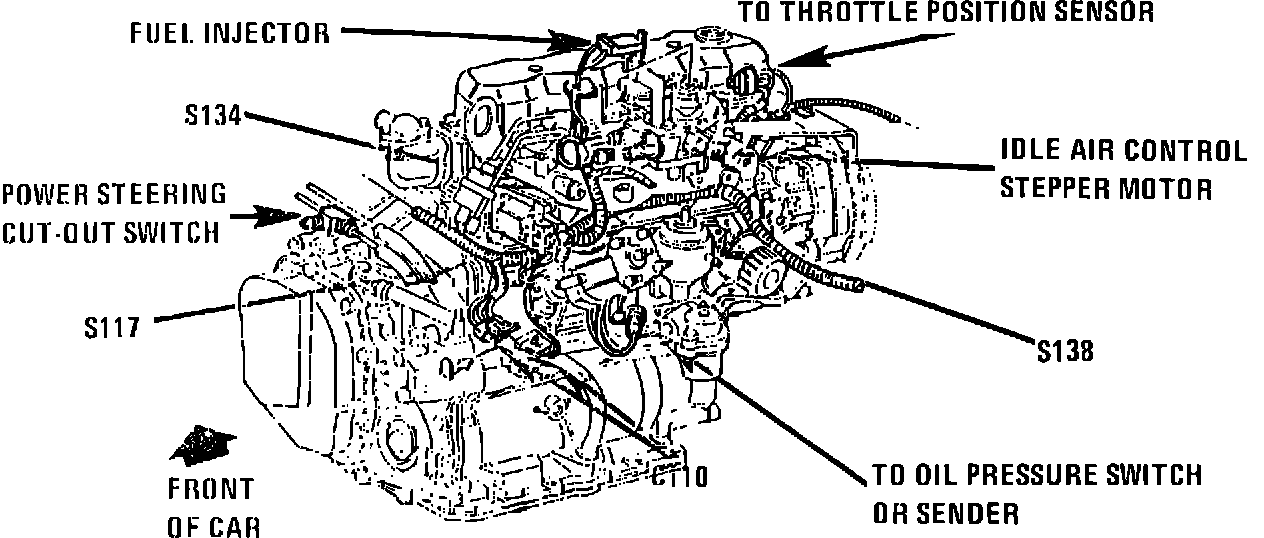

Rear Of Engine.:




Behind LH Side Of Radiator, Near Battery

Applicable to: 1982-83 Celebrity w/4-151


LH Rear Of Engine.:




Behind LH Side Of Radiator, Near Battery

Applicable to: 1984-85 Celebrity w/4-151
