Emission Control Systems: Locations

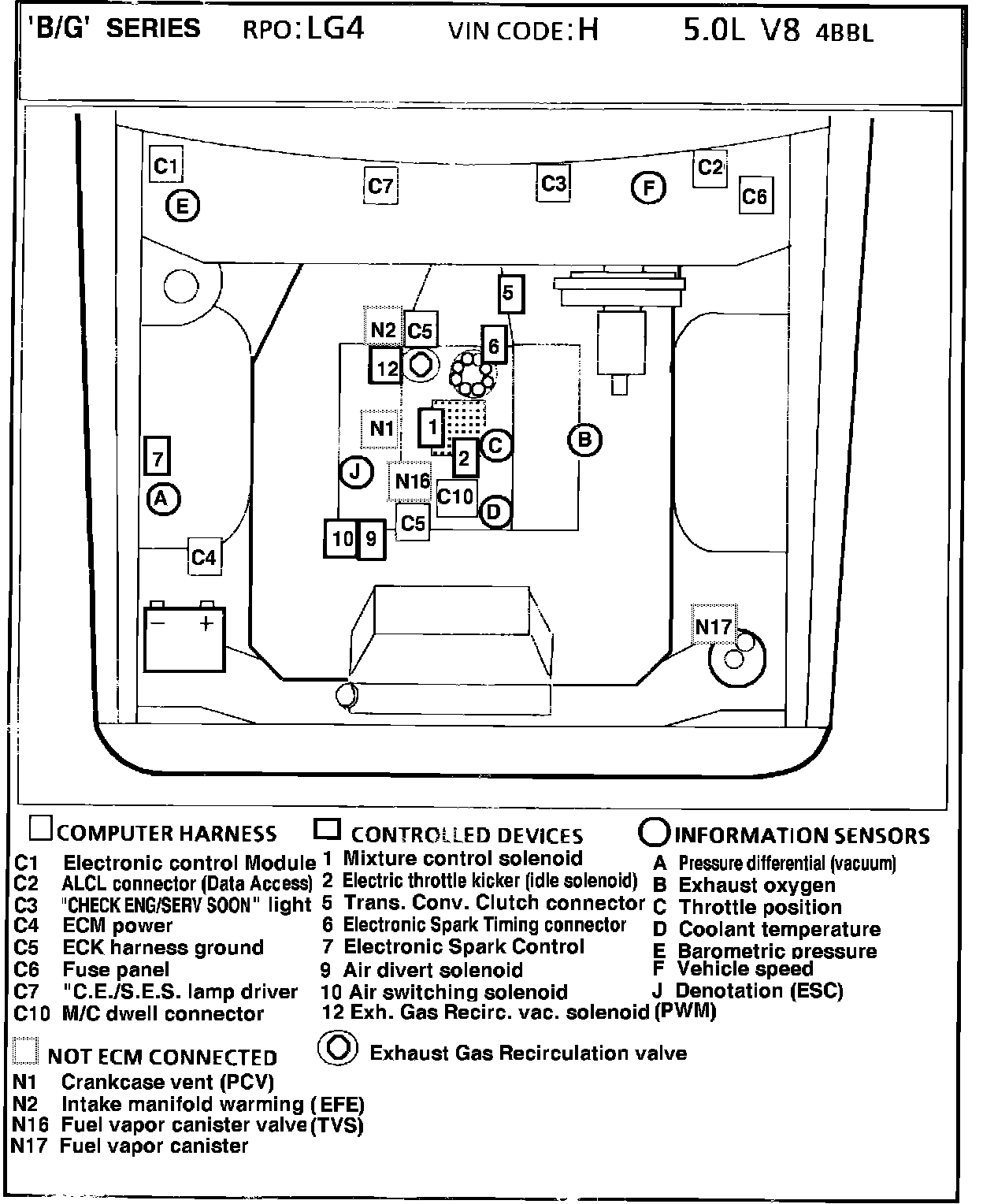

Fig. 107 Emission components locations. 1985 V8-305 Caballero & El Camino:
