Home >> Chevrolet >> 1985 >> G 10 Van V8-379 6.2L DSL >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Cold Advance Solenoid >> Testing and Inspection

Cold Advance Solenoid: Testing and Inspection

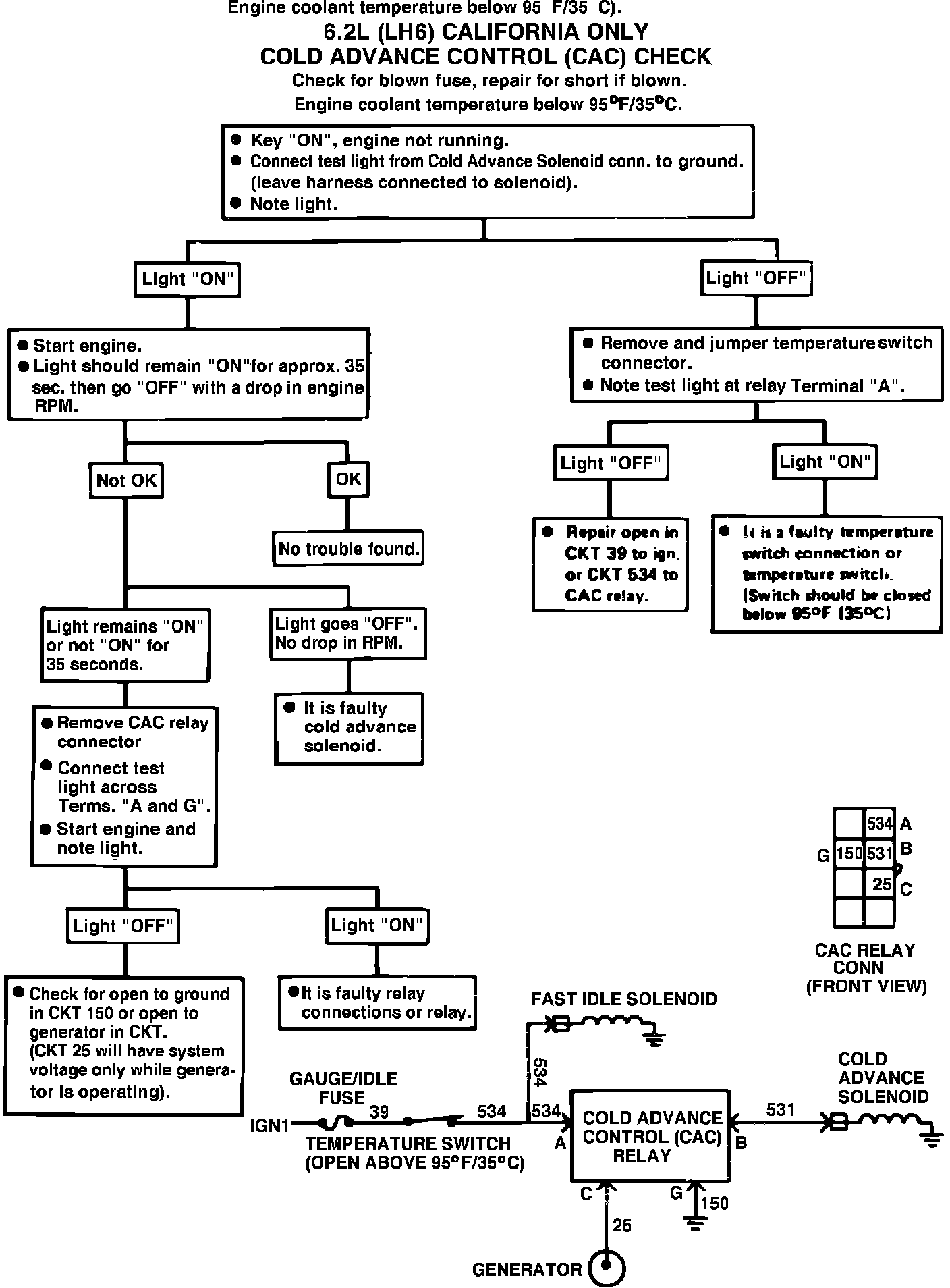

Fig. 36 Cold Advance Control (CAC) check. 1985:
