Emission Control Systems: Locations

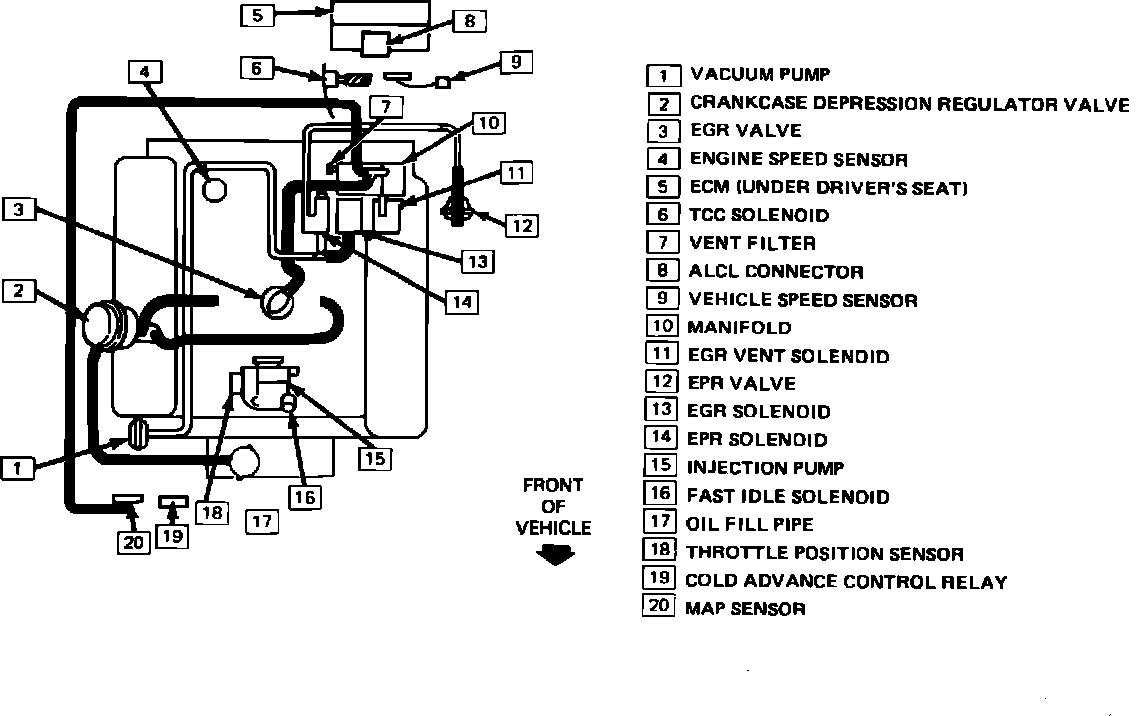

Fig. 118 Emission components locations. 1985 V8-379 Diesel G Series light duty emissions Calif.:
