Jet
>>
Federal Models
Federal Models

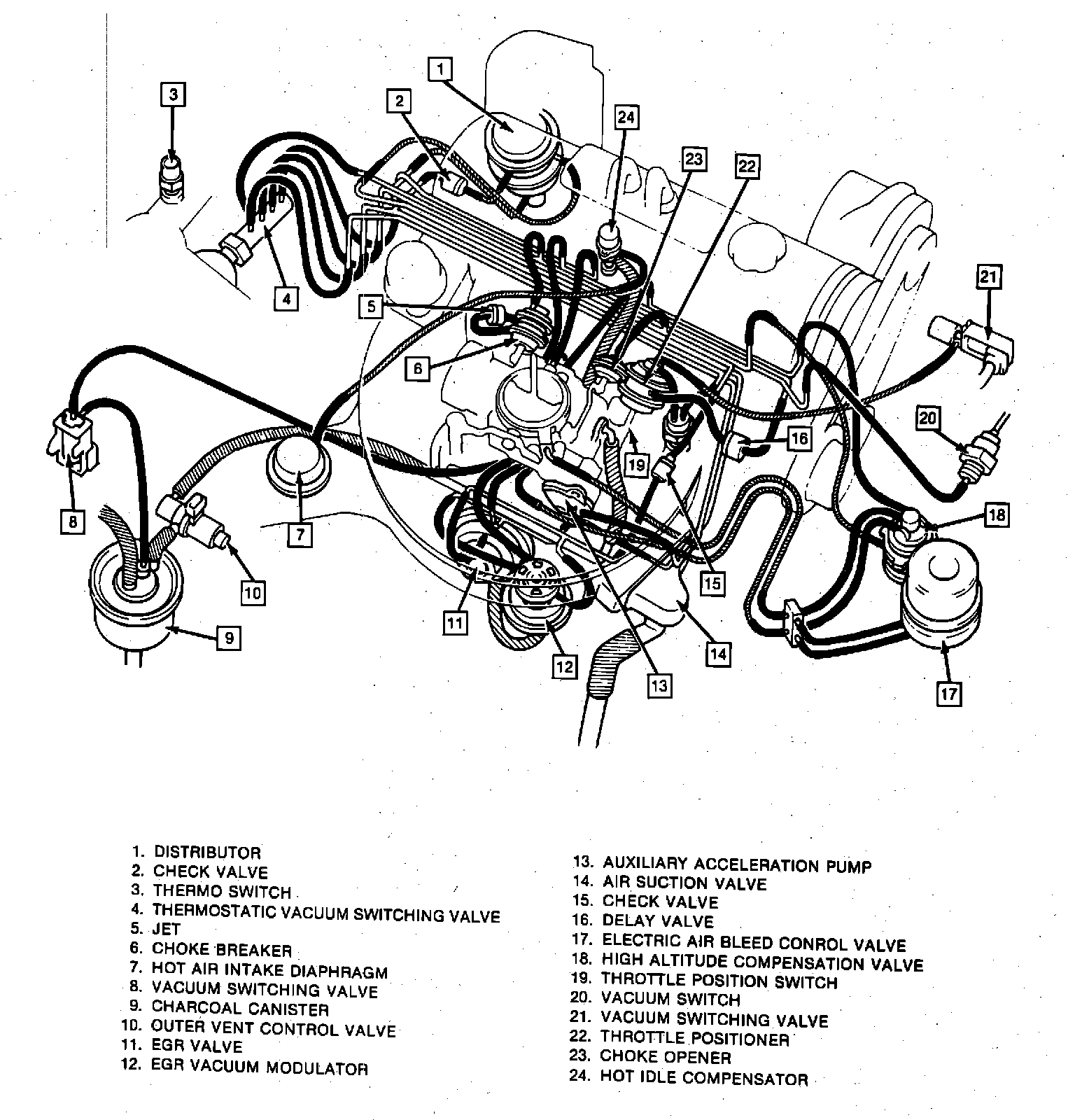

Top Of Engine:
Vacuum Hose To EGR Modulator
Applicable to: Except California Models
