Models W/4-98/1.6L Engines

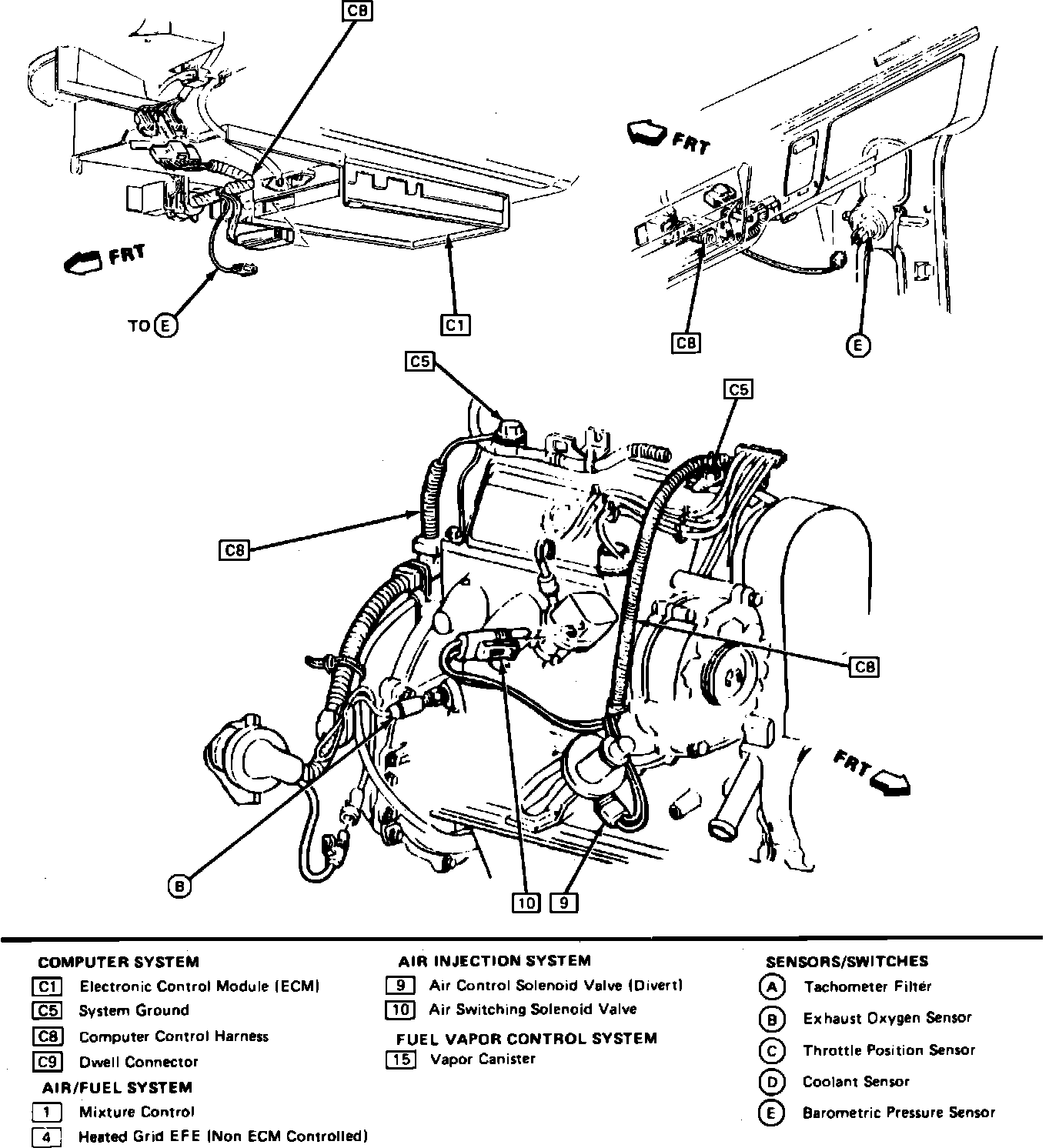

Fig. 34a Emission Component Location. 1985-86 Models W/4-98/1.6L Engines. (Part 1 of 2):

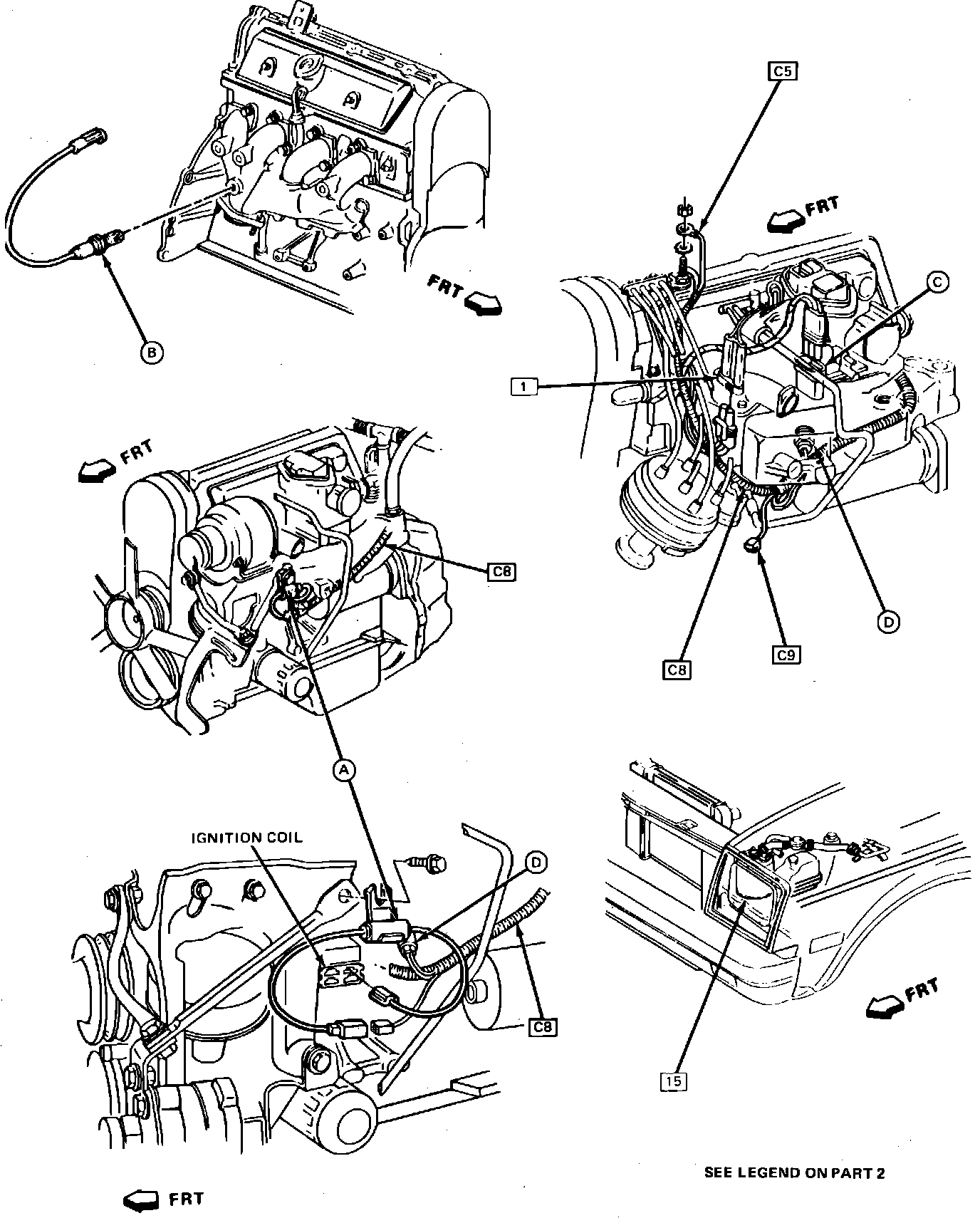

Fig. 34b Emission Component Location. 1985-86 Models W/4-98/1.6L Engines. (Part 2 of 2):
