A/C Air & Temp Control Vacuum & Wiring Circuit
A/C Air & Temp Control Vacuum & Wiring Circuit

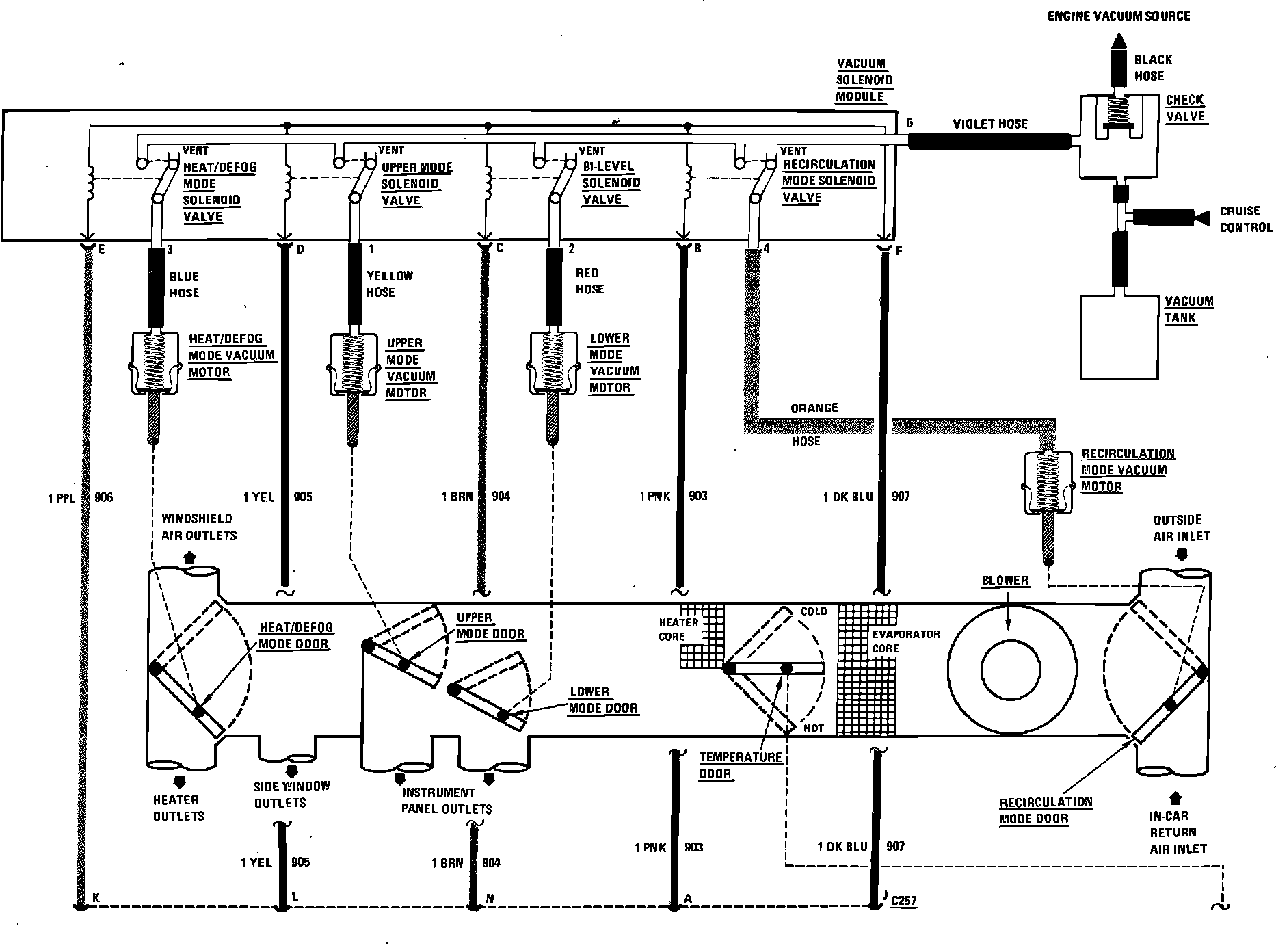

A/C Air Distribution & Temperature Control Vacuum & Wiring Circuit. W/Electronic A/C:
