Home >> Chevrolet >> 1986 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Testing and Inspection >> Component Tests and General Diagnostics >> Isolation Tests >> Table 2

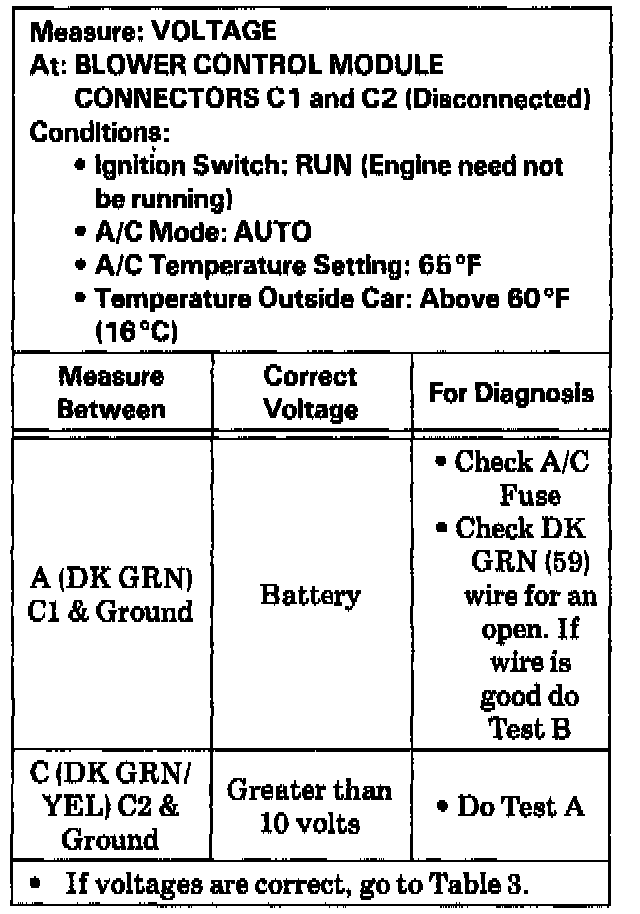

Table 2

Isolation Test - Table 2:
