Spark Control

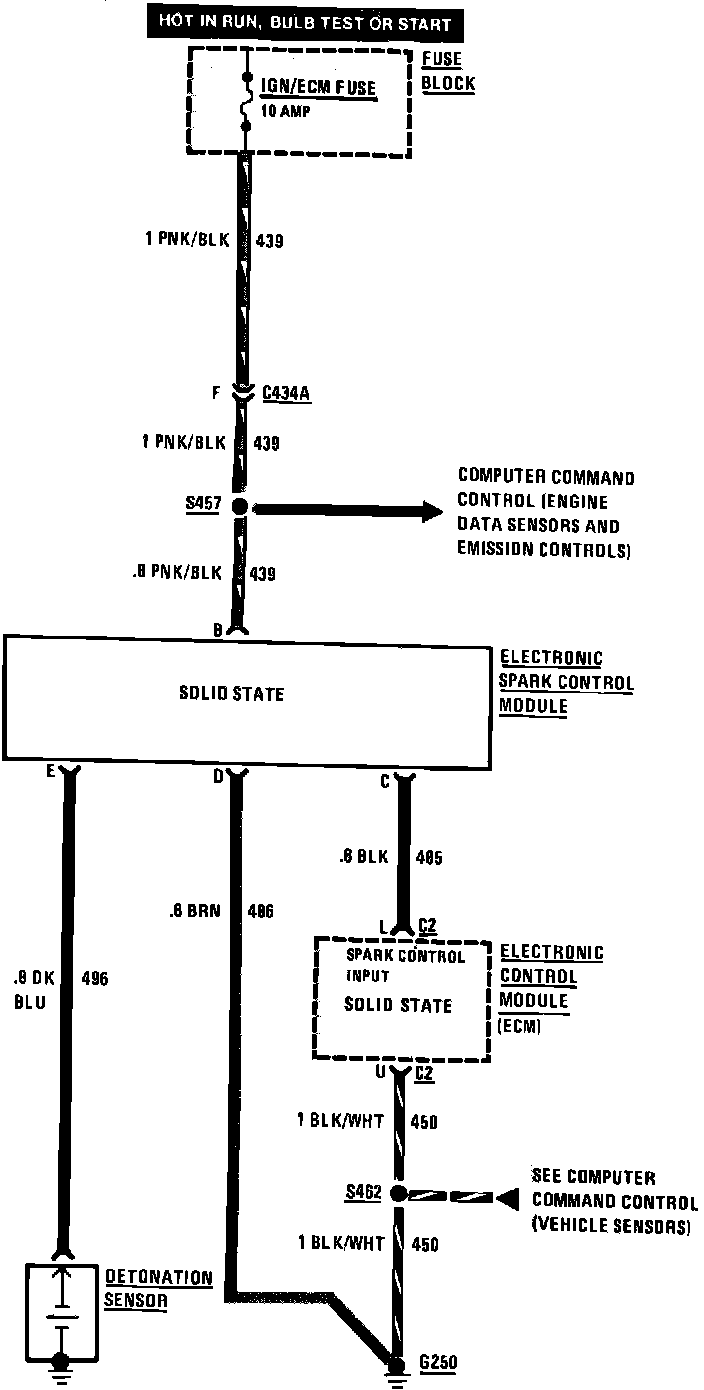

Computer Command Control Wiring Circuit (Spark Control):



Fig. 62 Computer Command Control Wiring Circuit (Spark Control). 8 Cylinder:
