Mono System & Rear Speakers
Mono System & Rear Speakers
Radio Wiring Circuit (With Mono System & Rear Speakers):

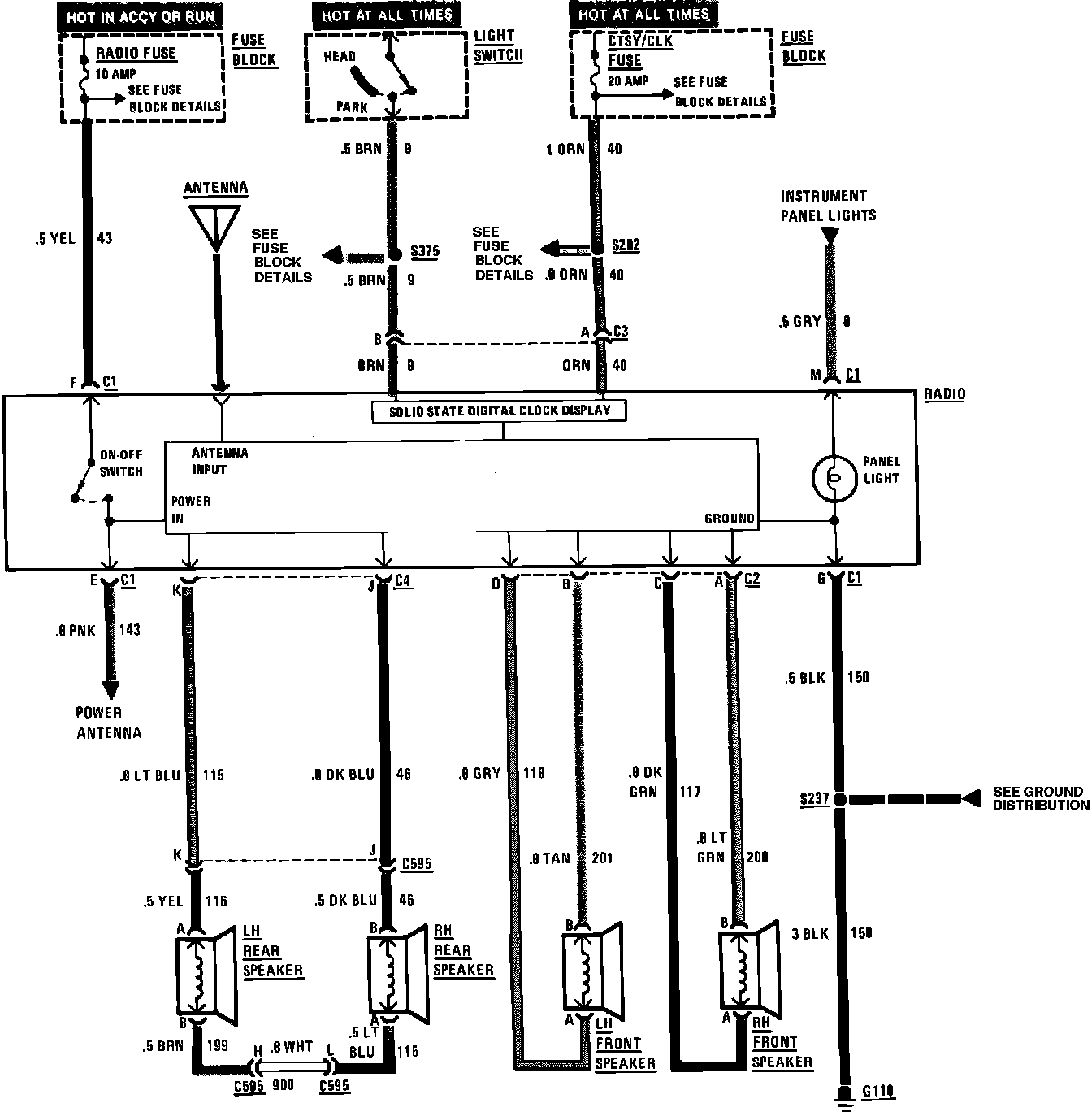

Fig. 197 Radio Wiring Circuit. With Mono System & Rear Speakers:
