Home >> Chevrolet >> 1986 >> EL Camino V8-305 5.0L >> Repair and Diagnosis >> Lighting and Horns >> Backup Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

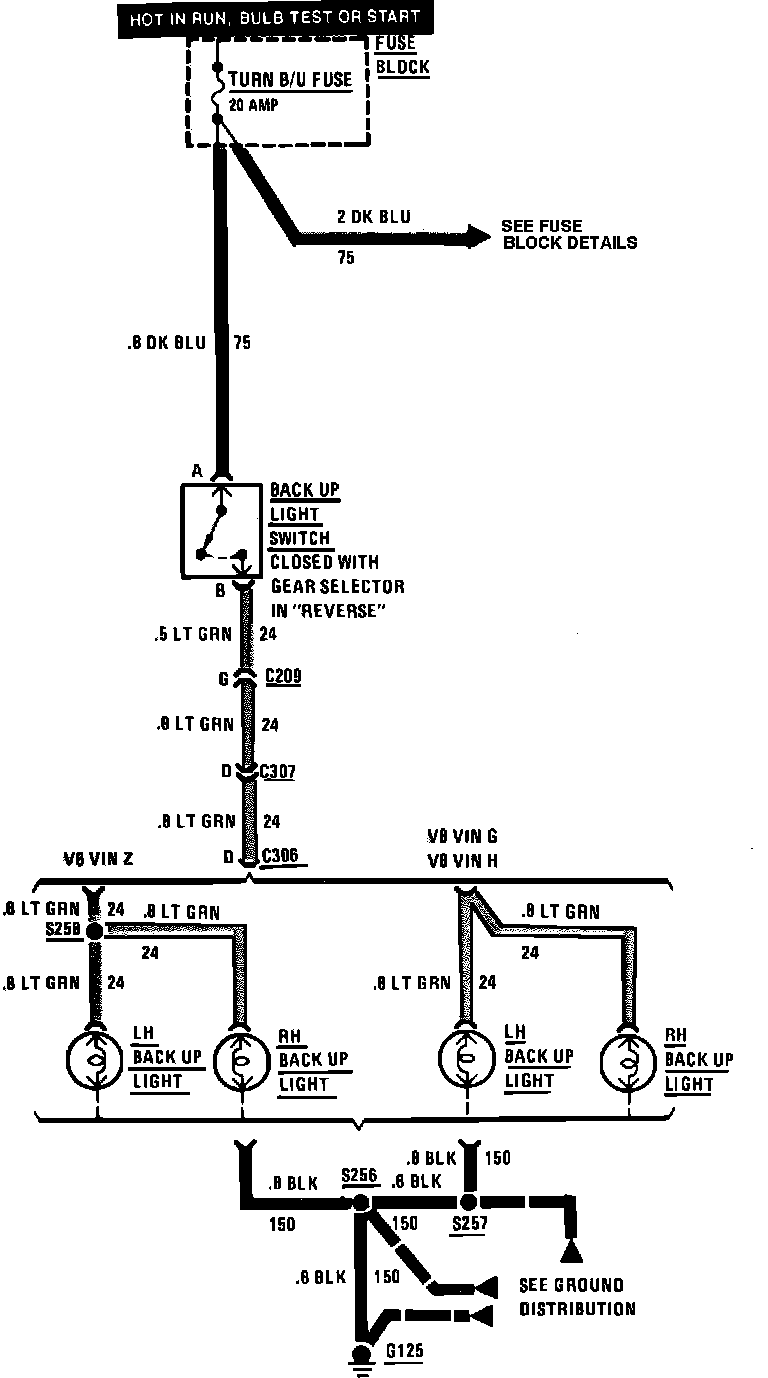

Back-Up Lamp Wiring Circuit:



Fig. 16 Back-Up Lamp Wiring Circuit:
