Hazard, Park, Stop & Turn Lamp Wiring Circuit

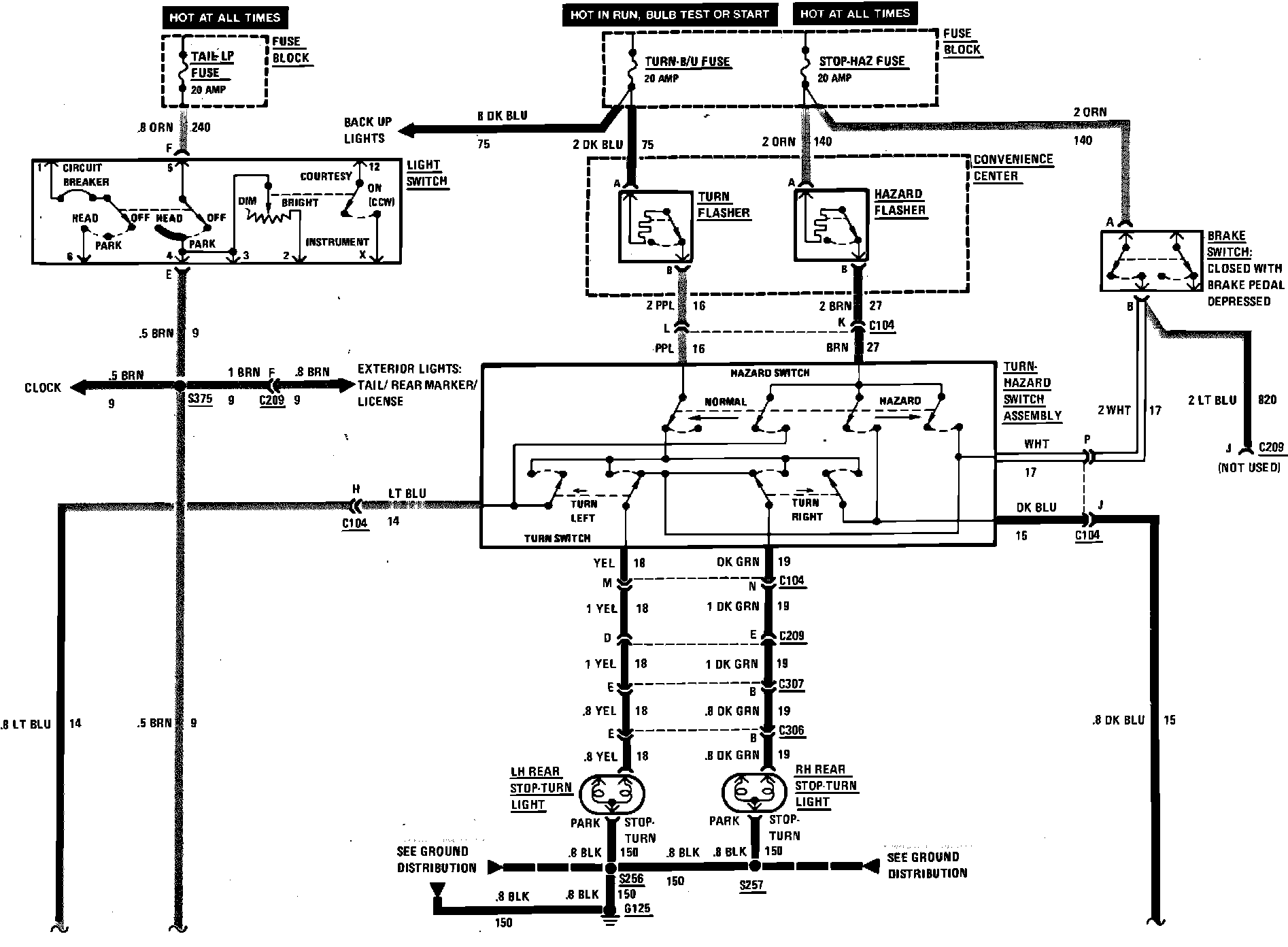

Front & Rear Marker, Hazard, Park, Stop & Turn Lamp Wiring Circuit:



Front & Rear Marker, Hazard, Park, Stop & Turn Lamp Wiring Circuit:
