Home
>>
Chevrolet
>>
1986
>>
Nova/Chevy II L4-1600cc 4ALC Nummi
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Distributor, Ignition
>>
California Models
California Models

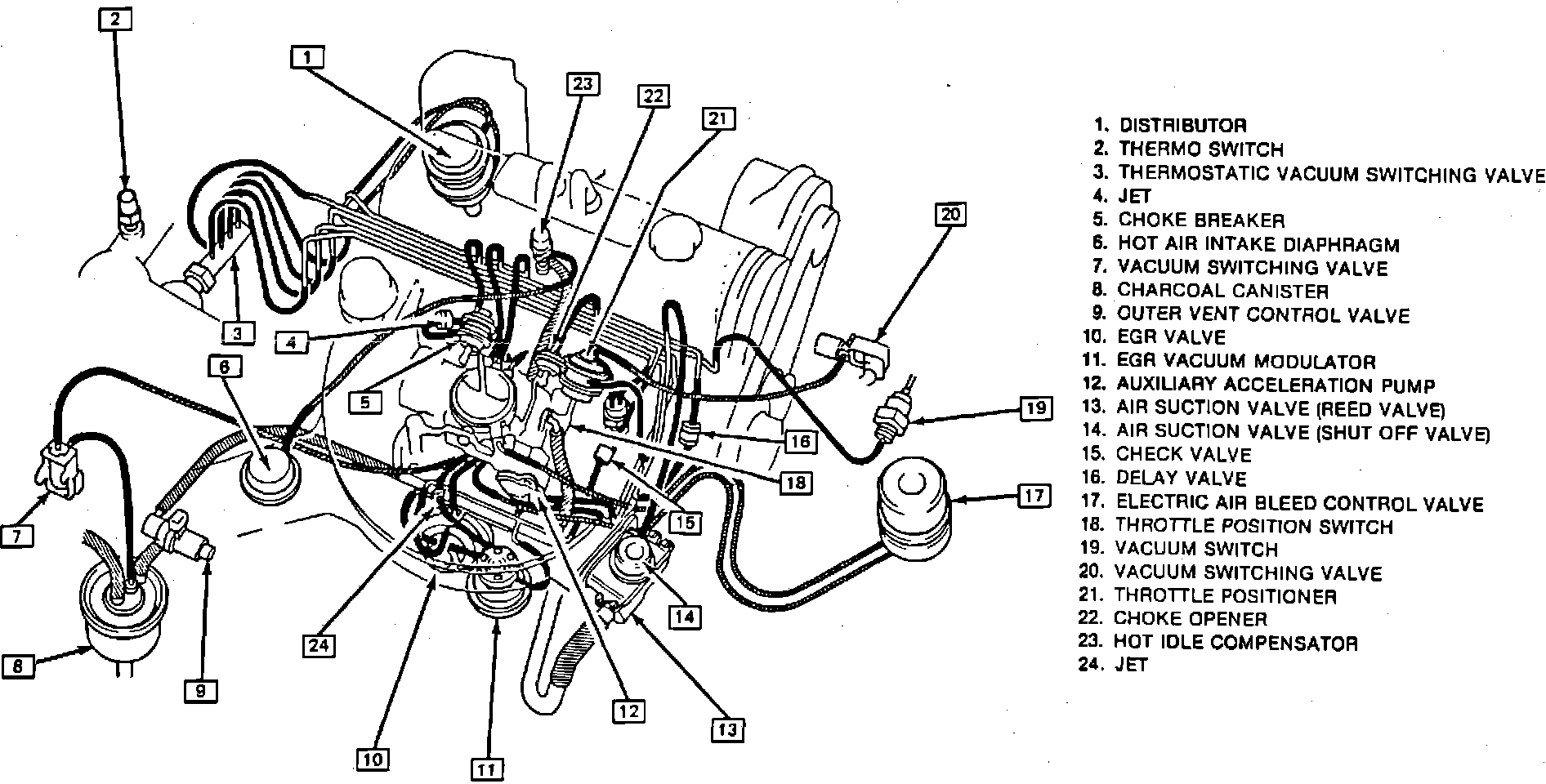

Component locations (Calif.):
Top Of Engine
