Coolant Temperature Sensor/Switch (For Computer)
>>
Locations
>>

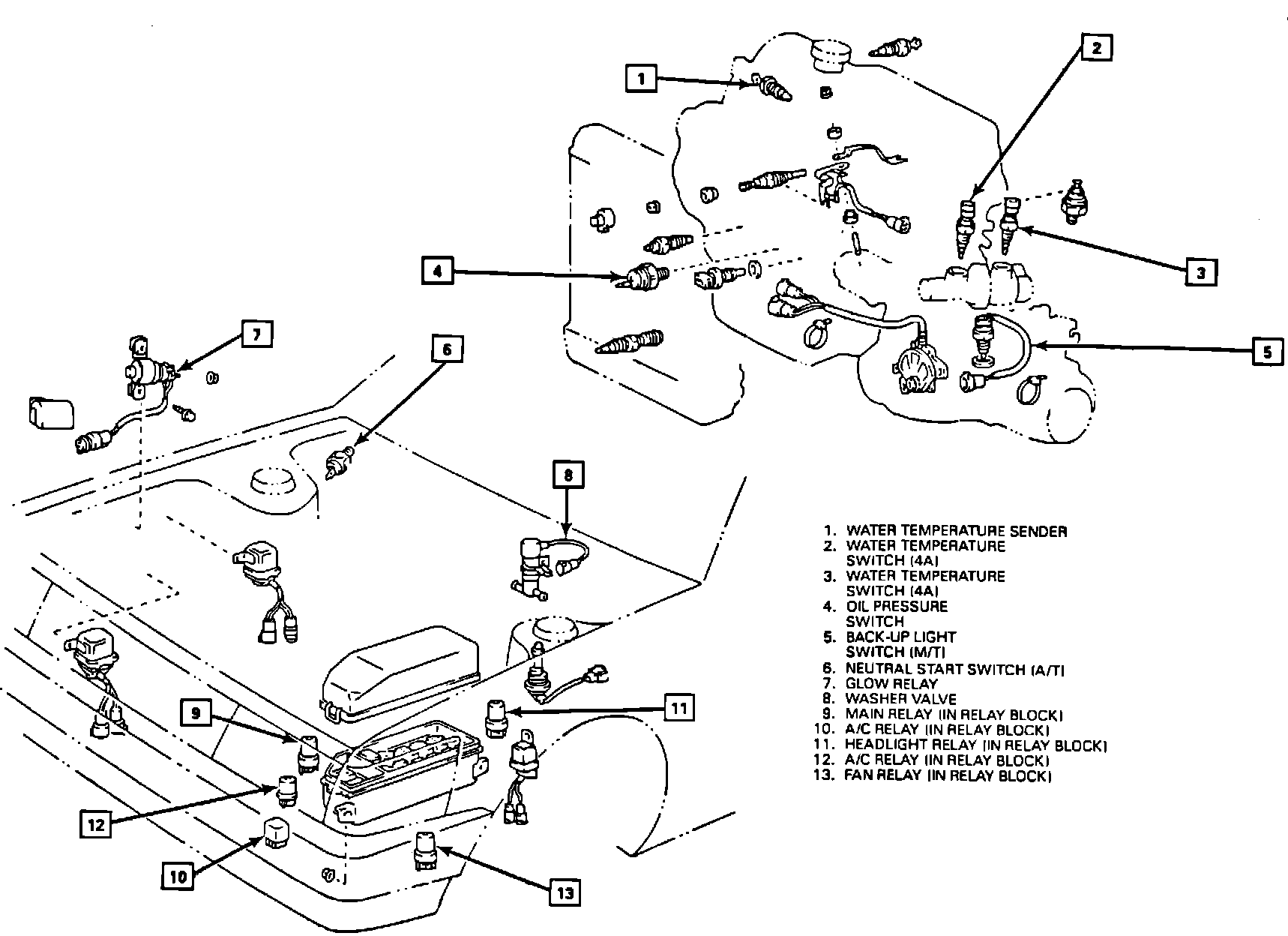

Water Temperature Switch
Water Temperature Switch
Engine compartment switches & relays:
Transmission Side Of Engine
